31 - HEAT INSULATION - 31.1 - HEATSHIELDS - POWERTRAIN MOUNTED of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 31 - HEAT INSULATION - 31.1 - HEATSHIELDS - POWERTRAIN MOUNTED

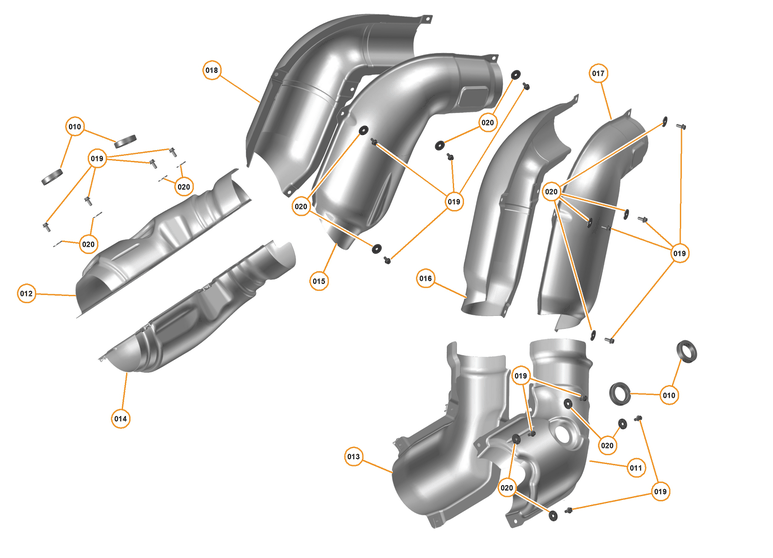

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11E0092CP	Heatshield - Lambda Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11E0149CP	Heatshield - Link Pipe - Lower - Outer - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11E0150CP	Heatshield - Link Pipe - Lower - Outer - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11E0151CP	Heatshield - Link Pipe - Lower - Inner - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11E0152CP	Heatshield - Link Pipe - Lower - Inner - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12E0028CP	HEATSHIELD - LINK PIPE - UPPER - INNER - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12E0029CP	HEATSHIELD - LINK PIPE - UPPER - INNER - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12E0071CP	HEATSHIELD - LINK PIPE - UPPER - OUTER - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12E0072CP	HEATSHIELD - LINK PIPE - UPPER - OUTER - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC063	Washer - M5x20x1	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11HA001CP	Chmney Nut - M5 - Exhaust Heatshield	11HA001CP Chmney Nut - M5 - Exhaust Heatshield Row ID: ID_BEEA0112_11HA001CP_ContPgHS;	-	18	Enquire
010	11E0092CP	Heatshield - Lambda Sensor	11E0092CP Heatshield - Lambda Sensor Row ID: ID_BEEA0101_11E0092CP_ContPgHS;	-	4	Enquire
011	11E0149CP	Heatshield - Link Pipe - Lower - Outer - LH	11E0149CP Heatshield - Link Pipe - Lower - Outer - LH Row ID: ID_BEEA0102_11E0149CP_ContPgHS;	-	1	Enquire
012	11E0150CP	Heatshield - Link Pipe - Lower - Outer - RH	11E0150CP Heatshield - Link Pipe - Lower - Outer - RH Row ID: ID_BEEA0103_11E0150CP_ContPgHS;	-	1	Enquire
013	11E0151CP	Heatshield - Link Pipe - Lower - Inner - LH	11E0151CP Heatshield - Link Pipe - Lower - Inner - LH Row ID: ID_BEEA0104_11E0151CP_ContPgHS;	-	1	Enquire
014	11E0152CP	Heatshield - Link Pipe - Lower - Inner - RH	11E0152CP Heatshield - Link Pipe - Lower - Inner - RH Row ID: ID_BEEA0105_11E0152CP_ContPgHS;	-	1	Enquire
015	12E0028CP	HEATSHIELD - LINK PIPE - UPPER - INNER - RH	12E0028CP HEATSHIELD - LINK PIPE - UPPER - INNER - RH Row ID: ID_BEEA0106_12E0028CP_ContPgHS;	-	1	Enquire
016	12E0029CP	HEATSHIELD - LINK PIPE - UPPER - INNER - LH	12E0029CP HEATSHIELD - LINK PIPE - UPPER - INNER - LH Row ID: ID_BEEA0107_12E0029CP_ContPgHS;	-	1	Enquire
017	12E0071CP	HEATSHIELD - LINK PIPE - UPPER - OUTER - LH	12E0071CP HEATSHIELD - LINK PIPE - UPPER - OUTER - LH Row ID: ID_BEEA0108_12E0071CP_ContPgHS;	-	1	Enquire
018	12E0072CP	HEATSHIELD - LINK PIPE - UPPER - OUTER - RH	12E0072CP HEATSHIELD - LINK PIPE - UPPER - OUTER - RH Row ID: ID_BEEA0109_12E0072CP_ContPgHS;	-	1	Enquire
019	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID_BEEA0110_00RA064_ContPgHS;	-	16	Enquire
020	00RC063	Washer - M5x20x1	00RC063 Washer - M5x20x1 Row ID: ID_BEEA0111_00RC063_ContPgHS;	-	16	Enquire
