32 - ENGINE - 32.9 - ELECTRICAL SYSTEM of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 32 - ENGINE - 32.9 - ELECTRICAL SYSTEM

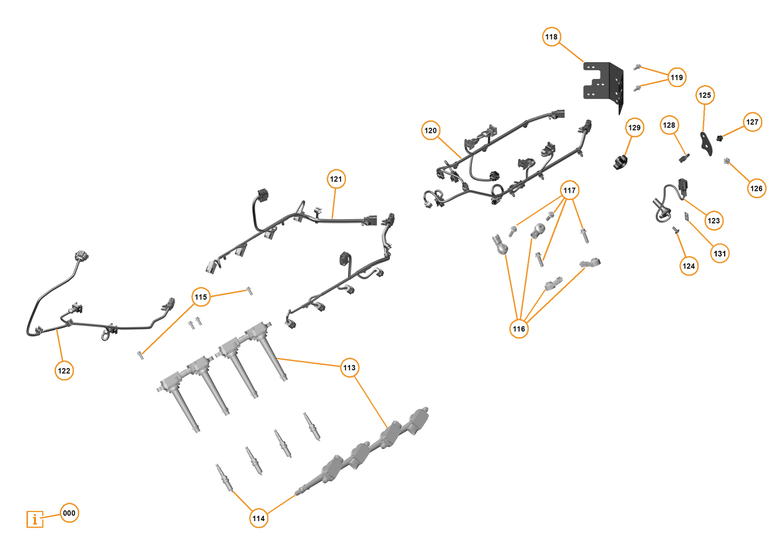

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11F1019CP	CONNCTR HOUSING-IG24COIL-ENGIN	$55.36	To Order
	11F1035CP	Repair Flylead - Ignition Coil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0385CP	Ignition Coil - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0271CP	Spark Plug - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1793CP	BOLT - M6X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F1894CP	Sensor - Engine - Knock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0809CP	Bolt - M8x30 - Engine - Thermostat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0817CP	ENGINE-BRACKET HAR24SS SUPPORT	$92.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0822CP	Bolt - M6x16 - Engine	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0743CP	Harness - Engine Link - Vee	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0744CP	ENGINE LINK HARNESS INJECTORS	$866.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11F0745CP	Harness - Engine Link - Inlet Manifold	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0725CP	SENSOR - ENGINE - CRANK POSITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0830CP	Bracket - Crankchaft Position Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0757CP	CONNECTOR MOUNT - TYCO = 368260	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0761CP	BOLT - M8X8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RL022	EDGE CLIP - 202X4.6MM - INLINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12F0726CP	SPACER - CRANK POSITION SENSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	11F1019CP	CONNCTR HOUSING-IG24COIL-ENGIN	11F1019CP CONNCTR HOUSING-IG24COIL-ENGIN Row ID: ID_BEFA01B5_11F1019CP_ContPgHS;	$55.36	1
000	11F1035CP	Repair Flylead - Ignition Coil	11F1035CP Repair Flylead - Ignition Coil Row ID: ID_BEFA01B4_11F1035CP_ContPgHS;	-	1	Enquire
113	11F0385CP	Ignition Coil - Engine	11F0385CP Ignition Coil - Engine Row ID: ID_BEFA01B6_11F0385CP_ContPgHS;	-	8	Enquire
114	11F0271CP	Spark Plug - Engine	11F0271CP Spark Plug - Engine Row ID: ID_BEFA01B7_11F0271CP_ContPgHS;	-	8	Enquire
115	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX Row ID: ID_BEFA0179_11F1793CP_ContPgHS;	-	8	Enquire
116	11F1894CP	Sensor - Engine - Knock	11F1894CP Sensor - Engine - Knock Row ID: ID_BEFA01B9_11F1894CP_ContPgHS;	-	4	Enquire
117	11F0809CP	Bolt - M8x30 - Engine - Thermostat	11F0809CP Bolt - M8x30 - Engine - Thermostat Row ID: ID_BEFA01C0_11F0809CP_ContPgHS;	-	4	Enquire
118	11F0817CP	ENGINE-BRACKET HAR24SS SUPPORT	11F0817CP ENGINE-BRACKET HAR24SS SUPPORT Row ID: ID_BEFA01C1_11F0817CP_ContPgHS;	$92.74	1
119	11F0822CP	Bolt - M6x16 - Engine	11F0822CP Bolt - M6x16 - Engine Row ID: ID_BEFA0118_11F0822CP_ContPgHS;	-	2	Enquire
120	11F0743CP	Harness - Engine Link - Vee	11F0743CP Harness - Engine Link - Vee Row ID: ID_BEFA01C3_11F0743CP_ContPgHS;	-	1	Enquire
121	11F0744CP	ENGINE LINK HARNESS INJECTORS	11F0744CP ENGINE LINK HARNESS INJECTORS Row ID: ID_BEFA01C4_11F0744CP_ContPgHS;	$866.06	1
122	11F0745CP	Harness - Engine Link - Inlet Manifold	11F0745CP Harness - Engine Link - Inlet Manifold Row ID: ID_BEFA01C5_11F0745CP_ContPgHS;	-	1	Enquire
123	12F0725CP	SENSOR - ENGINE - CRANK POSITION	12F0725CP SENSOR - ENGINE - CRANK POSITION Row ID: ID_BEFA01C6_12F0725CP_ContPgHS;	-	1	Enquire
124	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID_BEFA01C7_00RA409_ContPgHS;	-	1	Enquire
125	12F0830CP	Bracket - Crankchaft Position Sensor	12F0830CP Bracket - Crankchaft Position Sensor Row ID: ID_BEFA01C8_12F0830CP_ContPgHS;	-	1	Enquire
126	12F0757CP	CONNECTOR MOUNT - TYCO = 368260	12F0757CP CONNECTOR MOUNT - TYCO = 368260 Row ID: ID_BEFA01C9_12F0757CP_ContPgHS;	-	1	Enquire
127	12F0761CP	BOLT - M8X8	12F0761CP BOLT - M8X8 Row ID: ID_BEFA01D0_12F0761CP_ContPgHS;	-	1	Enquire
128	00RL022	EDGE CLIP - 202X4.6MM - INLINE	00RL022 EDGE CLIP - 202X4.6MM - INLINE Row ID: ID_BEFA01D1_00RL022_ContPgHS;	-	1	Enquire
129	12F0726CP	SPACER - CRANK POSITION SENSOR	12F0726CP SPACER - CRANK POSITION SENSOR Row ID: ID_BEFA01D2_12F0726CP_ContPgHS;	-	1	Enquire
131	00RL014	TIE WRAP BLOCK - 25*13 - TC105A	00RL014 TIE WRAP BLOCK - 2513 - TC105A Row ID: ID_BEFA01G2_00RL014_ContPgHS;*	-	1	Enquire
