McLaren Ultimate Series McLaren P1 Coupe - 34 - ENGINE OIL SYSTEM - 34.3 - ENGINE OIL FILL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
12F0365CP Bowl - Oil Filler Enquire To Order
Photo Part No Description Price (each) Stock
12F0920CP Cap - Engine - Oil Filler Enquire To Order
Photo Part No Description Price (each) Stock
12F0187CP Filler Tube - Oil Tank Enquire To Order
Photo Part No Description Price (each) Stock
00RA064 BOLT - M5X12 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Enquire To Order
Photo Part No Description Price (each) Stock
12F0919CP O-Ring - Oil Filler Cap - Viton - 46X5 Enquire To Order
View All

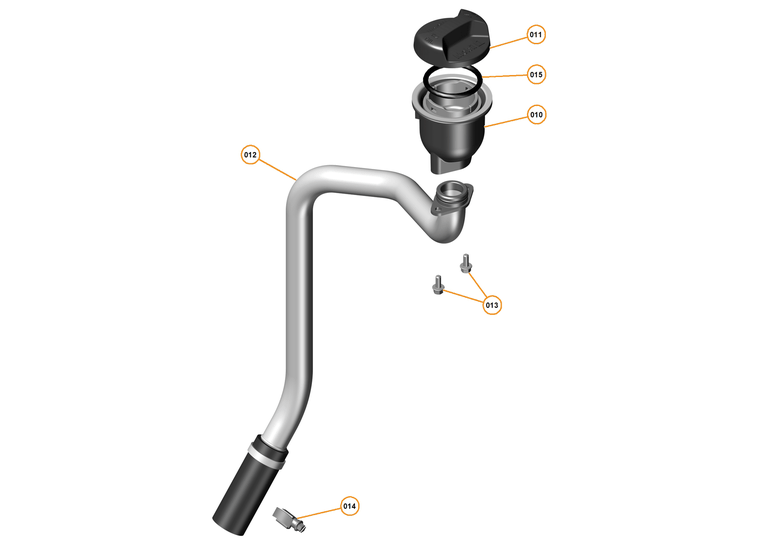

34 - ENGINE OIL SYSTEM - 34.3 - ENGINE OIL FILL SYSTEM of McLaren McLaren Ultimate Series McLaren P1 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 12F0365CP
Bowl - Oil Filler
Row ID: ID_BEFC0301_12F0365CP_ContPgHS; 		- 1 Enquire
011 12F0920CP
Cap - Engine - Oil Filler
Row ID: ID_BEFC0302_12F0920CP_ContPgHS; 		- 1 Enquire
012 12F0187CP
Filler Tube - Oil Tank
Row ID: ID_BEFC0303_12F0187CP_ContPgHS; 		- 1 Enquire
013 00RA064
BOLT - M5X12 - HEX
Row ID: ID_BEFC0304_00RA064_ContPgHS; 		- 2 Enquire
014 00RB053
HOSE CLAMP - 25-40MM - NORMA TORRO
Row ID: ID_BEFC0305_00RB053_ContPgHS; 		- 1 Enquire
015 12F0919CP
O-Ring - Oil Filler Cap - Viton - 46X5
Row ID: ID_BEFC0307_12F0919CP_ContPgHS; 		- 1 Enquire
