Name: ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL
Rating: 4.0 (1 reviews)

ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL of Maserati Maserati Quattroporte (2003-2007) DuoSelect

View All

Maserati Quattroporte (2003-2007) DuoSelect - ELECTRONIC CONTROL: INJECTION AND ENGINE TIMING CONTROL

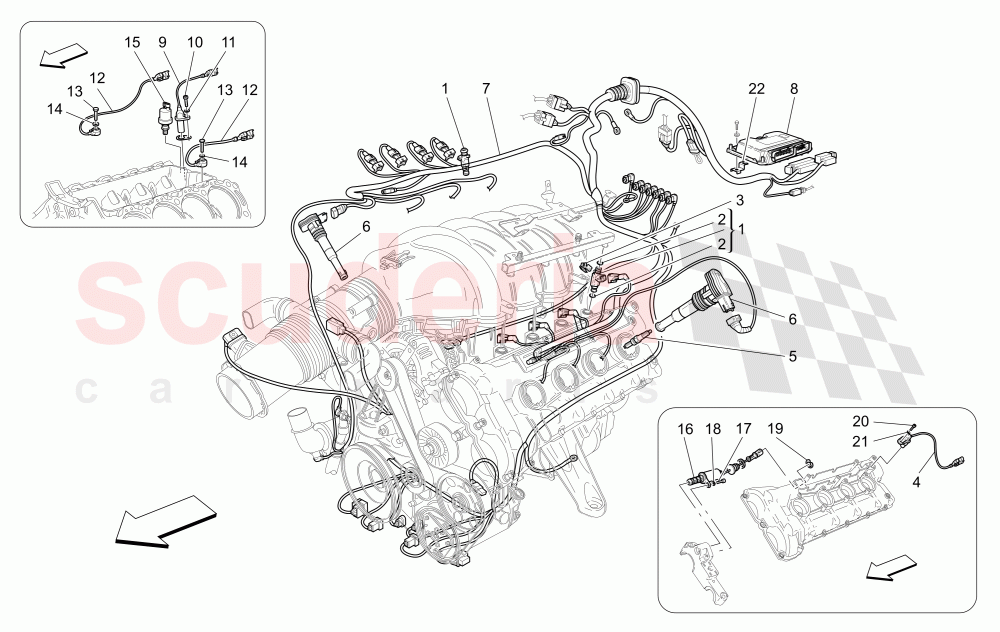

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	213635	Fuel Injector	$372.21	To Order

Photo	Part No	Description	Price (each)	Stock
	133902	GASKET	$12.13	To Order

Photo	Part No	Description	Price (each)	Stock
	144730	CLIP	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	230759	LH Timing Sensor	$209.77	To Order
	230758	RH Phase Sensor	$226.05	To Order
	230758	RH Phase Sensor	$226.05	To Order

Photo	Part No	Description	Price (each)	Stock
	192637	Spark Plug NGK	$26.17	To Order

Photo	Part No	Description	Price (each)	Stock
	281449	Ignition Coil	$150.22	To Order

Photo	Part No	Description	Price (each)	Stock
	227287	ENGINE INJECTION WIRING HARNESS	$1,536.19	To Order

Photo	Part No	Description	Price (each)	Stock
	980139471	IGNITION CONTROL UNIT	$2,337.85	To Order

Photo	Part No	Description	Price (each)	Stock
	230760	Speed Sensor	$125.57	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	230701	LH Sensor For Firing	$99.19	To Order
	230702	L.H Side Sensor For Firing	$95.67	To Order
	230700	R.H Side Sensor For Firing	$96.89	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	11198074	WASHER D.8.5-15 X 1.8	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	201672	OIL PRESSURE TRANSMITTER	$7.56	To Order

Photo	Part No	Description	Price (each)	Stock
	186563	VARIATOR CONTROL SOLENOID VALVE	$703.80	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	11087374	CIRCLIP	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	188239	BRACKET	$3.53	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	213635	Fuel Injector	213635 Fuel Injector	$372.21	8
2	133902	GASKET	133902 GASKET	$12.13	16
3	144730	CLIP	144730 CLIP	$6.62	8

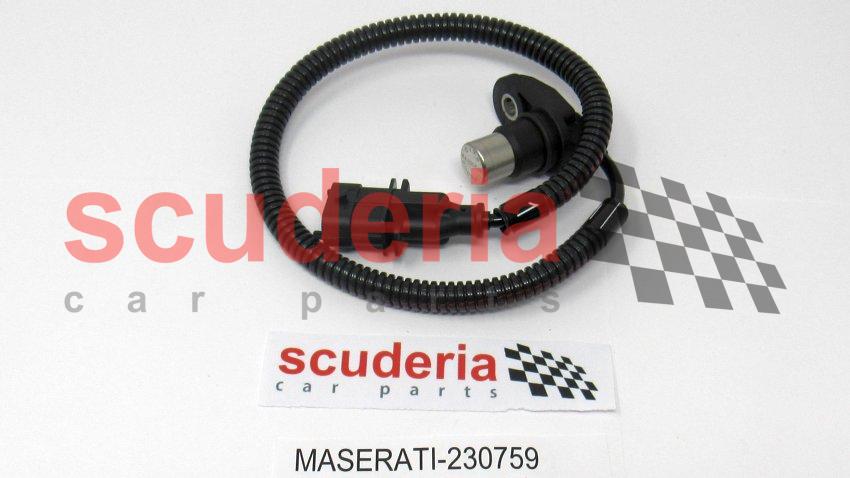

4	230759	LH Timing Sensor	230759 LH Timing Sensor	$209.77	1

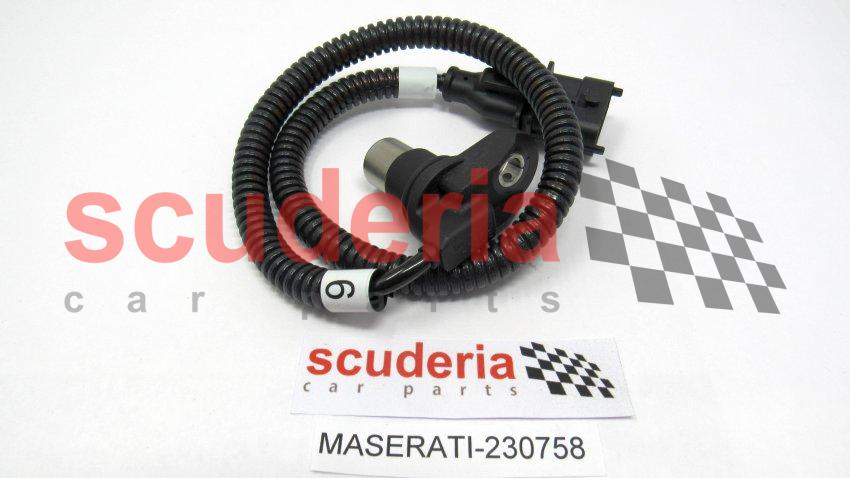

4	230758	RH Phase Sensor	230758 RH Phase Sensor	$226.05	1
4	230758	RH Phase Sensor	230758 RH Phase Sensor	$226.05	2
5	192637	Spark Plug NGK	192637 Spark Plug NGK	$26.17 MSRP: ~~33.83~~ (22.6% off)	8
6	281449	Ignition Coil	281449 Ignition Coil	$150.22	8
7	227287	ENGINE INJECTION WIRING HARNESS	227287 ENGINE INJECTION WIRING HARNESS	$1,536.19	1
8	980139471	IGNITION CONTROL UNIT	980139471 IGNITION CONTROL UNIT Programmable	$2,337.85	1
9	230760	Speed Sensor	230760 Speed Sensor	$125.57	1
10	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	1
11	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	1

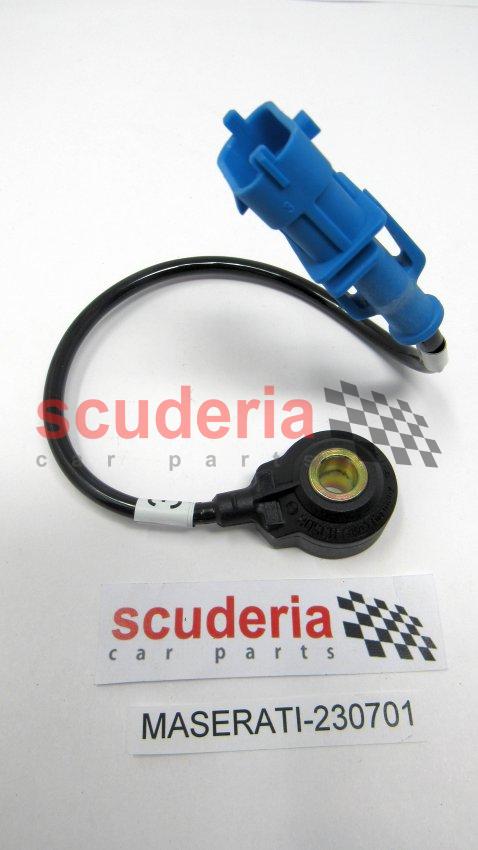

12	230701	LH Sensor For Firing	230701 LH Sensor For Firing Flywheel side	$99.19	1

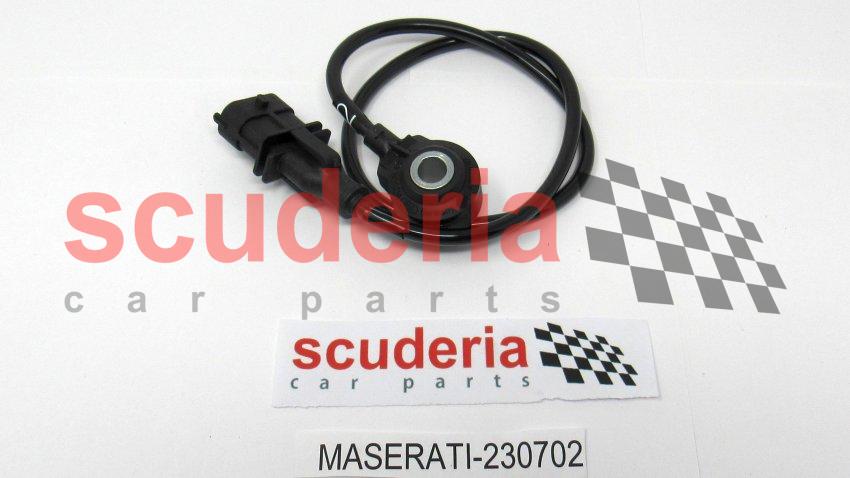

12	230702	L.H Side Sensor For Firing	230702 L.H Side Sensor For Firing Timing side	$95.67	1

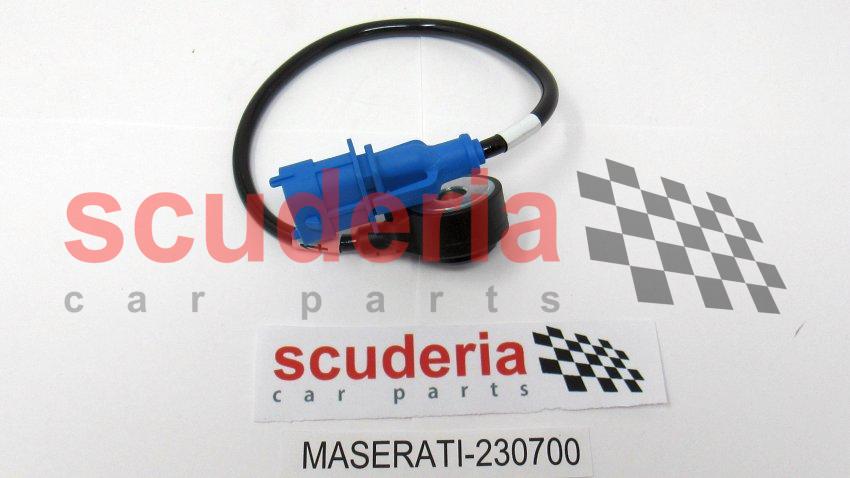

12	230700	R.H Side Sensor For Firing	230700 R.H Side Sensor For Firing Flywheel side	$96.89	1

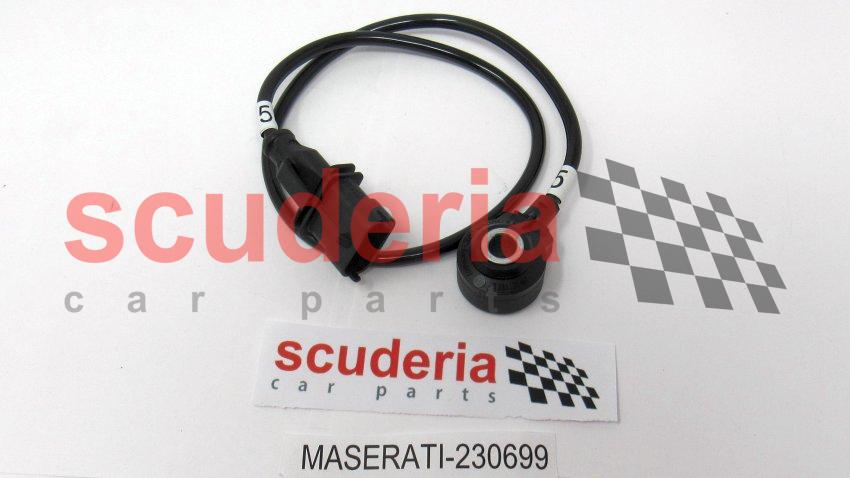

12	230699	RH DETONATION SENSOR ARRIVING SOON	230699 RH DETONATION SENSOR Timing side ARRIVING SOON	$100.47	1
12	187740	SENSOR FOR FIRING	187740 SENSOR FOR FIRING Timing side	$59.09	2
12	187739	SENSOR FOR FIRING L=300	187739 SENSOR FOR FIRING L=300 Flywheel side	$91.33	2
13	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	$2.92	4
14	11198074	WASHER D.8.5-15 X 1.8	11198074 WASHER D.8.5-15 X 1.8 D.8.5-15X1.8	$1.62	4
15	201672	OIL PRESSURE TRANSMITTER	201672 OIL PRESSURE TRANSMITTER	$7.56	1
16	186563	VARIATOR CONTROL SOLENOID VALVE	186563 VARIATOR CONTROL SOLENOID VALVE	$703.80	2
17	231617	SCREW M6 X 18	231617 SCREW M6 X 18	$2.92	2
18	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	2
19	11087374	CIRCLIP	11087374 CIRCLIP	$2.83	2
20	231617	SCREW M6 X 18	231617 SCREW M6 X 18	$2.92	2
21	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	2
22	188239	BRACKET	188239 BRACKET	$3.53	1
