Name: COOLING: AIR RADIATORS AND DUCTS
Rating: 4.7 (1 reviews)

COOLING: AIR RADIATORS AND DUCTS of Maserati Maserati Quattroporte (2003-2007) DuoSelect

View All

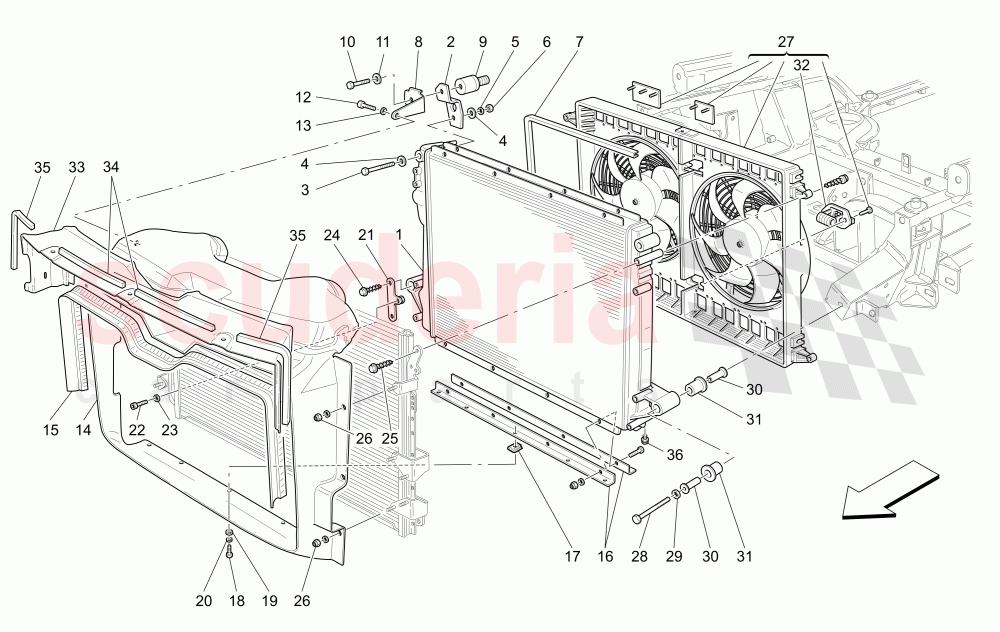

Maserati Quattroporte (2003-2007) DuoSelect - COOLING: AIR RADIATORS AND DUCTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

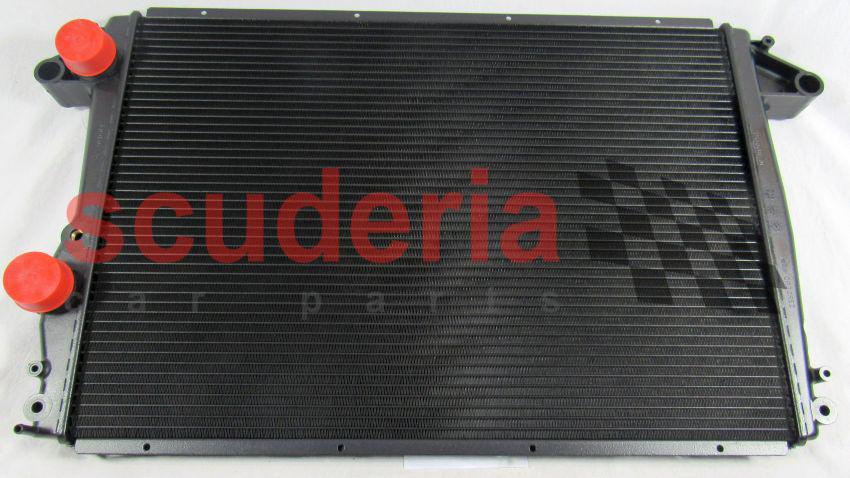

	223303	Water Radiator	$561.96	To Order

Photo	Part No	Description	Price (each)	Stock
	201064	LH BRACKET FOR UPPER FIXING WATER RADIATOR	$9.30	To Order
	201372	RH BRACKET FOR UPPER FIXING WATER RADIATOR	$8.47	To Order

Photo	Part No	Description	Price (each)	Stock
	16044524	SCREW	$2.52	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	193556	RUBBER PROFILE	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	199512	L.H. UPPER BRACKET	$8.47	To Order
	199513	R.H. UPPER BRACKET	$8.47	To Order

Photo	Part No	Description	Price (each)	Stock
	181114	Pad	$14.60	To Order

Photo	Part No	Description	Price (each)	Stock
	16043021	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHERD. 8,40-15X 0,8	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	222535	RADIATOR AIR DUCT	$121.39	To Order

Photo	Part No	Description	Price (each)	Stock
	198352	GASKET	$19.15	To Order

Photo	Part No	Description	Price (each)	Stock
	193538	AIR CONVEYOR SUPPORT BRACKET	$26.19	To Order

Photo	Part No	Description	Price (each)	Stock
	67257100	BRACKET	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	13274077	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638178	Washer	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	199546	RH BRACKET	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	15699804	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	15699904	SCREW	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	265780	ELECTRIC FAN/HOOD	$778.55	To Order

Photo	Part No	Description	Price (each)	Stock
	16044824	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197585	BUSH	$7.89	To Order

Photo	Part No	Description	Price (each)	Stock
	197584	RUBBER BUSHING	$6.87	To Order

Photo	Part No	Description	Price (each)	Stock
	263140	Resistor	$115.21	To Order

Photo	Part No	Description	Price (each)	Stock
	67069600	CROSS MEMBER AIR DUCT	$122.79	To Order

Photo	Part No	Description	Price (each)	Stock
	68199400	GASKET	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	68199500	GASKET	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	980139638	PLUG	$12.85	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	223303	Water Radiator	223303 Water Radiator	$561.96	1
2	201064	LH BRACKET FOR UPPER FIXING WATER RADIATOR	201064 LH BRACKET FOR UPPER FIXING WATER RADIATOR	$9.30	1
2	201372	RH BRACKET FOR UPPER FIXING WATER RADIATOR	201372 RH BRACKET FOR UPPER FIXING WATER RADIATOR	$8.47	1
3	16044524	SCREW	16044524 SCREW	$2.52	2
4	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8	$1.62	4
5	84653800	WASHER	84653800 WASHER	-	2	Enquire
6	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	$2.05	2
7	193556	RUBBER PROFILE	193556 RUBBER PROFILE	$2.83	2
8	199512	L.H. UPPER BRACKET	199512 L.H. UPPER BRACKET	$8.47	1
8	199513	R.H. UPPER BRACKET	199513 R.H. UPPER BRACKET	$8.47	1
9	181114	Pad	181114 Pad	$14.60	2
10	16043021	SCREW	16043021 SCREW	$1.97	2
11	12601374	WASHERD. 8,40-15X 0,8	12601374 WASHERD. 8,40-15X 0,8	$1.62	2
12	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	2
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	$2.41	2
14	222535	RADIATOR AIR DUCT	222535 RADIATOR AIR DUCT	$121.39	1
15	198352	GASKET	198352 GASKET	$19.15	1
16	193538	AIR CONVEYOR SUPPORT BRACKET	193538 AIR CONVEYOR SUPPORT BRACKET	$26.19	2
17	67257100	BRACKET	67257100 BRACKET	$2.05	5
18	13274077	SCREW	13274077 SCREW M5X12	$1.97	5
19	12604178	WASHER	12604178 WASHER D.5.3-11X0.5	-	5	Enquire
20	12638178	Washer	12638178 Washer D.5,2-14 X1	$2.05	5
21	199546	RH BRACKET	199546 RH BRACKET	$6.62	1
22	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	1
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	$2.41	1
24	15699804	SCREW	15699804 SCREW	$1.97	2
25	15699904	SCREW	15699904 SCREW	$2.39	4
26	14039614	NUT	14039614 NUT	$1.54	5
27	265780	ELECTRIC FAN/HOOD	265780 ELECTRIC FAN/HOOD	$778.55	1
28	16044824	SCREW	16044824 SCREW	$2.83	2
29	84653800	WASHER	84653800 WASHER	-	2	Enquire
30	197585	BUSH	197585 BUSH	$7.89	4
31	197584	RUBBER BUSHING	197584 RUBBER BUSHING	$6.87	4
32	263140	Resistor	263140 Resistor	$115.21	1
33	67069600	CROSS MEMBER AIR DUCT	67069600 CROSS MEMBER AIR DUCT	$122.79	1
34	68199400	GASKET	68199400 GASKET	$1.97	2
35	68199500	GASKET	68199500 GASKET	$1.97	2
36	980139638	PLUG	980139638 PLUG	$12.85	1
