TIMING of Maserati Maserati Quattroporte (2003-2007) DuoSelect

View All

Maserati Quattroporte (2003-2007) DuoSelect - TIMING

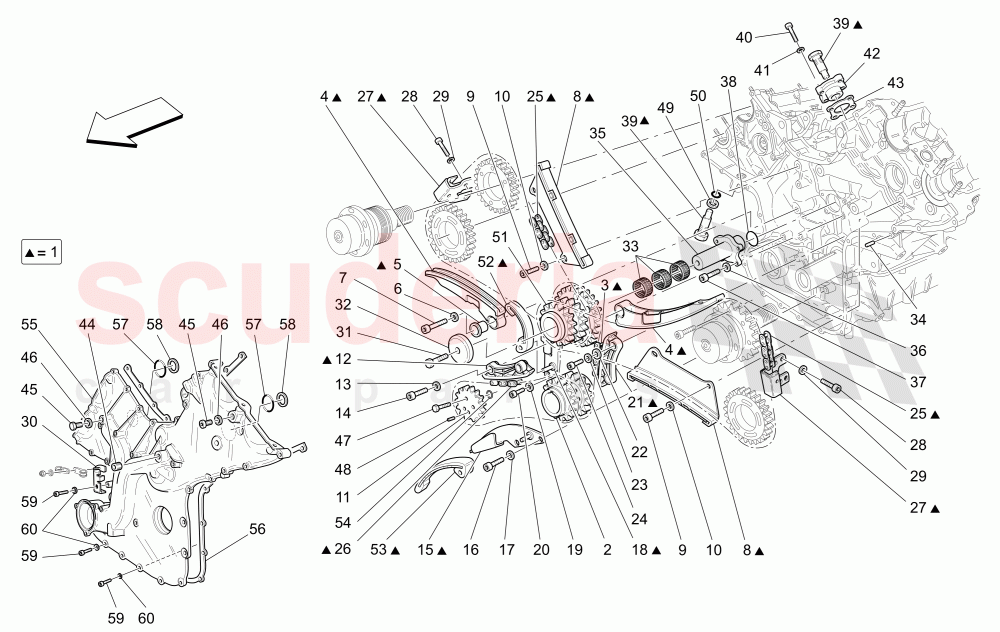

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	196902	TIMING CONTROL ASSEMBLY	$1,068.05	To Order

Photo	Part No	Description	Price (each)	Stock
	186854	ENGINE SHAFT TOOTHED WHEEL	$186.49	To Order

Photo	Part No	Description	Price (each)	Stock
	175286	TRANSMISSION CHAIN	$44.78	To Order

Photo	Part No	Description	Price (each)	Stock
	186184	TIMING CHAIN GUIDING SHOE	$128.84	To Order

Photo	Part No	Description	Price (each)	Stock
	175303	BUSHING	$24.82	To Order

Photo	Part No	Description	Price (each)	Stock
	255527	SPLIT WASHER D.8.1X12.7X2	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW M8 X 25	$2.49	To Order

Photo	Part No	Description	Price (each)	Stock
	186185	Fixed Tension Guide - Timing Chain	$94.67	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHERD.8.4-16X1.4	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	189564	PUMPS CONTROL TOOTHED WHEEL	$864.23	To Order

Photo	Part No	Description	Price (each)	Stock
	186186	FIXED SLIDING BLOCK	$50.62	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	186196	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185724	GUIDE SHOE SUPPORT	$18.98	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	186159	CHAIN GUIDE SHOE SUPPORT	$45.82	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	306094	Fixing Sliding Block	$39.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	Washer	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	193616	TIMING CHAIN	$97.90	To Order

Photo	Part No	Description	Price (each)	Stock
	175314	OIL PUMP CHAIN	$50.65	To Order

Photo	Part No	Description	Price (each)	Stock
	189569	UPPER FIXED TENSION PLATE	$56.90	To Order

Photo	Part No	Description	Price (each)	Stock
	14082210	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	198471	BRACKET	$14.93	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW M8 X 14	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	194262	WASHER	$34.65	To Order

Photo	Part No	Description	Price (each)	Stock
	175282	ROLLER CAGE	$15.83	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	$4.38	To Order

Photo	Part No	Description	Price (each)	Stock
	194261	SUPPORT	$264.26	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW TCEI M5 x 12	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	104212	O.R. GASKET	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	180316	HYDRAULIC TIGHTENER	$59.82	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	190060	BUSH FOR TENSIONER	$69.46	To Order

Photo	Part No	Description	Price (each)	Stock
	323282	GASKET	$4.83	To Order

Photo	Part No	Description	Price (each)	Stock
	14324940	THREADED PLUG	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	187718	BLEEDER PLUG	$9.30	To Order

Photo	Part No	Description	Price (each)	Stock
	10284460	GASKET	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	189563	SCREW	$53.40	To Order

Photo	Part No	Description	Price (each)	Stock
	189779	DOWEL	$75.80	To Order

Photo	Part No	Description	Price (each)	Stock
	190171	SPACER	$16.22	To Order

Photo	Part No	Description	Price (each)	Stock
	192069	O-RING D.26 X 1.5	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	193565	TRANSMISSION TOOTHED WHEEL	$195.18	To Order

Photo	Part No	Description	Price (each)	Stock
	196683	CHAIN TENSIONER	$47.62	To Order

Photo	Part No	Description	Price (each)	Stock
	185725	CHAIN TENSIONER	$53.67	To Order

Photo	Part No	Description	Price (each)	Stock
	186272	O.R. GASKET	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	228826	FRONT COVER	$3,306.90	To Order

Photo	Part No	Description	Price (each)	Stock
	323979	Front Crank Case Gasket	$53.67	To Order

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING	$4.38	To Order

Photo	Part No	Description	Price (each)	Stock
	191620	Water Output Reducer	$22.30	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	$2.92	To Order
	231622	SCREWM6X35	$1.27	To Order
	231621	Allen Screw M6 x 30	$1.27	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	196902	TIMING CONTROL ASSEMBLY	196902 TIMING CONTROL ASSEMBLY	$1,068.05	1
2	186854	ENGINE SHAFT TOOTHED WHEEL	186854 ENGINE SHAFT TOOTHED WHEEL	$186.49	1
3	175286	TRANSMISSION CHAIN	175286 TRANSMISSION CHAIN	$44.78	1
4	186184	TIMING CHAIN GUIDING SHOE	186184 TIMING CHAIN GUIDING SHOE	$128.84 MSRP: ~~137.32~~ (6.2% off)	2
5	175303	BUSHING	175303 BUSHING	$24.82	2
6	255527	SPLIT WASHER D.8.1X12.7X2	255527 SPLIT WASHER D.8.1X12.7X2	$2.53	2
7	14306424	SCREW M8 X 25	14306424 SCREW M8 X 25 M8X25	$2.49	2
8	186185	Fixed Tension Guide - Timing Chain ARRIVING SOON	186185 Fixed Tension Guide - Timing Chain ARRIVING SOON	$94.67	2
9	86768100	SCREW	86768100 SCREW	-	4	Enquire
10	11193874	WASHERD.8.4-16X1.4	11193874 WASHERD.8.4-16X1.4 D.8.4-16X1.4	$1.62	4
11	189564	PUMPS CONTROL TOOTHED WHEEL	189564 PUMPS CONTROL TOOTHED WHEEL	$864.23	1
12	186186	FIXED SLIDING BLOCK	186186 FIXED SLIDING BLOCK	$50.62	1
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	2
14	186196	SCREW	186196 SCREW	-	2	Enquire
15	185724	GUIDE SHOE SUPPORT	185724 GUIDE SHOE SUPPORT	$18.98 MSRP: ~~25.18~~ (24.6% off)	1
16	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	2
17	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	2
18	186159	CHAIN GUIDE SHOE SUPPORT	186159 CHAIN GUIDE SHOE SUPPORT	$45.82	1
19	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	2
20	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	2
21	306094	Fixing Sliding Block	306094 Fixing Sliding Block	$39.31	1
22	14498801	Washer	14498801 Washer D. 6,45-16X 2	$1.55	2
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	2
24	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM	$2.92	2
25	193616	TIMING CHAIN	193616 TIMING CHAIN	$97.90	2
26	175314	OIL PUMP CHAIN	175314 OIL PUMP CHAIN	$50.65	1
27	189569	UPPER FIXED TENSION PLATE	189569 UPPER FIXED TENSION PLATE	$56.90	2
28	14082210	SCREW	14082210 SCREW	-	8	Enquire
29	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	8
30	198471	BRACKET	198471 BRACKET	$14.93	1
31	16043124	SCREW M8 X 14	16043124 SCREW M8 X 14	$2.05	1
32	194262	WASHER	194262 WASHER	$34.65	1
33	175282	ROLLER CAGE	175282 ROLLER CAGE	$15.83	3
34	175611	CENTERING DOWEL	175611 CENTERING DOWEL	$4.38	2
35	194261	SUPPORT	194261 SUPPORT	$264.26	1
36	11181574	WASHER	11181574 WASHER D.5.3-11X0.9	$1.97	4
37	14304124	SCREW TCEI M5 x 12	14304124 SCREW TCEI M5 x 12	$1.97	4
38	104212	O.R. GASKET	104212 O.R. GASKET	$2.83	1
39	180316	HYDRAULIC TIGHTENER	180316 HYDRAULIC TIGHTENER	$59.82 MSRP: ~~103.55~~ (42.2% off)	2
40	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM	$2.92	4
41	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	4
42	190060	BUSH FOR TENSIONER	190060 BUSH FOR TENSIONER	$69.46	1
43	323282	GASKET	323282 GASKET	$4.83	1
44	14324940	THREADED PLUG	14324940 THREADED PLUG	$1.97	1
45	187718	BLEEDER PLUG	187718 BLEEDER PLUG	$9.30	2
46	10284460	GASKET	10284460 GASKET	$1.32	2
47	189563	SCREW	189563 SCREW	$53.40	3
48	189779	DOWEL	189779 DOWEL	$75.80	1
49	190171	SPACER	190171 SPACER	$16.22	1
50	192069	O-RING D.26 X 1.5	192069 O-RING D.26 X 1.5	$2.05	1
51	193565	TRANSMISSION TOOTHED WHEEL	193565 TRANSMISSION TOOTHED WHEEL	$195.18	1
52	196683	CHAIN TENSIONER	196683 CHAIN TENSIONER	$47.62	1
53	185725	CHAIN TENSIONER	185725 CHAIN TENSIONER	$53.67 MSRP: ~~80.99~~ (33.7% off)	1
54	186272	O.R. GASKET	186272 O.R. GASKET	$2.00	1
55	228826	FRONT COVER	228826 FRONT COVER	$3,306.90	1
56	323979	Front Crank Case Gasket	323979 Front Crank Case Gasket	$53.67	1
57	183010	O-RING	183010 O-RING	$4.38	2
58	191620	Water Output Reducer	191620 Water Output Reducer Valid for cars with front cover (Pos. 55) code 188710	$22.30	2
59	231617	SCREW M6 X 18	231617 SCREW M6 X 18 M 6X18	$2.92	12
59	231622	SCREWM6X35	231622 SCREWM6X35 M 6X35	$1.27	2
59	231621	Allen Screw M6 x 30	231621 Allen Screw M6 x 30 M 6X30	$1.27	3
59	156828	SCREW M 6X50Â	156828 SCREW M 6X50Â M 6X50	$2.83	2
59	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM M 6X22	$2.92	3
59	231624	SCREWM6X45	231624 SCREWM6X45 M6X45 M 6X45	$3.25	1
59	14303924	SCREW	14303924 SCREW M 6X70	$7.75	1
60	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	32
