Name: COOLING SYSTEM: NOURICE AND LINES
Rating: 4.1 (1 reviews)

COOLING SYSTEM: NOURICE AND LINES of Maserati Maserati Quattroporte (2003-2007) DuoSelect

View All

Maserati Quattroporte (2003-2007) DuoSelect - COOLING SYSTEM: NOURICE AND LINES

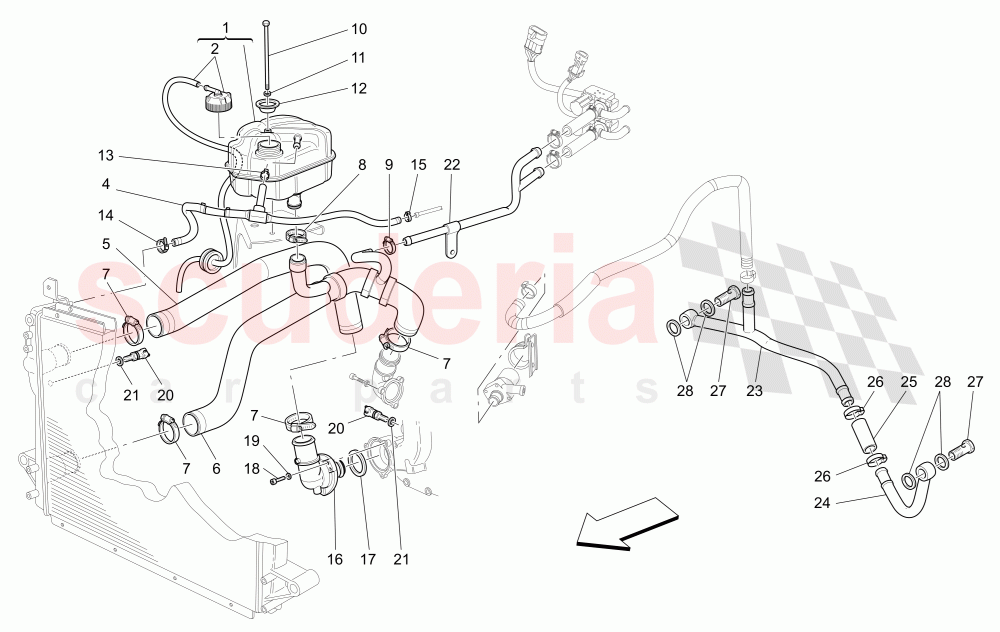

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	384000102	EXPANSION TANK LHD	$89.59	To Order

Photo	Part No	Description	Price (each)	Stock
	980145477	CAP FOR COOLANT TANK	$23.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	230761	COMPLETE VENT PIPE	$130.72	To Order

Photo	Part No	Description	Price (each)	Stock
	195104	WATER DELIVERY PIPE FROM ENGINE TO RADIATOR	$47.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	245321	RETURN PIPE FROM RADIATOR TO ENGINE	$142.09	To Order

Photo	Part No	Description	Price (each)	Stock
	13000790	Screw Collar	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13432070	Screw Collar D15.7mm	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13432070	Screw Collar D15.7mm	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	254717	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.44	To Order

Photo	Part No	Description	Price (each)	Stock
	82404496	WASHER	$3.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	Screw Collar D15.7mm	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	$2.72	To Order

Photo	Part No	Description	Price (each)	Stock
	230890	THERMOSTAT WITH PRESSURE GUAGE	$143.85	To Order

Photo	Part No	Description	Price (each)	Stock
	137873	O-Ring	$11.37	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14305324	Allen Screw 6 x 20	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.44	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	WATER TEMPERATURE SENSOR	$50.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10298460	Gasket	$1.27	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	66949800	RIGID PIPE	$85.66	To Order

Photo	Part No	Description	Price (each)	Stock
	210083	WATER PIPE FROM R.H. CYLINDER HEAD	$856.60	To Order

Photo	Part No	Description	Price (each)	Stock
	210084	WATER PIPE FROM L.H. CYLINDER HEAD	$856.60	To Order

Photo	Part No	Description	Price (each)	Stock
	235080	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262109	COLLAR	$2.72	To Order

Photo	Part No	Description	Price (each)	Stock
	203787	FILLER NECK	$29.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$1.27	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	384000102	EXPANSION TANK LHD	384000102 EXPANSION TANK LHD	$89.59	1
2	980145477	CAP FOR COOLANT TANK IN STOCK	980145477 CAP FOR COOLANT TANK IN STOCK	$23.31	1
4	230761	COMPLETE VENT PIPE	230761 COMPLETE VENT PIPE	$130.72	1
5	195104	WATER DELIVERY PIPE FROM ENGINE TO RADIATOR IN STOCK	195104 WATER DELIVERY PIPE FROM ENGINE TO RADIATOR IN STOCK	$47.59	1
6	245321	RETURN PIPE FROM RADIATOR TO ENGINE	245321 RETURN PIPE FROM RADIATOR TO ENGINE	$142.09	1
7	13000790	Screw Collar IN STOCK	13000790 Screw Collar IN STOCK	$2.07	4
8	13432070	Screw Collar D15.7mm IN STOCK	13432070 Screw Collar D15.7mm IN STOCK	$1.32	1
9	13432070	Screw Collar D15.7mm IN STOCK	13432070 Screw Collar D15.7mm IN STOCK	$1.32	1
10	254717	SCREW	254717 SCREW	-	1	Enquire
11	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5	$2.44	1
12	82404496	WASHER IN STOCK	82404496 WASHER IN STOCK	$3.70	1
13	13126970	COLLAR	13126970 COLLAR	-	1	Enquire
14	13432070	Screw Collar D15.7mm IN STOCK	13432070 Screw Collar D15.7mm IN STOCK	$1.32	1
15	262109	COLLAR	262109 COLLAR	$2.72	1
16	230890	THERMOSTAT WITH PRESSURE GUAGE	230890 THERMOSTAT WITH PRESSURE GUAGE	$143.85 MSRP: ~~148.91~~ (3.4% off)	1
17	137873	O-Ring ARRIVING SOON	137873 O-Ring ARRIVING SOON	$11.37	1
18	14305324	Allen Screw 6 x 20 IN STOCK	14305324 Allen Screw 6 x 20 IN STOCK	$2.07	3
19	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.44	3
20	180137	WATER TEMPERATURE SENSOR IN STOCK	180137 WATER TEMPERATURE SENSOR IN STOCK	$50.73	2
21	10298460	Gasket IN STOCK	10298460 Gasket IN STOCK	$1.27	2
22	66949800	RIGID PIPE	66949800 RIGID PIPE	$85.66	1
23	210083	WATER PIPE FROM R.H. CYLINDER HEAD	210083 WATER PIPE FROM R.H. CYLINDER HEAD	$856.60	1
24	210084	WATER PIPE FROM L.H. CYLINDER HEAD	210084 WATER PIPE FROM L.H. CYLINDER HEAD	$856.60	1
25	235080	SLEEVE	235080 SLEEVE	-	1	Enquire
26	262109	COLLAR	262109 COLLAR	$2.72	2
27	203787	FILLER NECK IN STOCK	203787 FILLER NECK IN STOCK	$29.79	2
28	10259960	Copper Washer 18 - 24 x 1.5	10259960 Copper Washer 18 - 24 x 1.5	$1.27	4

Cooling System: Nourice And Lines

Maserati Quattroporte (2003-2007) DuoSelect

Maserati Quattroporte (2003-2007) DuoSelect - COOLING SYSTEM: NOURICE AND LINES
