Name: LH CYLINDER HEAD
Rating: 4.1 (1 reviews)

LH CYLINDER HEAD of Maserati Maserati Quattroporte (2003-2007) DuoSelect

View All

Maserati Quattroporte (2003-2007) DuoSelect - LH CYLINDER HEAD

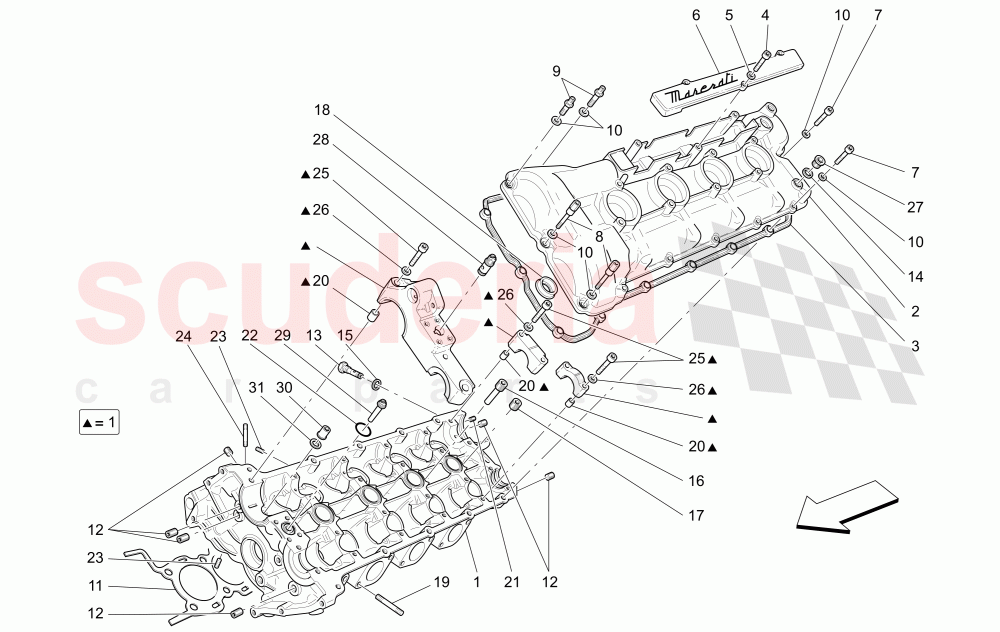

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	218038	COMPLETE L.H. HEAD	$2,687.64	To Order

Photo	Part No	Description	Price (each)	Stock
	216287	LH HEAD CYLINDER COVER	$308.40	To Order

Photo	Part No	Description	Price (each)	Stock
	198928	LH Head Cover Gasket	$73.35	To Order

Photo	Part No	Description	Price (each)	Stock
	14304424	SCREW	$4.50	To Order

Photo	Part No	Description	Price (each)	Stock
	14497878	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	185313	LH WIRING HARNESS COVER	$79.82	To Order

Photo	Part No	Description	Price (each)	Stock
	157218	SCREW M6 X 25	$2.35	To Order
	156830	ALLEN SCREW M6 X 40	$4.68	To Order

Photo	Part No	Description	Price (each)	Stock
	200414	STUD	$17.61	To Order

Photo	Part No	Description	Price (each)	Stock
	187711	STUD	$92.23	To Order
	187710	STUD	$11.90	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	55012822	LH Cylinder Head Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282755	THREADED PLUG	$4.22	To Order

Photo	Part No	Description	Price (each)	Stock
	180267	OIL NON RETURN VALVE	$55.44	To Order

Photo	Part No	Description	Price (each)	Stock
	10263360	GASKET	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	COPPER WASHER D.12- 16 X 1.5MM	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$2.55	To Order

Photo	Part No	Description	Price (each)	Stock
	164400	THREADED PLUG	$7.61	To Order

Photo	Part No	Description	Price (each)	Stock
	223982	Spark Plug Hole Gasket	$5.41	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	102725	CENTERING DOWEL	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	14326150	THREADED PLUG	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	134233	GASKET	$9.38	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD	$63.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14305821	SCREW M6 X 40	$2.05	To Order
	231622	SCREWM6X35	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	187963	PLUG	$6.62	To Order

Photo	Part No	Description	Price (each)	Stock
	184681	OIL PRESSURE CHECK VALVE	$122.06	To Order

Photo	Part No	Description	Price (each)	Stock
	241406	OIL FILTER	$12.80	To Order

Photo	Part No	Description	Price (each)	Stock
	321187	CYLINDER HEAD NUT & WASHER KIT	$29.20	To Order
	321187	CYLINDER HEAD NUT & WASHER KIT	$29.20	To Order

Photo	Part No	Description	Price (each)	Stock
	151117	WASHER 11.25-22X2.5	$27.32	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	218038	COMPLETE L.H. HEAD	218038 COMPLETE L.H. HEAD	$2,687.64	1
2	216287	LH HEAD CYLINDER COVER	216287 LH HEAD CYLINDER COVER	$308.40	1
3	198928	LH Head Cover Gasket	198928 LH Head Cover Gasket	$73.35	1
4	14304424	SCREW	14304424 SCREW	$4.50	3
5	14497878	WASHER	14497878 WASHER	$1.55	3
6	185313	LH WIRING HARNESS COVER	185313 LH WIRING HARNESS COVER	$79.82	1
7	157218	SCREW M6 X 25	157218 SCREW M6 X 25 M6X25 M 6X25	$2.35	8
7	156830	ALLEN SCREW M6 X 40	156830 ALLEN SCREW M6 X 40 M 6X40	$4.68	1
8	200414	STUD	200414 STUD M 6X25,5	$17.61	3
9	187711	STUD	187711 STUD M 6X25	$92.23	1
9	187710	STUD	187710 STUD M 6X40	$11.90	1
10	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	14
11	55012822	LH Cylinder Head Gasket	55012822 LH Cylinder Head Gasket	-	1	Enquire
12	282755	THREADED PLUG	282755 THREADED PLUG	$4.22	6
13	180267	OIL NON RETURN VALVE	180267 OIL NON RETURN VALVE	$55.44	1
14	10263360	GASKET	10263360 GASKET	$1.27	1
15	10261060	COPPER WASHER D.12- 16 X 1.5MM	10261060 COPPER WASHER D.12- 16 X 1.5MM	$1.32	1
16	127635	THREADED PLUG	127635 THREADED PLUG	$2.55	4
17	164400	THREADED PLUG	164400 THREADED PLUG	$7.61	1
18	223982	Spark Plug Hole Gasket ARRIVING SOON	223982 Spark Plug Hole Gasket ARRIVING SOON	$5.41	4
19	13543424	STUD	13543424 STUD	$1.97	8
20	102725	CENTERING DOWEL	102725 CENTERING DOWEL	$1.97	22
21	14326150	THREADED PLUG	14326150 THREADED PLUG	$1.27	1
22	134233	GASKET	134233 GASKET	$9.38	1
23	199760	THREADED PLUG	199760 THREADED PLUG	$1.97	6
24	13541224	STUD	13541224 STUD	$63.67	8
25	14305821	SCREW M6 X 40	14305821 SCREW M6 X 40 M6X40 M 6X40	$2.05	4
25	231622	SCREWM6X35	231622 SCREWM6X35 M 6X35	$1.27	18
26	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	22
27	187963	PLUG	187963 PLUG	$6.62	1
28	184681	OIL PRESSURE CHECK VALVE	184681 OIL PRESSURE CHECK VALVE	$122.06	1
29	241406	OIL FILTER	241406 OIL FILTER	$12.80	1
30	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT M11	$29.20	10
30	321187	CYLINDER HEAD NUT & WASHER KIT	321187 CYLINDER HEAD NUT & WASHER KIT	$29.20	10
31	151117	WASHER 11.25-22X2.5	151117 WASHER 11.25-22X2.5 D.11.25-22X2.5	$27.32	10
