Name: ADDITIONAL AIR SYSTEM
Rating: 4.0 (1 reviews)

ADDITIONAL AIR SYSTEM of Maserati Maserati Quattroporte (2003-2007) DuoSelect

View All

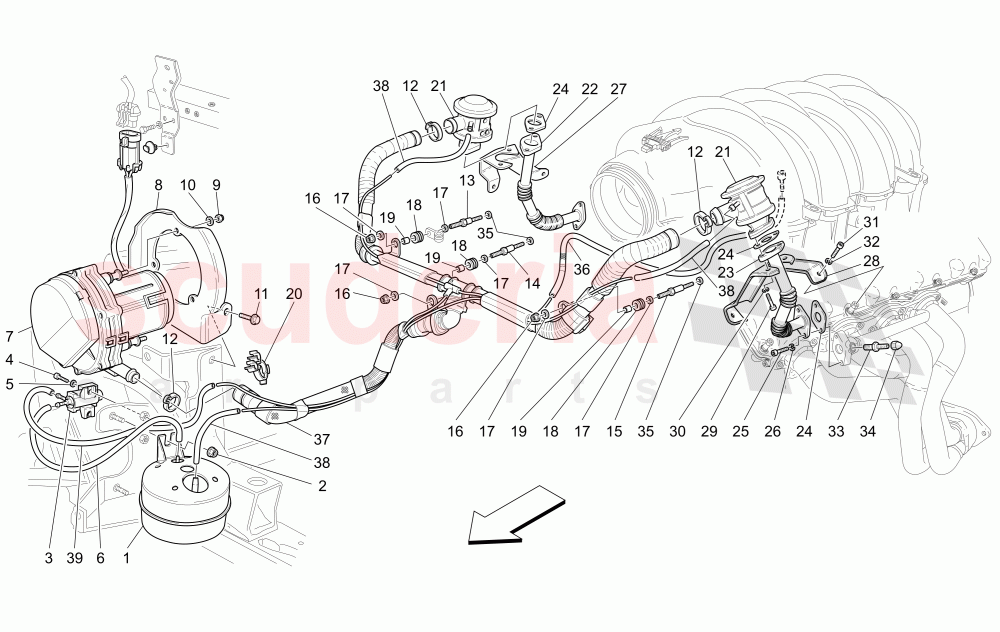

Maserati Quattroporte (2003-2007) DuoSelect - ADDITIONAL AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	330328400	VACUUM TANK	$31.39	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUTM6	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	315769	On/Off Solenoid Valve	$76.55	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW TCEI M5 x 12	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238513	SLEEVE	$2.30	To Order

Photo	Part No	Description	Price (each)	Stock
	181197	SECONDARY AIR PUMP	$732.99	To Order

Photo	Part No	Description	Price (each)	Stock
	188210	AIR PUMP FIXING BRACKET	$30.43	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	16281921	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	226356	CLAMP	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	194437	STUD	$18.38	To Order

Photo	Part No	Description	Price (each)	Stock
	199865	STUD	$13.13	To Order

Photo	Part No	Description	Price (each)	Stock
	199852	STUD	$41.83	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	Washer 6.15-18x1.5	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	219456	VIBRATION-DAMPING MOUNT	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	219457	SPACER	$26.76	To Order

Photo	Part No	Description	Price (each)	Stock
	209670	CLIP	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	171175	Secondary Air Valve	$195.06	To Order

Photo	Part No	Description	Price (each)	Stock
	210203	R.H. AIR VALVE PIPE	$164.10	To Order

Photo	Part No	Description	Price (each)	Stock
	204417	L.H. AIR VALVE PIPE	$138.77	To Order

Photo	Part No	Description	Price (each)	Stock
	186781	Gasket for Manifold	$6.12	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	210202	R.H. AIR VALVE FIXING BRACKET	$23.10	To Order

Photo	Part No	Description	Price (each)	Stock
	211218	L.H. AIR VALVE FIXING BRACKET	$20.86	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$1.55	To Order

Photo	Part No	Description	Price (each)	Stock
	198312	SCREW	$3.40	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	152630	THREADED UNION	$80.57	To Order

Photo	Part No	Description	Price (each)	Stock
	150595	NUT	$2.97	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.41	To Order

Photo	Part No	Description	Price (each)	Stock
	224508	RUBBER HOSE	$13.70	To Order

Photo	Part No	Description	Price (each)	Stock
	222216	COMPLETE SECONDARY AIR PIPE	$303.25	To Order

Photo	Part No	Description	Price (each)	Stock
	115666	RUBBER HOSE	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	169456	RUBBER HOSE	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	330328400	VACUUM TANK	330328400 VACUUM TANK	$31.39	1
2	14059211	NUTM6	14059211 NUTM6 M6	$1.54	2
3	315769	On/Off Solenoid Valve	315769 On/Off Solenoid Valve	$76.55	1
4	14304124	SCREW TCEI M5 x 12	14304124 SCREW TCEI M5 x 12	$1.97	2
5	12604178	WASHER	12604178 WASHER D.5.3-11X0.5	-	2	Enquire
6	238513	SLEEVE	238513 SLEEVE	$2.30	1
7	181197	SECONDARY AIR PUMP	181197 SECONDARY AIR PUMP	$732.99	1
8	188210	AIR PUMP FIXING BRACKET	188210 AIR PUMP FIXING BRACKET	$30.43	1
9	14039614	NUT	14039614 NUT	$1.54	3
10	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5	$2.41	3
11	16281921	SCREW	16281921 SCREW	$2.83	2
12	226356	CLAMP	226356 CLAMP	$1.97	3
13	194437	STUD	194437 STUD	$18.38	1
14	199865	STUD	199865 STUD	$13.13	1
15	199852	STUD	199852 STUD	$41.83	1
16	14039614	NUT	14039614 NUT	$1.54	3
17	12643724	Washer 6.15-18x1.5	12643724 Washer 6.15-18x1.5	$1.62	6
18	219456	VIBRATION-DAMPING MOUNT	219456 VIBRATION-DAMPING MOUNT	$2.53	3
19	219457	SPACER	219457 SPACER	$26.76	3
20	209670	CLIP	209670 CLIP	$3.53	3
21	171175	Secondary Air Valve	171175 Secondary Air Valve	$195.06 MSRP: ~~295.94~~ (34.1% off)	2
22	210203	R.H. AIR VALVE PIPE	210203 R.H. AIR VALVE PIPE	$164.10	1
23	204417	L.H. AIR VALVE PIPE	204417 L.H. AIR VALVE PIPE	$138.77	1
24	186781	Gasket for Manifold	186781 Gasket for Manifold	$6.12	4
25	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	$3.53	4
26	127494	WASHER	127494 WASHER	$1.55	4
27	210202	R.H. AIR VALVE FIXING BRACKET	210202 R.H. AIR VALVE FIXING BRACKET	$23.10	1
28	211218	L.H. AIR VALVE FIXING BRACKET	211218 L.H. AIR VALVE FIXING BRACKET	$20.86	1
29	231617	SCREW M6 X 18	231617 SCREW M6 X 18	$2.92	4
30	127494	WASHER	127494 WASHER	$1.55	4
31	198312	SCREW	198312 SCREW	$3.40	4
32	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	4
33	152630	THREADED UNION	152630 THREADED UNION	$80.57	2
34	150595	NUT	150595 NUT	$2.97	2
35	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	$2.41	3
36	224508	RUBBER HOSE	224508 RUBBER HOSE	$13.70	1
37	222216	COMPLETE SECONDARY AIR PIPE	222216 COMPLETE SECONDARY AIR PIPE	$303.25	1
38	115666	RUBBER HOSE	115666 RUBBER HOSE	$1.16 MSRP: ~~18.93~~ (93.9% off)	3
39	169456	RUBBER HOSE	169456 RUBBER HOSE	-	1	Enquire
