Name: INTAKE MANIFOLD
Rating: 5.0 (1 reviews)

View All

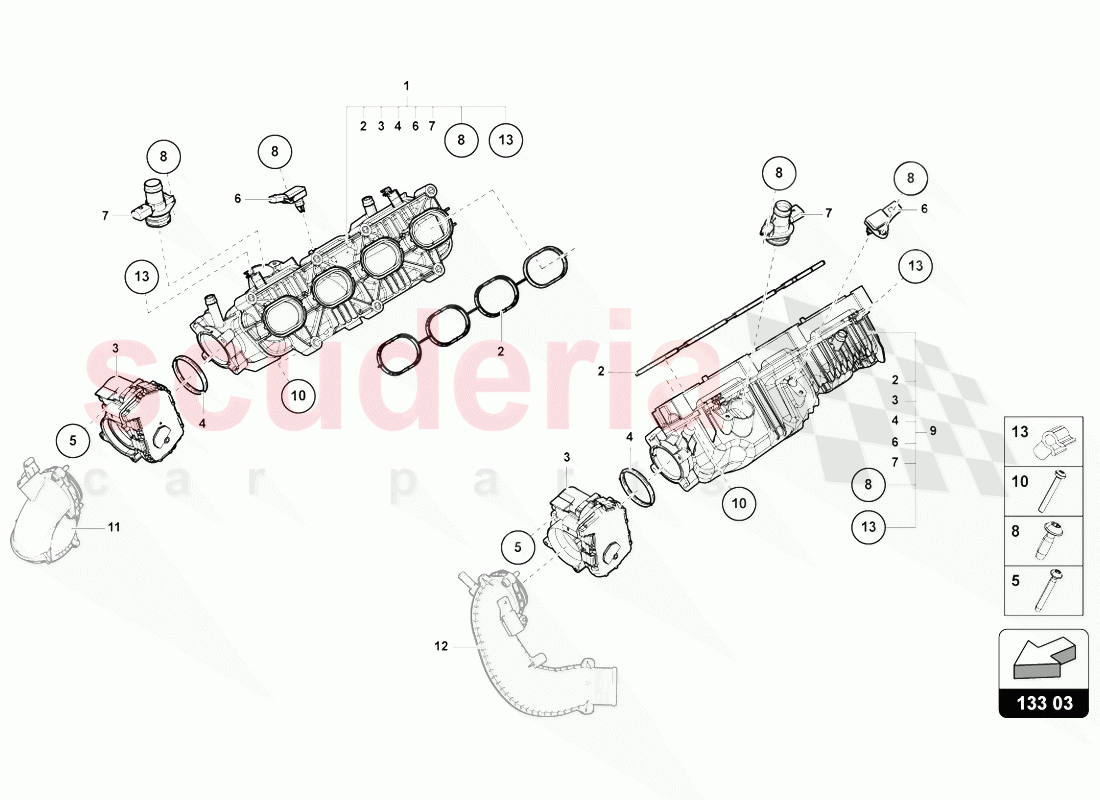

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	P212712H	INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2129049	SEAL	$16.80	To Order

Photo	Part No	Description	Price (each)	Stock
	P2133062C	THROTTLE VALVE	$577.98	To Order

Photo	Part No	Description	Price (each)	Stock
	P2133073	SEAL	$11.22	To Order

Photo	Part No	Description	Price (each)	Stock
	N10626101	HEXAGON SOCKET FLAT HEAD BOLT	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	6E906051AB	PRESSURE SENSOR	$110.21	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103202E	PIPE UNION W/ HEATING ELEMENT	$89.92	To Order

Photo	Part No	Description	Price (each)	Stock
	N10473402	ROUND HD. SCREW	$1.04	To Order

Photo	Part No	Description	Price (each)	Stock
	P2129711E	INTAKE MANIFOLD	$524.20	To Order

Photo	Part No	Description	Price (each)	Stock
	N10405702	HEXAGON SOCKET HEAD BOLT	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
		PRESSURE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		PRESSURE PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2129667	CLIP	$1.89	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	P212712H	INTAKE MANIFOLD	P212712H INTAKE MANIFOLD CYLINDERS 1-5	-	1	Enquire
2	P2129049	SEAL	P2129049 SEAL	$16.80	2
3	P2133062C	THROTTLE VALVE	P2133062C THROTTLE VALVE	$577.98	2
4	P2133073	SEAL	P2133073 SEAL	$11.22	2
5	N10626101	HEXAGON SOCKET FLAT HEAD BOLT	N10626101 HEXAGON SOCKET FLAT HEAD BOLT 6X45	$1.34	4
6	6E906051AB	PRESSURE SENSOR	6E906051AB PRESSURE SENSOR	$110.21	2
7	P2103202E	PIPE UNION W/ HEATING ELEMENT	P2103202E PIPE UNION W/ HEATING ELEMENT	$89.92	2
8	N10473402	ROUND HD. SCREW	N10473402 ROUND HD. SCREW M6X20	$1.04	4
9	P2129711E	INTAKE MANIFOLD	P2129711E INTAKE MANIFOLD CYLINDER 5-8	$524.20	1
10	N10405702	HEXAGON SOCKET HEAD BOLT	N10405702 HEXAGON SOCKET HEAD BOLT M6X45	$0.92	14
11	-	PRESSURE PIPE	PRESSURE PIPE SEE ILLUSTRATION :-CYLINDERS 1-4 145-060	-	-	Enquire
12	-	PRESSURE PIPE	PRESSURE PIPE SEE ILLUSTRATION :-CYLINDER 5-8 145-060	-	-	Enquire
13	P2129667	CLIP	P2129667 CLIP	$1.89	-
