RESERVOIR of Lamborghini Lamborghini Urus (2018-2019)

View All

Lamborghini Urus (2018-2019) - RESERVOIR

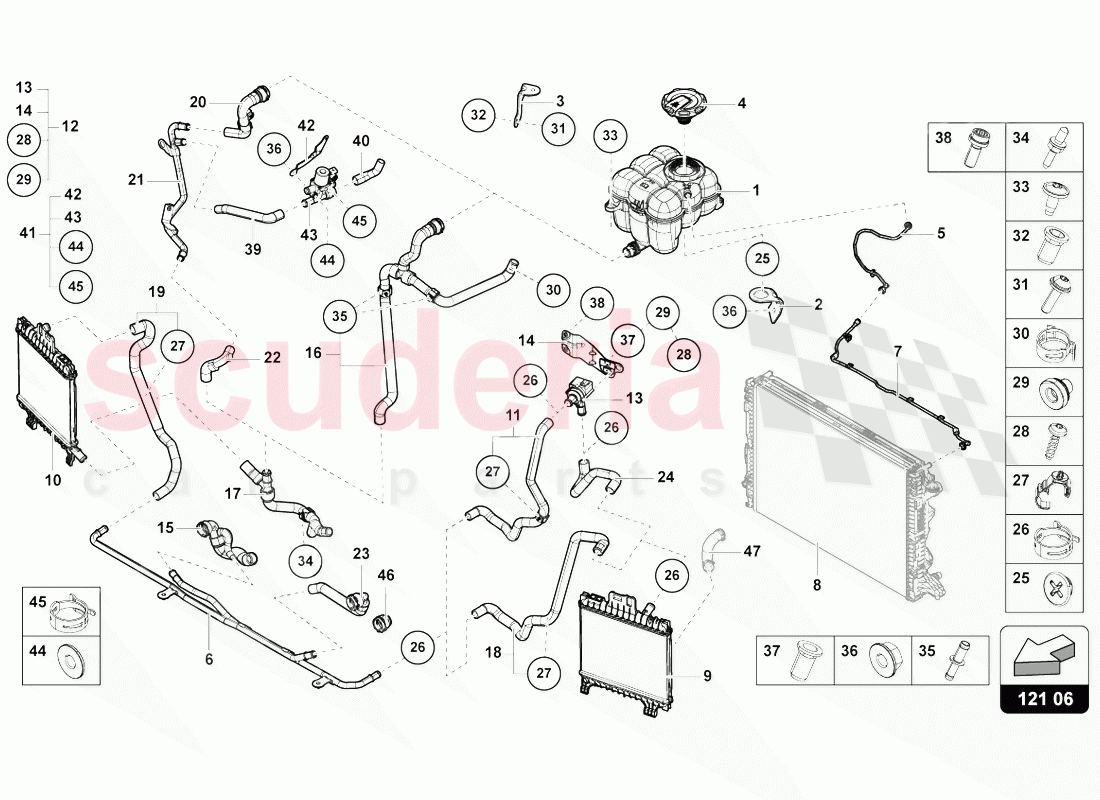

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0121403G	RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121232E	RETAINER FOR RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121233CE	RETAINER FOR RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121321Q	CAP FOR EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121081DD	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819857C	COOLANT PIPE	Enquire	To Order
	4M0121131D	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819927F	COOLANT PIPE	Enquire	To Order
	4M0121081DH	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0265374R	COOLANT HOSE	Enquire	To Order
		COOLER FOR COOLANT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121218F	COOLER FOR COOLANT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121218G	COOLER FOR COOLANT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0122061B	COOLING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121068R	ADDITIONAL COOLANT PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6H121601M	COOLANT PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121079AE	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0122055DJ	COOLANT HOSE WITH QUICK RELEASE COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819337BK	COOLANT HOSE WITH QUICK RELEASE COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819342AP	COOLANT PIPE FOR THROTTLE VALVE PRE-HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0122073M	COOLING PIPE	Enquire	To Order
		COOLING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0122902Q	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0122109BH	COOLANT HOSE WITH QUICK RELEASE COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0265391B	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0265374AB	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0122902R	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0121063D	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G0121585A	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90687001	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1C0422705A	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002306	SELF-TAPPING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91139001	DOUBLE STUD WITH HEXAGON DRIVE	Enquire	To Order
	4G0129234	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686901	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91054001	SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10618501	RIVETTED CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003841	FLAT ROUND HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91139001	DOUBLE STUD WITH HEXAGON DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007439	HOSE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10580601	RIVETTED CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91048804	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0265373Q	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819674J	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819067M	SOLENOID VALVE WITH HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819379E	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0820036	SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0820607	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90687001	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4D0133335	CAP CLOSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		COOLANT PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0121403G	RESERVOIR	4M0121403G RESERVOIR	-	-	Enquire
2	4M0121232E	RETAINER FOR RESERVOIR	4M0121232E RETAINER FOR RESERVOIR LOWER FRONT	-	1	Enquire
3	4M0121233CE	RETAINER FOR RESERVOIR	4M0121233CE RETAINER FOR RESERVOIR	-	1	Enquire
4	4M0121321Q	CAP FOR EXPANSION TANK	4M0121321Q CAP FOR EXPANSION TANK BLACK	-	1	Enquire
5	4M0121081DD	COOLANT HOSE	4M0121081DD COOLANT HOSE UPPER REAR	-	1	Enquire
6	4M0819857C	COOLANT PIPE	4M0819857C COOLANT PIPE RIGHT UPPER	-	1	Enquire
6	4M0121131D	HOSE CONNECTOR	4M0121131D HOSE CONNECTOR	-	1	Enquire
7	4M0819927F	COOLANT PIPE	4M0819927F COOLANT PIPE	-	1	Enquire
7	4M0121081DH	COOLANT PIPE	4M0121081DH COOLANT PIPE UPPER FRONT	-	1	Enquire
8	4M0265374R	COOLANT HOSE	4M0265374R COOLANT HOSE	-	1	Enquire
8	-	COOLER FOR COOLANT	COOLER FOR COOLANT SEE ILLUSTRATION :- 121-050	-	-	Enquire
9	4M0121218F	COOLER FOR COOLANT	4M0121218F COOLER FOR COOLANT	-	1	Enquire
10	4M0121218G	COOLER FOR COOLANT	4M0121218G COOLER FOR COOLANT	-	1	Enquire
11	4M0122061B	COOLING PIPE	4M0122061B COOLING PIPE	-	1	Enquire
12	4M0121068R	ADDITIONAL COOLANT PUMP	4M0121068R ADDITIONAL COOLANT PUMP	-	1	Enquire
13	6H121601M	COOLANT PUMP	6H121601M COOLANT PUMP	-	1	Enquire
14	4M0121079AE	BRACKET	4M0121079AE BRACKET	-	-	Enquire
15	4M0122055DJ	COOLANT HOSE WITH QUICK RELEASE COUPLING	4M0122055DJ COOLANT HOSE WITH QUICK RELEASE COUPLING	-	1	Enquire
16	4M0819337BK	COOLANT HOSE WITH QUICK RELEASE COUPLING	4M0819337BK COOLANT HOSE WITH QUICK RELEASE COUPLING	-	1	Enquire
17	4M0819342AP	COOLANT PIPE FOR THROTTLE VALVE PRE-HEATER	4M0819342AP COOLANT PIPE FOR THROTTLE VALVE PRE-HEATER	-	1	Enquire
18	4M0122073M	COOLING PIPE	4M0122073M COOLING PIPE UNTIL VIN 1225	-	1	Enquire
18	-	COOLING PIPE	COOLING PIPE FROM VIN 1226 ORDER REF.: 11	-	-	Enquire
19	4M0122902Q	COOLANT PIPE	4M0122902Q COOLANT PIPE	-	1	Enquire
20	4M0122109BH	COOLANT HOSE WITH QUICK RELEASE COUPLING	4M0122109BH COOLANT HOSE WITH QUICK RELEASE COUPLING	-	1	Enquire
21	4M0265391B	COOLANT PIPE	4M0265391B COOLANT PIPE	-	1	Enquire
22	4M0265374AB	COOLANT HOSE	4M0265374AB COOLANT HOSE	-	1	Enquire
23	4M0122902R	COOLANT PIPE	4M0122902R COOLANT PIPE	-	1	Enquire
24	4M0121063D	COOLANT HOSE	4M0121063D COOLANT HOSE	-	1	Enquire
25	4G0121585A	RUBBER BUSH	4G0121585A RUBBER BUSH	-	1	Enquire
26	N90687001	SPRING BAND CLAMP	N90687001 SPRING BAND CLAMP 27X12	-	5	Enquire
27	1C0422705A	CLIP	1C0422705A CLIP	-	3	Enquire
28	WHT002306	SELF-TAPPING SCREW	WHT002306 SELF-TAPPING SCREW 3,5X12	-	1	Enquire
29	N91139001	DOUBLE STUD WITH HEXAGON DRIVE	N91139001 DOUBLE STUD WITH HEXAGON DRIVE M6, 5X16	-	1	Enquire
29	4G0129234	RUBBER BUSH	4G0129234 RUBBER BUSH	-	1	Enquire
30	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP 23X12	-	1	Enquire
31	N91054001	SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	N91054001 SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD M6X22	-	1	Enquire
32	N10618501	RIVETTED CAP NUT	N10618501 RIVETTED CAP NUT M6/0,5-3	-	1	Enquire
33	WHT003841	FLAT ROUND HEAD BOLT	WHT003841 FLAT ROUND HEAD BOLT M6GFX14	-	1	Enquire
34	N91139001	DOUBLE STUD WITH HEXAGON DRIVE	N91139001 DOUBLE STUD WITH HEXAGON DRIVE M6, 5X16	-	2	Enquire
35	WHT007439	HOSE BRACKET	WHT007439 HOSE BRACKET	-	-	Enquire
36	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	1	Enquire
37	N10580601	RIVETTED CAP NUT	N10580601 RIVETTED CAP NUT M8/0,5-3	-	2	Enquire
38	N91048804	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N91048804 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X16	-	2	Enquire
39	4M0265373Q	COOLANT HOSE	4M0265373Q COOLANT HOSE	-	1	Enquire
40	4M0819674J	COOLANT HOSE	4M0819674J COOLANT HOSE	-	1	Enquire
41	4M0819067M	SOLENOID VALVE WITH HOLDER	4M0819067M SOLENOID VALVE WITH HOLDER	-	1	Enquire
42	4M0819379E	BRACKET	4M0819379E BRACKET CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 41	-	1	Enquire
43	8E0820036	SOLENOID VALVE	8E0820036 SOLENOID VALVE CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 41	-	-	Enquire
44	8E0820607	SLEEVE	8E0820607 SLEEVE CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 41	-	2	Enquire
45	N90687001	SPRING BAND CLAMP	N90687001 SPRING BAND CLAMP CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:-27X12 41	-	1	Enquire
46	4D0133335	CAP CLOSURE	4D0133335 CAP CLOSURE UNTIL VIN 1225	-	-	Enquire
47	-	COOLANT PIPE	COOLANT PIPE SEE ILLUSTRATION : 121.08	-	-	Enquire
