OIL FILTER ELEMENT of Lamborghini Lamborghini Urus (2018-2019)

View All

Lamborghini Urus (2018-2019) - OIL FILTER ELEMENT

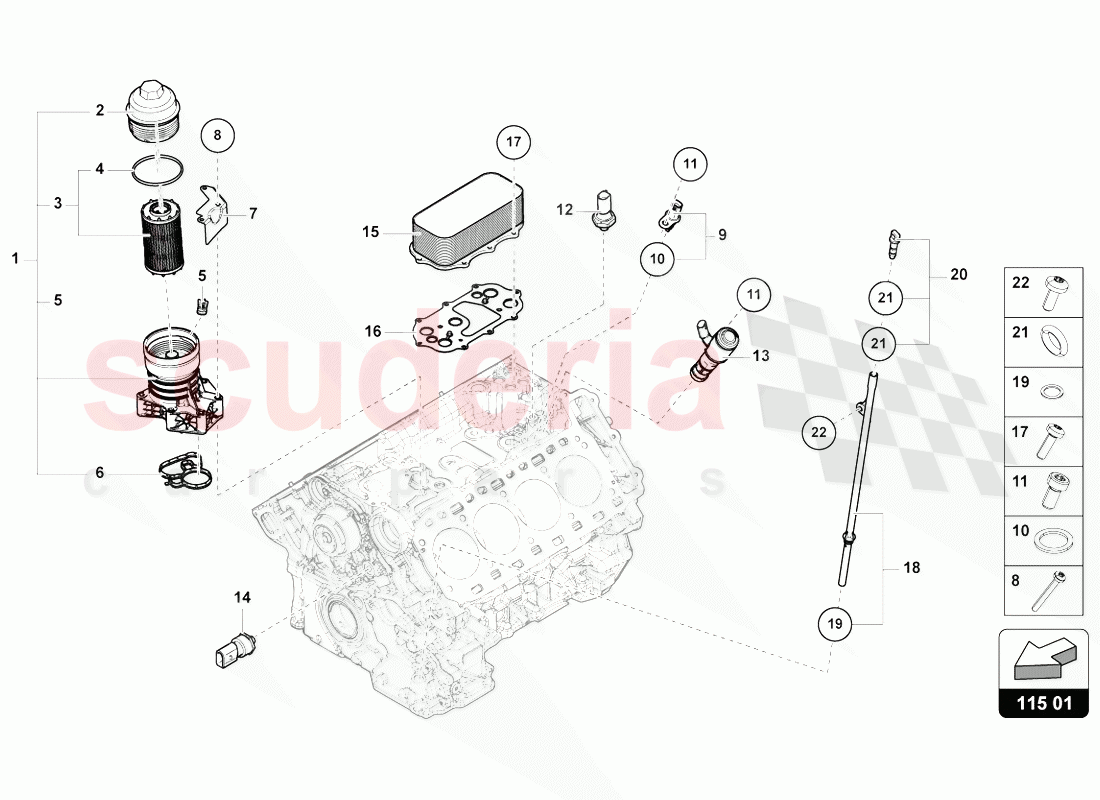

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6M115401F	FILTER HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M115311E	COVER FOR OIL FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M198405F	FILTER ELEMENT WITH GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M115331A	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M103175C	NON-RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M115411G	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2119275	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10470703	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79919525D	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002287C	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10285505	SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79919081D	OIL PRESSURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2115243C	CONTROL VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6E906054G	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2117015	OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103161A	GASKET FOR OIL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2115609B	TUBE FOR OIL DIPSTICK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34115427B	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	59115418A	SEALING STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90813802	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6M115401F	FILTER HOUSING	6M115401F FILTER HOUSING	-	1	Enquire
2	6M115311E	COVER FOR OIL FILTER	6M115311E COVER FOR OIL FILTER	-	1	Enquire
3	6M198405F	FILTER ELEMENT WITH GASKET	6M198405F FILTER ELEMENT WITH GASKET	-	1	Enquire
4	6M115331A	O-RING	6M115331A O-RING	-	1	Enquire
5	6M103175C	NON-RETURN VALVE	6M103175C NON-RETURN VALVE	-	1	Enquire
6	6M115411G	GASKET	6M115411G GASKET	-	1	Enquire
7	P2119275	HEAT SHIELD	P2119275 HEAT SHIELD	-	1	Enquire
8	N10470703	ROUND HD. SCREW	N10470703 ROUND HD. SCREW M6X50	-	6	Enquire
9	79919525D	TEMPERATURE SENSOR	79919525D TEMPERATURE SENSOR	-	1	Enquire
10	WHT002287C	O-RING	WHT002287C O-RING 5,6X2	-	1	Enquire
11	N10285505	SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD	N10285505 SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD M6X12	-	2	Enquire
12	79919081D	OIL PRESSURE SWITCH	79919081D OIL PRESSURE SWITCH TURQUOISE(GR.) 0,3-0,6BAR 1 PIN	-	1	Enquire
13	P2115243C	CONTROL VALVE	P2115243C CONTROL VALVE	-	1	Enquire
14	6E906054G	PRESSURE SENSOR	6E906054G PRESSURE SENSOR	-	1	Enquire
15	P2117015	OIL COOLER	P2117015 OIL COOLER ORDER ALSO REF.:- 16	-	1	Enquire
16	P2103161A	GASKET FOR OIL COOLER	P2103161A GASKET FOR OIL COOLER	-	1	Enquire
17	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT M6X20	-	8	Enquire
18	P2115609B	TUBE FOR OIL DIPSTICK	P2115609B TUBE FOR OIL DIPSTICK	-	1	Enquire
19	34115427B	O-RING	34115427B O-RING 12X2	-	1	Enquire
20	59115418A	SEALING STUD	59115418A SEALING STUD	-	1	Enquire
21	N90813802	O-RING	N90813802 O-RING 5X1,9	-	-	Enquire
22	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	N91126601 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	1	Enquire
