COOLING SYSTEM of Lamborghini Lamborghini Urus (2018-2019)

View All

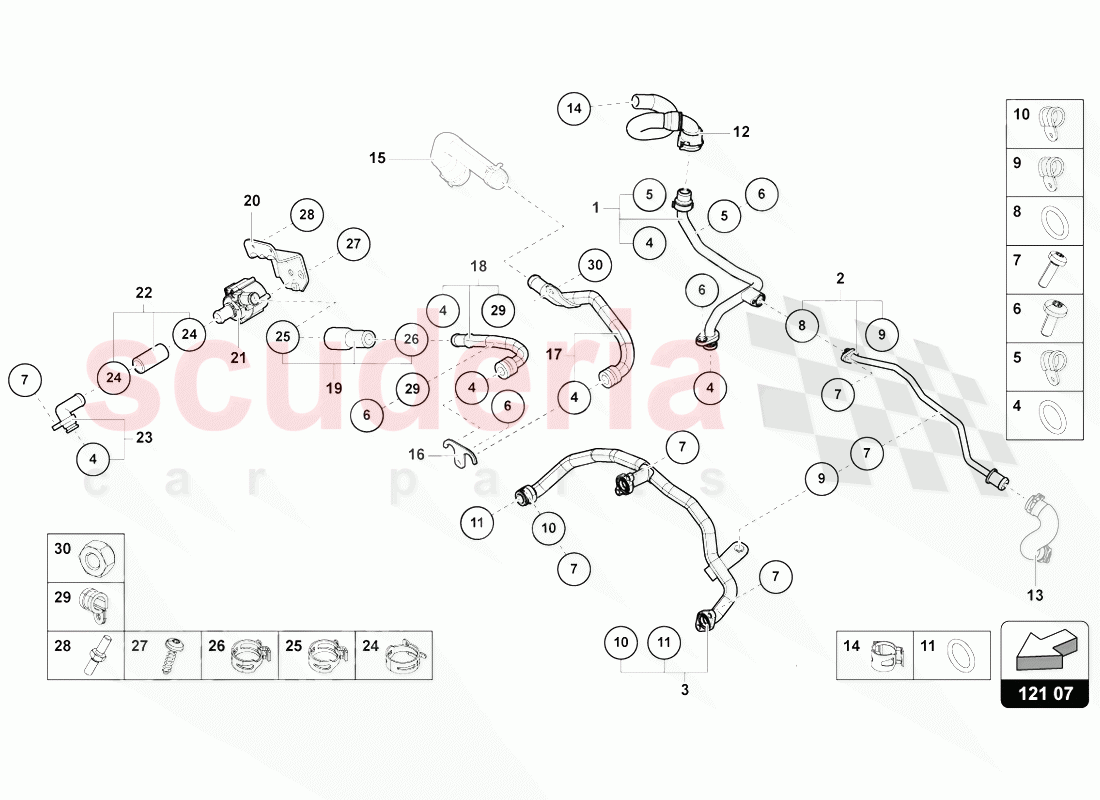

Lamborghini Urus (2018-2019) - COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	P2121075E	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2121085	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2121071F	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90925001	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0206267	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90452002	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT006407	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819332P	COOLANT HOSE WITH QUICK RELEASE COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686901	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		COOLANT PIPE	Enquire	To Order
	P2121071F	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2121077	CLAMPING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2121193E	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2121164A	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2121054A	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2121093	BRACKET FOR ADDITIONAL COOLANT PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6H121601M	COOLANT PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6M121052E	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P2121089	COOLANT CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90687001	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007714	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6B145917A	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002306	SELF-TAPPING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91044801	DOUBLE STUD WITH HEXAGON DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10259903	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N02214812	HEXAGON NUT, SELF-LOCKING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	P2121075E	COOLANT PIPE	P2121075E COOLANT PIPE	-	1	Enquire
2	P2121085	COOLANT PIPE	P2121085 COOLANT PIPE	-	1	Enquire
3	P2121071F	COOLANT PIPE	P2121071F COOLANT PIPE	-	1	Enquire
4	N90925001	O-RING	N90925001 O-RING INCLUDED IN REF.:-17X3 1	-	2	Enquire
5	N0206267	CLAMP	N0206267 CLAMP INCLUDED IN REF.:-16X15 1	-	1	Enquire
6	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	N91126601 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	2	Enquire
7	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT M6X20	-	5	Enquire
8	N90452002	O-RING	N90452002 O-RING 11X3	-	-	Enquire
9	-	CLAMP	CLAMP INCLUDED IN REF.:- 2	-	-	Enquire
10	-	CLAMP	CLAMP INCLUDED IN REF.:- 3	-	-	Enquire
11	WHT006407	O-RING	WHT006407 O-RING 20X3	-	2	Enquire
12	4M0819332P	COOLANT HOSE WITH QUICK RELEASE COUPLING	4M0819332P COOLANT HOSE WITH QUICK RELEASE COUPLING	-	1	Enquire
13	-	COOLANT PIPE	COOLANT PIPE SEE ILLUSTRATION :- 121-080	-	-	Enquire
14	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP 23X12	-	2	Enquire
15	-	COOLANT PIPE	COOLANT PIPE NOT AVAILABLE	-	-	Enquire
15	P2121071F	COOLANT PIPE	P2121071F COOLANT PIPE	-	1	Enquire
16	P2121077	CLAMPING PLATE	P2121077 CLAMPING PLATE	-	1	Enquire
17	P2121193E	COOLANT PIPE	P2121193E COOLANT PIPE	-	1	Enquire
18	P2121164A	COOLANT PIPE	P2121164A COOLANT PIPE	-	1	Enquire
19	P2121054A	COOLANT HOSE	P2121054A COOLANT HOSE	-	1	Enquire
20	P2121093	BRACKET FOR ADDITIONAL COOLANT PUMP	P2121093 BRACKET FOR ADDITIONAL COOLANT PUMP	-	1	Enquire
21	6H121601M	COOLANT PUMP	6H121601M COOLANT PUMP	-	1	Enquire
22	6M121052E	COOLANT HOSE	6M121052E COOLANT HOSE	-	-	Enquire
23	P2121089	COOLANT CONNECTION	P2121089 COOLANT CONNECTION	-	-	Enquire
24	N90687001	SPRING BAND CLAMP	N90687001 SPRING BAND CLAMP 27X12	-	2	Enquire
25	WHT007714	SPRING BAND CLAMP	WHT007714 SPRING BAND CLAMP 27X12	-	-	Enquire
26	6B145917A	SPRING BAND CLAMP	6B145917A SPRING BAND CLAMP 21X12	-	2	Enquire
27	WHT002306	SELF-TAPPING SCREW	WHT002306 SELF-TAPPING SCREW 3,5X12	-	1	Enquire
28	N91044801	DOUBLE STUD WITH HEXAGON DRIVE	N91044801 DOUBLE STUD WITH HEXAGON DRIVE M6X14/M6X14	-	1	Enquire
29	N10259903	CLAMP	N10259903 CLAMP 14X15	-	1	Enquire
30	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING M6	-	1	Enquire
