Name: OIL SUMP
Rating: 5.0 (1 reviews)

View All

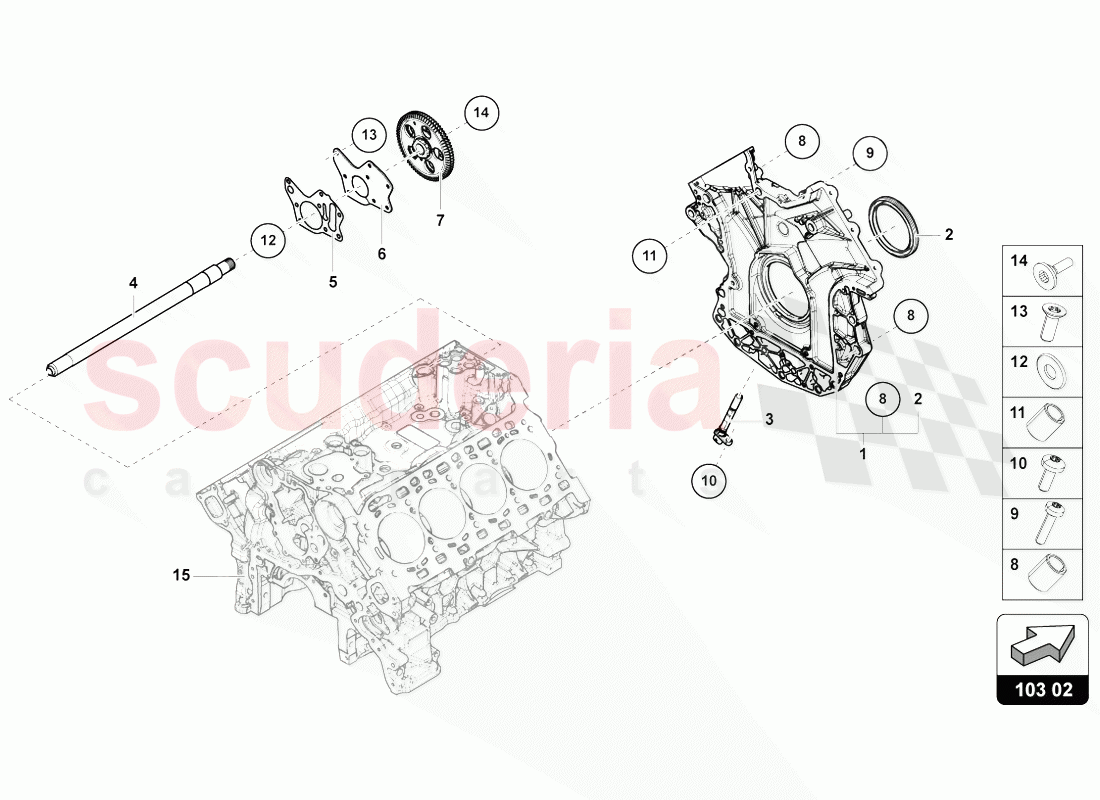

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	P2103171B	SEALING FLANGE W/ SEALING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6E103051J	SHAFT OIL SEAL	$52.98	To Order

Photo	Part No	Description	Price (each)	Stock
	57906433B	IMPULSE SENDER	$131.46	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103567	INTERMEDIATE SHAFT	$102.29	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103147	SEAL	$19.57	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103407	COVER PLATE	$34.54	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103293G	INTERMEDIATE GEAR WITH HUB	$248.68	To Order

Photo	Part No	Description	Price (each)	Stock
	22103139B	DOWEL SLEEVE	$7.80	To Order

Photo	Part No	Description	Price (each)	Stock
	N10413405	HEXAGON SOCKET FLAT HEAD BOLT M6 X 25	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	$0.77	To Order

Photo	Part No	Description	Price (each)	Stock
	12301153H	DOWEL SLEEVE	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	P2103323	THRUST WASHER	$15.07	To Order

Photo	Part No	Description	Price (each)	Stock
	N10448506	COUNTERSUNK BOLT	$0.74	To Order

Photo	Part No	Description	Price (each)	Stock
	6M103448	LOCATING BOLT	$4.43	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	P2103171B	SEALING FLANGE W/ SEALING RING	P2103171B SEALING FLANGE W/ SEALING RING REAR	-	-	Enquire
2	6E103051J	SHAFT OIL SEAL	6E103051J SHAFT OIL SEAL	$52.98	-
3	57906433B	IMPULSE SENDER	57906433B IMPULSE SENDER	$131.46	1
4	P2103567	INTERMEDIATE SHAFT	P2103567 INTERMEDIATE SHAFT	$102.29	-
5	P2103147	SEAL	P2103147 SEAL	$19.57	-
6	P2103407	COVER PLATE	P2103407 COVER PLATE	$34.54	-
7	P2103293G	INTERMEDIATE GEAR WITH HUB	P2103293G INTERMEDIATE GEAR WITH HUB REAR	$248.68	-
8	22103139B	DOWEL SLEEVE	22103139B DOWEL SLEEVE 16X13,5	$7.80	2
9	N10413405	HEXAGON SOCKET FLAT HEAD BOLT M6 X 25	N10413405 HEXAGON SOCKET FLAT HEAD BOLT M6 X 25 M6X25	$1.74 MSRP: ~~7.26~~ (76% off)	17
10	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	N91126601 OVAL HEXAGON SOCKET HEAD BOLT M6X16	$0.77 MSRP: ~~7.30~~ (89.5% off)	1
11	12301153H	DOWEL SLEEVE	12301153H DOWEL SLEEVE 12X13,5	$1.43	-
12	P2103323	THRUST WASHER	P2103323 THRUST WASHER	$15.07	-
13	N10448506	COUNTERSUNK BOLT	N10448506 COUNTERSUNK BOLT M6X16	$0.74	-
14	6M103448	LOCATING BOLT	6M103448 LOCATING BOLT M10X30	$4.43	-
15	-	CRANKCASE	CRANKCASE SEE ILLUSTRATION .- 103-010	-	-	Enquire
15	6M103448	LOCATING BOLT	6M103448 LOCATING BOLT M10X30	$4.43	-
