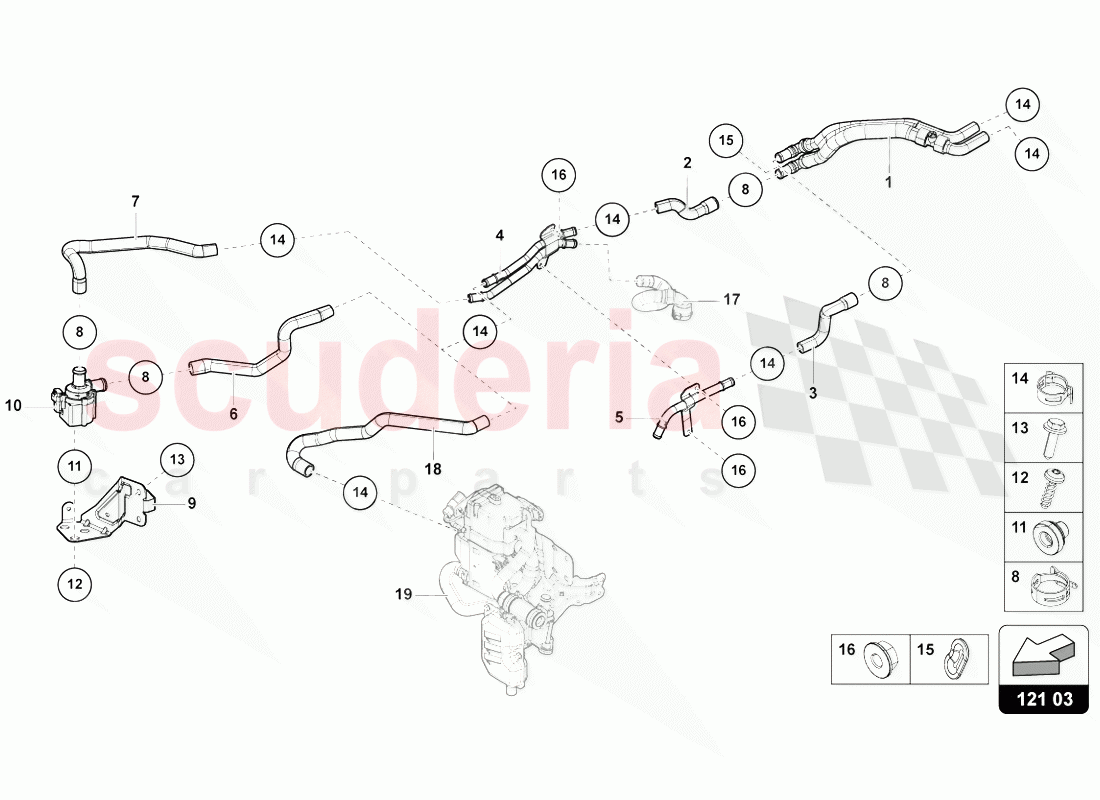

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4M0819350F	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0265372C	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0265374R	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819857C	COOLANT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819372DH	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819374CG	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0265347T	COOLANT HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819267F	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6H121601M	COOLANT PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G0129234	RUBBER BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002306	SELF-TAPPING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90994403	HEXAGON HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90686901	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819345B	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508210	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		COOLANT HOSE WITH QUICK RELEASE COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0819025N	ADDITIONAL COOLANT PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4M0265353AF	COOLANT HOSE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4M0819350F	COOLANT HOSE	4M0819350F COOLANT HOSE	-	1	Enquire
2	4M0265372C	COOLANT HOSE	4M0265372C COOLANT HOSE	-	1	Enquire
3	4M0265374R	COOLANT HOSE	4M0265374R COOLANT HOSE	-	1	Enquire
4	4M0819857C	COOLANT PIPE	4M0819857C COOLANT PIPE RIGHT UPPER	-	1	Enquire
5	4M0819927	COOLANT PIPE	4M0819927 COOLANT PIPE	-	-	Enquire
5	4M0819927F	COOLANT PIPE	4M0819927F COOLANT PIPE	-	1	Enquire
6	4M0819372DH	COOLANT HOSE	4M0819372DH COOLANT HOSE	-	1	Enquire
7	4M0819374CG	COOLANT HOSE	4M0819374CG COOLANT HOSE	-	1	Enquire
8	4M0265347T	COOLANT HOSE	4M0265347T COOLANT HOSE	-	1	Enquire
9	4M0819267F	BRACKET	4M0819267F BRACKET	-	1	Enquire
10	6H121601M	COOLANT PUMP	6H121601M COOLANT PUMP	-	1	Enquire
11	4G0129234	RUBBER BUSH	4G0129234 RUBBER BUSH	-	3	Enquire
12	WHT002306	SELF-TAPPING SCREW	WHT002306 SELF-TAPPING SCREW 3,5X12	-	3	Enquire
13	N90994403	HEXAGON HEAD BOLT (COMBI)	N90994403 HEXAGON HEAD BOLT (COMBI) M8X30	-	2	Enquire
14	N90686901	SPRING BAND CLAMP	N90686901 SPRING BAND CLAMP 23X12	-	4	Enquire
15	4M0819345B	GROMMET	4M0819345B GROMMET	-	1	Enquire
16	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6	-	3	Enquire
17	-	COOLANT HOSE WITH QUICK RELEASE COUPLING	COOLANT HOSE WITH QUICK RELEASE COUPLING SEE ILLUSTRATION :- 121-070	-	-	Enquire
18	4M0819025N	ADDITIONAL COOLANT PUMP	4M0819025N ADDITIONAL COOLANT PUMP	-	1	Enquire
19	4M0265353AF	COOLANT HOSE	4M0265353AF COOLANT HOSE	-	1	Enquire
20	-	PRE-HEATER	PRE-HEATER SEE ILLUSTRATION 261.01	-	-	Enquire
