Auxiliary Frame of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

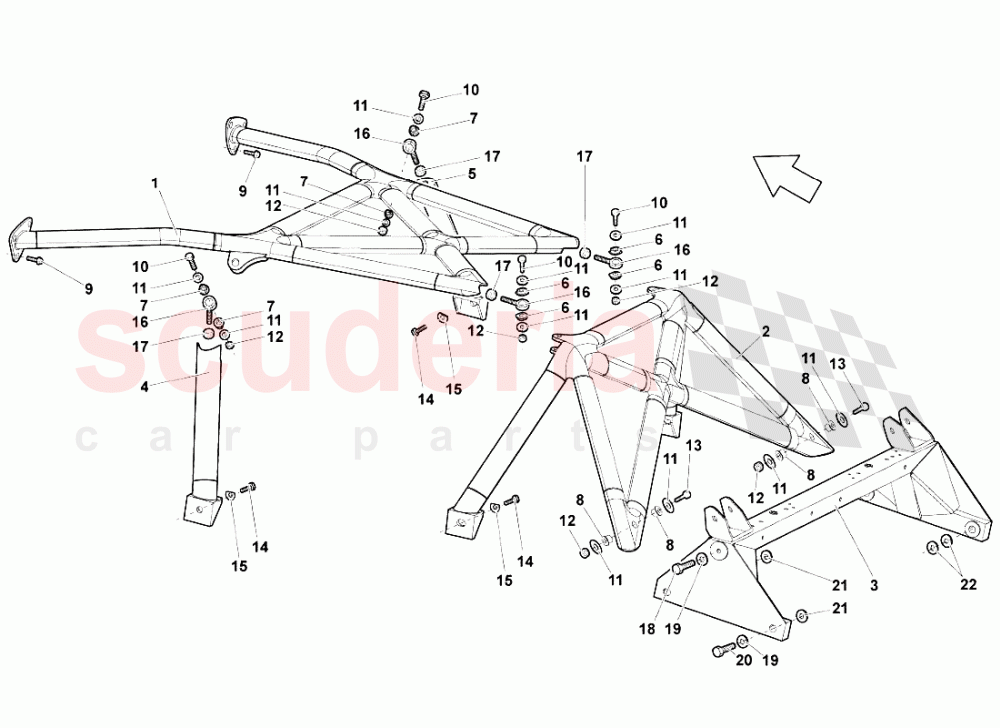

Lamborghini Murcielago LP640 Roadster - Auxiliary Frame

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	417825349A	STEEL FRAME UPPER ELEMENT	417825349A STEEL FRAME UPPER ELEMENT	$1,740.59	1
001	417825349B	UPPER ELEMENT OF CARBON FRAME	417825349B UPPER ELEMENT OF CARBON FRAME	$15,645.12	1
002	417825350B	REAR ELEMENT OF CARBON FRAME	417825350B REAR ELEMENT OF CARBON FRAME	$14,516.07	1
002	417825350C	STEEL FRAME LOWER ELEMENT	417825350C STEEL FRAME LOWER ELEMENT	$1,841.41	1
003	417813235A	MOBILE REAR CROSS MEMBER	417813235A MOBILE REAR CROSS MEMBER	-	1	Enquire
004	417825431A	LEFT ARM OF STEEL FRAME	417825431A LEFT ARM OF STEEL FRAME	$166.67	1
004	417825431B	LEFT ARM OF CARBON FRAME	417825431B LEFT ARM OF CARBON FRAME	$3,077.96	1
005	417825432B	RIGHT ARM OF CARBON FRAME	417825432B RIGHT ARM OF CARBON FRAME	$3,077.96	1
005	417825432A	RIGHT ARM OF STEEL FRAME	417825432A RIGHT ARM OF STEEL FRAME	$166.67	1
006	417810250	BUSHING (FOR CARBON FRAME)	417810250 BUSHING (FOR CARBON FRAME)	$68.02	4
007	417810249	BUSHING (FOR CARBON FRAME)	417810249 BUSHING (FOR CARBON FRAME)	$63.32	4
008	417813455	BUSHING (FOR CARBON FRAME)	417813455 BUSHING (FOR CARBON FRAME)	$63.32	4
009	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	$1.74	6
010	N10197214	SCREW M10X45	N10197214 SCREW M10X45	$2.63	4
011	N01152722	WASHER 10,5X21X2	N01152722 WASHER 10,5X21X2	$17.47	12
012	N10155213	NUT M10	N10155213 NUT M10	$2.15 MSRP: ~~7.03~~ (69.4% off)	6
013	N10277906	SCREW M10X1.5X50	N10277906 SCREW M10X1.5X50	$8.66	2
014	N90166803	SCREW M8X28 (WITH 4 POINTS BELTS)	N90166803 SCREW M8X28 (WITH 4 POINTS BELTS)	$1.47 MSRP: ~~7.21~~ (79.6% off)	4
015	410810368	WASHER (FOR CARBON FRAME)	410810368 WASHER (FOR CARBON FRAME)	$30.59	4
016	417801931A	BALL JOINT	417801931A BALL JOINT	$264.79	4
018	N0147519	SCREW M8X50	N0147519 SCREW M8X50	$12.84	2
019	N90840802	WASHER	N90840802 WASHER	$0.40 MSRP: ~~7.33~~ (94.5% off)	6
020	N01034518	SCREW M8X45	N01034518 SCREW M8X45	$6.00	4
021	WHT001397	WASHER	WHT001397 WASHER	$0.19 MSRP: ~~7.37~~ (97.4% off)	6
022	400407739	1.0 MM SHIM	400407739 1.0 MM SHIM	$3.55	24
022	400407740	1.5 MM SHIM	400407740 1.5 MM SHIM	$4.06	24
022	400407749	0.5 MM SHIM	400407749 0.5 MM SHIM	$3.16	24
022	400407742	2.0 MM SHIM	400407742 2.0 MM SHIM	$4.64	24
