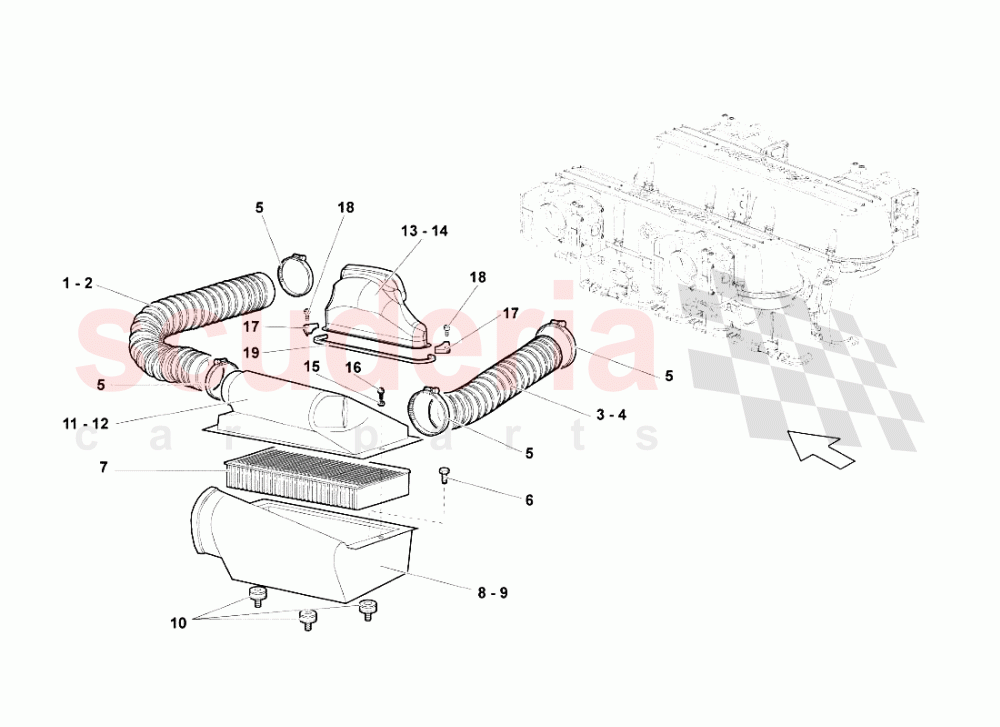

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7M129627A	PIPE	7M129627A PIPE	$182.81	1
002	7M129627A	PIPE	7M129627A PIPE	$182.81	1
003	7M129627A	PIPE	7M129627A PIPE	$182.81	1
004	7M129627A	PIPE	7M129627A PIPE	$182.81	1
005	N0245034	CLAMP	N0245034 CLAMP	$6.31	8
006	N0902324	SCREW M6X10	N0902324 SCREW M6X10	$1.04 MSRP: ~~7.25~~ (85.7% off)	6
007	7M133843	Air Filter	7M133843 Air Filter	$28.13	2
008	7M133837B	LOWER LH AIR FILTER CASE	7M133837B LOWER LH AIR FILTER CASE	$3,998.66	1
009	7M133838B	LOWER RH AIR FILTER CASE	7M133838B LOWER RH AIR FILTER CASE	$3,998.66	1
010	7L133741	SUPPORT	7L133741 SUPPORT	$14.80	6
011	7M133919A	LH COVER	7M133919A LH COVER	$3,669.34	1
012	7M133920A	RH COVER	7M133920A RH COVER	$3,669.34	1
013	7M133609	LH CONVEYOR	7M133609 LH CONVEYOR	$1,411.29	1
014	7M133608	RH CONVEYOR	7M133608 RH CONVEYOR	$1,411.29	1
015	N01166623	WASHER	N01166623 WASHER	$1.23	6
016	WHT003074	SCREW M6X22	WHT003074 SCREW M6X22	$36.28	6
017	7M133494	STOP	7M133494 STOP	$53.12	4
018	N10456201	SCREW (M6X25)	N10456201 SCREW (M6X25)	$0.77 MSRP: ~~7.30~~ (89.5% off)	4
019	7M133594	GASKET	7M133594 GASKET	$14.46	2
