Crankshaft - Connecting Rod

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Crankshaft - Connecting Rod

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

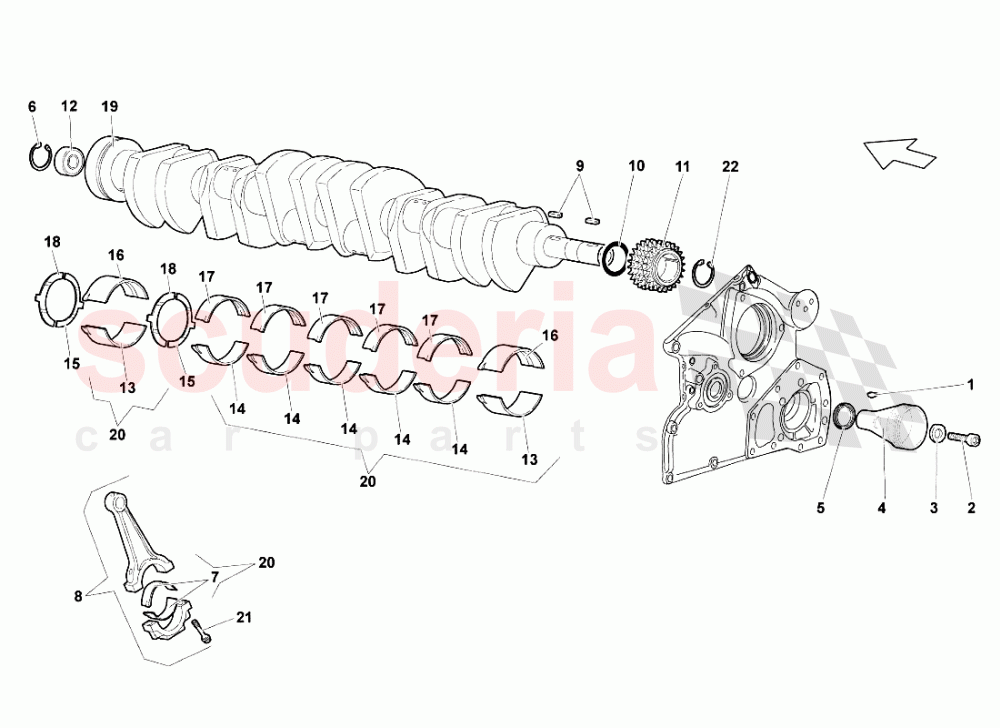

Crankshaft - Connecting Rod of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 R1470158
PULLEY (ORDERABLE FOR CAMPAING NR LB825-A.02.08) 		- 1 Enquire
001 410109445
KEY 		- 1 Enquire
002 N10717901
SCREW M16X1.5X50 		- 1 Enquire
003 WHT003056
WASHER 		- 1 Enquire
004 7M105255D
PULLEY 		- 1 Enquire
005 WHT003103
SEAL RING 		- 1 Enquire
006 7M109381
RETAINING RING 		- 1 Enquire
007 7M105701
Brass 		- 24 Enquire
008 7M105401
COMPLETE CONNECTING ROD 		- 12 Enquire
009 410109445
KEY 		- 2 Enquire
010 WHT003062
SEAL RING 		- 1 Enquire
011 7M105209A
GEAR 		- 1 Enquire
012 410109264
BEARING 		- 1 Enquire
013 7M105707A
HALF BEARING 		- 2 Enquire
014 7M105707C
HALF BEARING 		- 5 Enquire
015 7M105531A
AXIAL HALF BEARING 		- 2 Enquire
016 7M105707
HALF BEARING 		- 2 Enquire
017 7M105707D
HALF BEARING 		- 5 Enquire
018 7M105531A
AXIAL HALF BEARING 		- 2 Enquire
019 7M105019D
CRANKSHAFT 		- 1 Enquire
020 R1470108
SET OF BUSHES 		- 1 Enquire
021 WHT003252
BOLT HEX HEAD WITH SHOULDER SELF-LOCKING 		- 24 Enquire
022 7M109382
RETAINING RING 35X33 		- 1 Enquire
