Left Cylinder Head And Cover of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

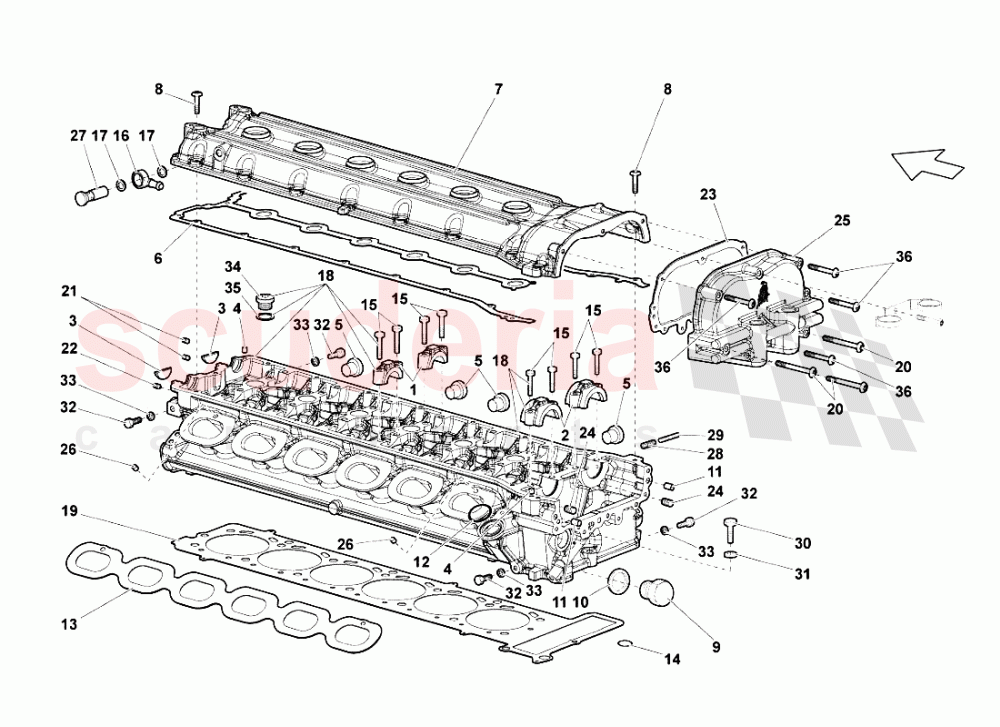

Lamborghini Murcielago LP640 Roadster - Left Cylinder Head And Cover

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7M103127A	SUPPORT	7M103127A SUPPORT	-	12	Enquire
002	7M103285B	SUPPORT	7M103285B SUPPORT	-	2	Enquire
003	7M103113	COVER	7M103113 COVER	-	2	Enquire
004	N10703201	DOWEL	N10703201 DOWEL	-	2	Enquire
005	N01190311	PLUG	N01190311 PLUG	-	4	Enquire
006	7M103483C	GASKET	7M103483C GASKET	-	1	Enquire
007	7M103475D	COVER	7M103475D COVER	-	1	Enquire
008	N91071702	HEXAGON SOCKET FLAT HEAD BOLT	N91071702 HEXAGON SOCKET FLAT HEAD BOLT	-	17	Enquire
009	7M103035	PLUG	7M103035 PLUG	-	1	Enquire
010	WHT003049	WASHER	WHT003049 WASHER	-	1	Enquire
011	7M109221A	BUSHING	7M109221A BUSHING	-	2	Enquire
012	WHT003062	SEAL RING	WHT003062 SEAL RING	-	1	Enquire
013	7M129717B	GASKET	7M129717B GASKET	-	1	Enquire
014	WHT003522	SEAL RING	WHT003522 SEAL RING	-	1	Enquire
015	N10554005	ROUND HD. SCREW	N10554005 ROUND HD. SCREW	-	28	Enquire
016	7M103606A	PIPE FITTING	7M103606A PIPE FITTING	-	1	Enquire
017	WHT003272	WASHER 10.50X15.50X1.5	WHT003272 WASHER 10.50X15.50X1.5	-	2	Enquire
018	460537002	LH CYLINDER HEAD (COMPLETE)	460537002 LH CYLINDER HEAD (COMPLETE)	-	1	Enquire
019	7M103149B	LH GASKET	7M103149B LH GASKET	-	1	Enquire
020	N10562603	ROUND HD. SCREW	N10562603 ROUND HD. SCREW	-	3	Enquire
021	7M103545	PLUG	7M103545 PLUG	-	2	Enquire
022	7M103545	PLUG	7M103545 PLUG	-	1	Enquire
023	7M109091	GASKET	7M109091 GASKET	-	1	Enquire
024	7M103545	PLUG	7M103545 PLUG	-	2	Enquire
025	7M109144F	LHHEAD PHASE TRANSFORMER ASSEMBLY	7M109144F LHHEAD PHASE TRANSFORMER ASSEMBLY	-	1	Enquire
026	7M133615	PIN	7M133615 PIN	-	2	Enquire
027	WHT001669	SCREW	WHT001669 SCREW	-	1	Enquire
028	8840802	HELI-COIL	8840802 HELI-COIL	-	12	Enquire
029	WHT003028	THREADED PIN	WHT003028 THREADED PIN	-	12	Enquire
030	N01033520	SCREW M8X35	N01033520 SCREW M8X35	-	2	Enquire
031	WHT000771	WASHER	WHT000771 WASHER	-	2	Enquire
032	N0102358	HEXAGON BOLT	N0102358 HEXAGON BOLT	-	3	Enquire
033	N0138302	Washer Copper 8 x 1MM	N0138302 Washer Copper 8 x 1MM	-	3	Enquire
034	N91155901	SEALING SCREW PLUG M16 X 1.5	N91155901 SEALING SCREW PLUG M16 X 1.5	-	7	Enquire
035	N0138481	WASHER	N0138481 WASHER	-	7	Enquire
036	N10582103	OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	N10582103 OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	-	4	Enquire
