Intake Manifold 2

Lamborghini Murcielago LP640 Roadster

Find Your Part

Lamborghini Murcielago LP640 Roadster - Intake Manifold 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

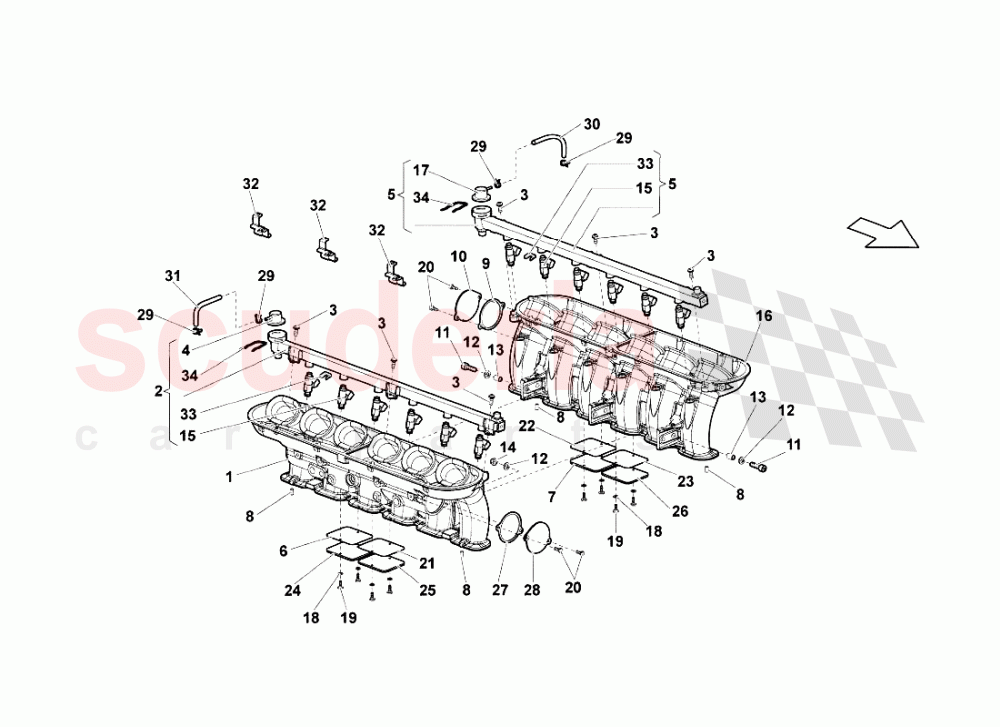

Intake Manifold 2 of Lamborghini Lamborghini Murcielago LP640 Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 7M133151B
MANIFOLD 		- 1 Enquire
002 7M133681F
LH PIPE 		- 1 Enquire
003 N10451405
OVAL HEXAGON SOCKET HEAD BOLT 		- 1 Enquire
004 7M133035A
REGULATOR 		- 1 Enquire
005 7M133681E
RH PIPE 		- 1 Enquire
006 7M133075A
GASKET 		- 1 Enquire
007 7M133100B
COVER 		- 1 Enquire
008 7M133615
PIN 		- 1 Enquire
009 7M133026B
GASKET 		- 1 Enquire
010 7M133211A
FLANGE 		- 1 Enquire
011 N10518404
SCREW M8X30 		- 6 Enquire
012 WHT003096
WASHER 		- 6 Enquire
013 7M103143A
DOWEL SLEEVE 		- 2 Enquire
015 7M906031A
INJECTOR 		- 12 Enquire
016 7M133151B
MANIFOLD 		- 1 Enquire
017 7M133035A
REGULATOR 		- 1 Enquire
018 N0115557
WASHER 		- 8 Enquire
019 N10627501
SCREW M4X10 		- 8 Enquire
020 WHT003107
SCREW M5X16 		- 4 Enquire
021 7M133075A
GASKET 		- 1 Enquire
022 7M133075A
GASKET 		- 1 Enquire
023 7M133075A
GASKET 		- 1 Enquire
024 7M133100B
COVER 		- 1 Enquire
025 7M133100B
COVER 		- 1 Enquire
026 7M133100B
COVER 		- 1 Enquire
027 7M133026B
GASKET 		- 1 Enquire
028 7M133211A
FLANGE 		- 1 Enquire
029 400127217
CLAMP 		- 4 Enquire
030 7M133264C
VACUUM HOSE 		- 1 Enquire
031 7M133264B
VACUUM HOSE 		- 1 Enquire
032 7M103933
BRACKET 		- 3 Enquire
033 7M133047
CLIP 		- 12 Enquire
034 37133047A
CLIP 		- 2 Enquire
