Lamborghini Murcielago LP640 Roadster - Secondary Air System

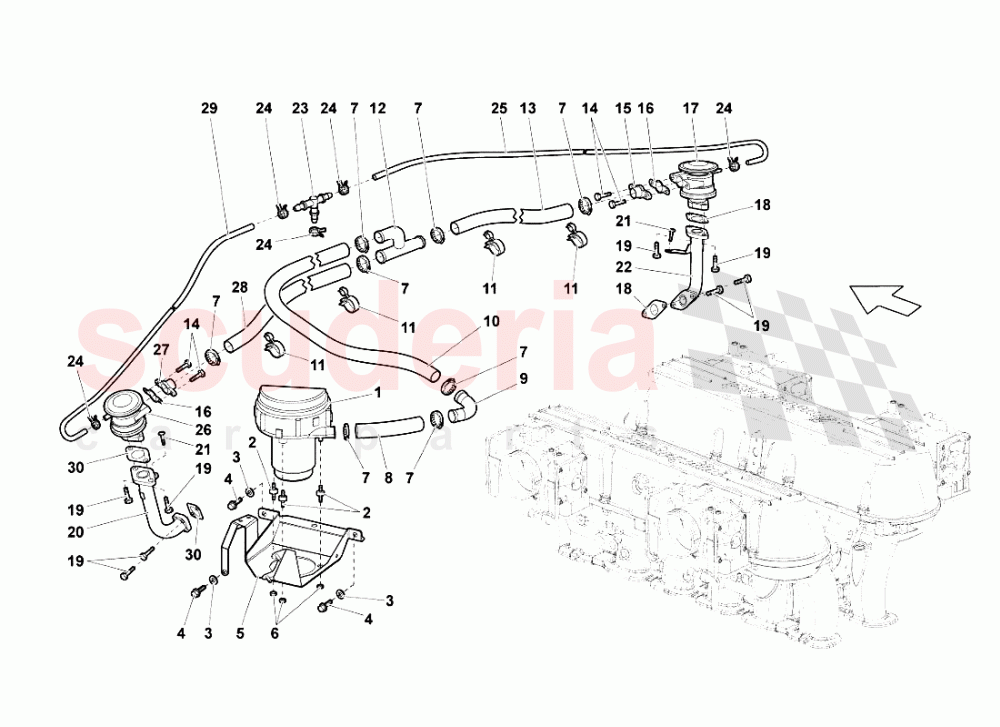

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	78906601F	PUMP	78906601F PUMP	$713.70	1
002	400972081C	FLEXIBLE SUPPORT	400972081C FLEXIBLE SUPPORT	$18.41	3
003	WHT002961	WASHER	WHT002961 WASHER	$0.42	3
004	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	$0.95	3
005	410906613B	BRACKET	410906613B BRACKET	$85.62	1
006	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	3
007	N10255601	CLAMP	N10255601 CLAMP	$1.96 MSRP: ~~7.10~~ (72.4% off)	8
008	7M131371A	PIPE	7M131371A PIPE	$865.59	1
009	7M131163	CONNECTOR	7M131163 CONNECTOR	$43.89	1
010	7M131149B	PIPE	7M131149B PIPE	$599.47	1
011	N10291602	CLAMP	N10291602 CLAMP	$6.45	4
012	7M131598	CONNECTOR	7M131598 CONNECTOR	$154.58	1
013	7M131611C	PIPE (RIGHT-HAND)	7M131611C PIPE (RIGHT-HAND)	$732.53	1
014	N10338903	SCREW M6X16	N10338903 SCREW M6X16	$52.74	4
015	7L131585	PIPE FITTING	7L131585 PIPE FITTING	$100.41	1
016	7L131358	GASKET	7L131358 GASKET	$47.94	2
017	78131102N	PNEUMATIC VALVE	78131102N PNEUMATIC VALVE	$176.09	1
018	7M131354	GASKET (RIGHT-HAND)	7M131354 GASKET (RIGHT-HAND)	$12.93	2
019	N10338903	SCREW M6X16	N10338903 SCREW M6X16	$52.74	8
020	7M131584A	RH PIPE	7M131584A RH PIPE	$1,733.87	1
021	N90638102	ROUND HD. SCREW	N90638102 ROUND HD. SCREW	$1.43 MSRP: ~~7.25~~ (80.3% off)	2
022	7M131583A	LH PIPE	7M131583A LH PIPE	$173.39	1
023	7L133579	T-PIECE	7L133579 T-PIECE	$8.01	1
024	400127217	CLAMP	400127217 CLAMP	$0.40 MSRP: ~~7.33~~ (94.5% off)	5
025	7M131145A	PIPE	7M131145A PIPE	$27.10	1
026	78131102N	PNEUMATIC VALVE	78131102N PNEUMATIC VALVE	$176.09	1
027	7L131585	PIPE FITTING	7L131585 PIPE FITTING	$100.41	1
028	7M131611C	PIPE (RIGHT-HAND)	7M131611C PIPE (RIGHT-HAND)	$732.53	1
029	7M131145A	PIPE	7M131145A PIPE	$27.10	1
030	7M131354	GASKET (RIGHT-HAND)	7M131354 GASKET (RIGHT-HAND)	$12.93	2
