Intake Manifold 3 of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

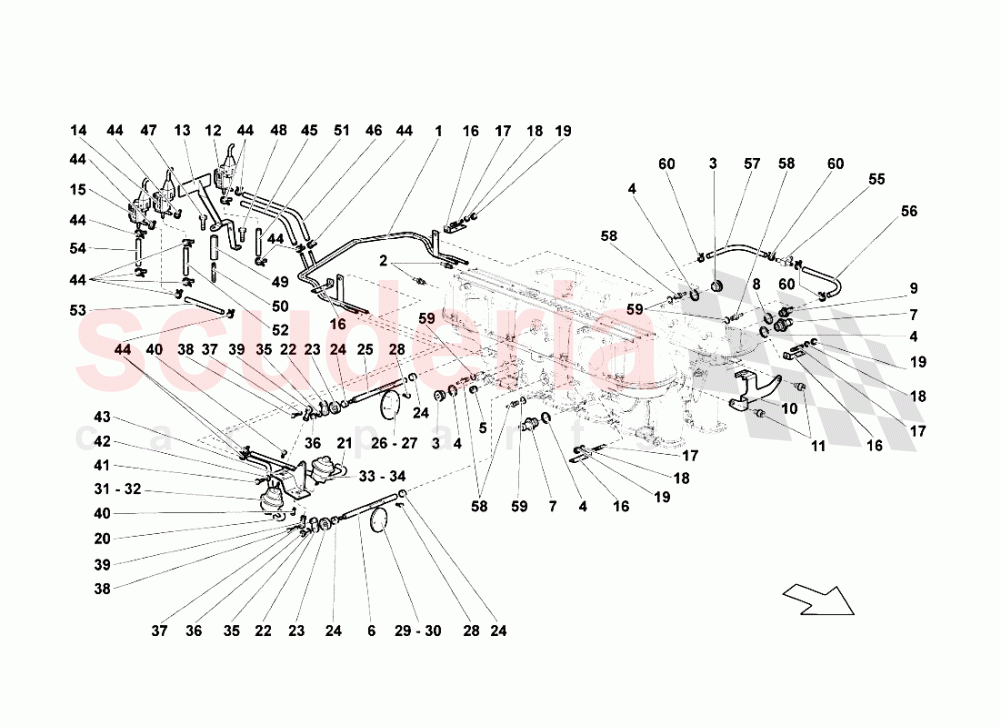

Lamborghini Murcielago LP640 Roadster - Intake Manifold 3

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7M133085B	PIPE	7M133085B PIPE	-	1	Enquire
002	7L115707	CONNECTOR	7L115707 CONNECTOR	-	2	Enquire
003	N91155901	SEALING SCREW PLUG M16 X 1.5	N91155901 SEALING SCREW PLUG M16 X 1.5	-	2	Enquire
004	N0138481	WASHER	N0138481 WASHER	-	4	Enquire
005	7M103545	PLUG	7M103545 PLUG	-	2	Enquire
006	7M129935B	SHAFT	7M129935B SHAFT	-	2	Enquire
007	7M133119A	CONNECTOR	7M133119A CONNECTOR	-	2	Enquire
008	WHT003047	WASHER	WHT003047 WASHER	-	1	Enquire
009	7M115113	CONNECTOR	7M115113 CONNECTOR	-	1	Enquire
012	77906283	SOLENOID VALVE	77906283 SOLENOID VALVE	-	1	Enquire
013	7M906287D	SUPPORT	7M906287D SUPPORT	-	1	Enquire
014	77906283	SOLENOID VALVE	77906283 SOLENOID VALVE	-	1	Enquire
015	77906283	SOLENOID VALVE	77906283 SOLENOID VALVE	-	1	Enquire
016	410971789A	BRACKET	410971789A BRACKET	-	4	Enquire
017	8300658	STUD BOLT M6X14	8300658 STUD BOLT M6X14	-	4	Enquire
018	WHT001197A	WASHER	WHT001197A WASHER	-	4	Enquire
019	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING	-	4	Enquire
020	7M133605A	PIPE (BLUE)	7M133605A PIPE (BLUE)	-	2	Enquire
021	7M133727A	PIPE (RED)	7M133727A PIPE (RED)	-	2	Enquire
022	7M129350A	LEVER	7M129350A LEVER	-	4	Enquire
023	WHT003087	OIL SEAL	WHT003087 OIL SEAL	-	4	Enquire
024	WHT003073	BUSHING	WHT003073 BUSHING	-	4	Enquire
025	7M129935E	SHAFT	7M129935E SHAFT	-	2	Enquire
026	7M133931A	VALVE	7M133931A VALVE	-	1	Enquire
027	7M133931A	VALVE	7M133931A VALVE	-	1	Enquire
028	WHT003089	SCREW M4X7	WHT003089 SCREW M4X7	-	8	Enquire
029	7M133931	VALVE	7M133931 VALVE	-	1	Enquire
030	7M133931	VALVE	7M133931 VALVE	-	1	Enquire
031	7M907327	ACTUATOR	7M907327 ACTUATOR	-	1	Enquire
032	7M907327	ACTUATOR	7M907327 ACTUATOR	-	1	Enquire
033	7M907327	ACTUATOR	7M907327 ACTUATOR	-	1	Enquire
034	7M907327	ACTUATOR	7M907327 ACTUATOR	-	1	Enquire
035	WHT001514	WASHER	WHT001514 WASHER	-	4	Enquire
036	WHT003021	NUT M8	WHT003021 NUT M8	-	4	Enquire
037	WHT003051A	WASHER	WHT003051A WASHER	-	4	Enquire
038	WHT003020	SCREW M3X12	WHT003020 SCREW M3X12	-	4	Enquire
039	7M129885	BALL JOINT	7M129885 BALL JOINT	-	4	Enquire
040	N91049601	OVAL HEAD PANEL SCREW (COMBI)	N91049601 OVAL HEAD PANEL SCREW (COMBI)	-	12	Enquire
041	N90612002	SCREW M6X14	N90612002 SCREW M6X14	-	4	Enquire
042	N01152427	WASHER	N01152427 WASHER	-	4	Enquire
043	7M907332A	SUPPORT	7M907332A SUPPORT	-	2	Enquire
044	400127217	CLAMP	400127217 CLAMP	-	12	Enquire
045	7M131847B	PIPE (BLUE)	7M131847B PIPE (BLUE)	-	1	Enquire
046	7M131846B	PIPE (RED)	7M131846B PIPE (RED)	-	1	Enquire
047	N90638102	ROUND HD. SCREW	N90638102 ROUND HD. SCREW	-	1	Enquire
048	N90638102	ROUND HD. SCREW	N90638102 ROUND HD. SCREW	-	1	Enquire
051	7M131845A	PIPE (RED)	7M131845A PIPE (RED)	-	1	Enquire
052	7M131853B	PIPE (BLUE)	7M131853B PIPE (BLUE)	-	1	Enquire
053	7M131493A	PIPE	7M131493A PIPE	-	1	Enquire
054	7M131492A	PIPE	7M131492A PIPE	-	1	Enquire
055	470133794A	T-PIECE	470133794A T-PIECE	-	2	Enquire
056	7M131850B	VACUUM HOSE	7M131850B VACUUM HOSE	-	2	Enquire
057	7M131208A	VACUUM HOSE	7M131208A VACUUM HOSE	-	2	Enquire
058	7M115113A	CONNECTOR	7M115113A CONNECTOR	-	4	Enquire
059	WHT001191	WASHER	WHT001191 WASHER	-	4	Enquire
060	N90686701	SPRING BAND CLAMP	N90686701 SPRING BAND CLAMP	-	10	Enquire
