Right Cylinder Head And Cover of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

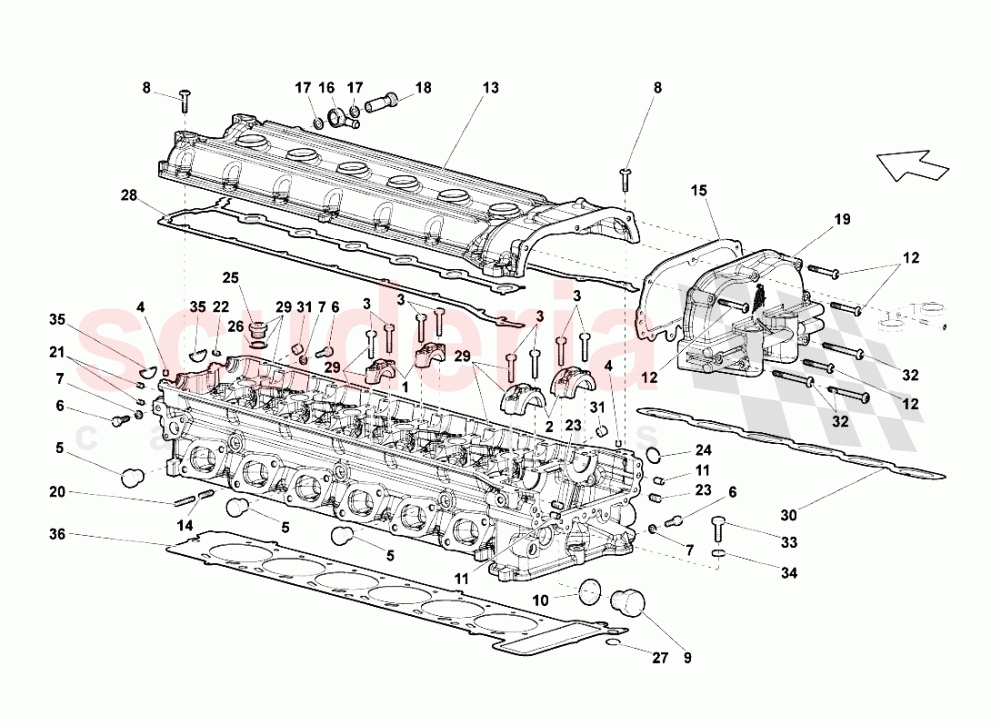

Lamborghini Murcielago LP640 Roadster - Right Cylinder Head And Cover

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7M103127A	SUPPORT	7M103127A SUPPORT	$108.21	12
002	7M103285B	SUPPORT	7M103285B SUPPORT	$115.61	2
003	N10554005	ROUND HD. SCREW	N10554005 ROUND HD. SCREW	$2.69	28
004	N10703201	DOWEL	N10703201 DOWEL	$2.23 MSRP: ~~7.03~~ (68.3% off)	2
005	N01190311	PLUG	N01190311 PLUG	$1.05 MSRP: ~~7.13~~ (85.3% off)	3
006	N0102358	HEXAGON BOLT	N0102358 HEXAGON BOLT	$154.58	3
007	N0138302	Washer Copper 8 x 1MM	N0138302 Washer Copper 8 x 1MM	$3.27 MSRP: ~~7.33~~ (55.4% off)	3
008	N91071702	HEXAGON SOCKET FLAT HEAD BOLT	N91071702 HEXAGON SOCKET FLAT HEAD BOLT	$0.85 MSRP: ~~7.21~~ (88.2% off)	17
009	7M103035	PLUG	7M103035 PLUG	$62.89	1
010	WHT003049	WASHER	WHT003049 WASHER	$5.85	1
011	7M109221A	BUSHING	7M109221A BUSHING	$32.81	2
012	N10582103	OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	N10582103 OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	$1.74 MSRP: ~~7.22~~ (75.9% off)	4
013	7M103476D	COVER	7M103476D COVER	$1,471.77	1
014	8840802	HELI-COIL	8840802 HELI-COIL	$3.24	12
015	7M109091	GASKET	7M109091 GASKET	$77.17	1
016	7M103606A	PIPE FITTING	7M103606A PIPE FITTING	$178.13	1
017	WHT003272	WASHER 10.50X15.50X1.5	WHT003272 WASHER 10.50X15.50X1.5	$0.68	2
018	WHT001669	SCREW	WHT001669 SCREW	$55.58	1
019	7M109144F	LHHEAD PHASE TRANSFORMER ASSEMBLY	7M109144F LHHEAD PHASE TRANSFORMER ASSEMBLY	$811.82	1
020	WHT003028	THREADED PIN	WHT003028 THREADED PIN	$22.30	12
021	7M103545	PLUG	7M103545 PLUG	$2.69	2
022	7M103545	PLUG	7M103545 PLUG	$2.69	1
023	7M103545	PLUG	7M103545 PLUG	$2.69	2
024	WHT003062	SEAL RING	WHT003062 SEAL RING	$6.61	1
025	N91155901	SEALING SCREW PLUG M16 X 1.5	N91155901 SEALING SCREW PLUG M16 X 1.5	$13.68	7
026	N0138481	WASHER	N0138481 WASHER	$0.70 MSRP: ~~7.28~~ (90.4% off)	7
027	WHT003522	SEAL RING	WHT003522 SEAL RING	$5.51	1
028	7M103484C	GASKET	7M103484C GASKET	$295.02	1
029	460537001	RH CYLINDER HEAD (COMPLETE)	460537001 RH CYLINDER HEAD (COMPLETE)	$13,111.37	1
030	7M129717B	GASKET	7M129717B GASKET	$143.70	1
031	7M133615	PIN	7M133615 PIN	$8.66	2
032	N10562603	ROUND HD. SCREW	N10562603 ROUND HD. SCREW	$1.89 MSRP: ~~7.13~~ (73.5% off)	3
033	N01033520	SCREW M8X35	N01033520 SCREW M8X35	$1.55 MSRP: ~~7.19~~ (78.4% off)	2
034	WHT000771	WASHER	WHT000771 WASHER	$1.19	2
035	7M103113	COVER	7M103113 COVER	$115.09	2
036	7M103148B	RH GASKET	7M103148B RH GASKET	$4,475.80	1
