Rear Differential Case of Lamborghini Lamborghini Murcielago LP640

View All

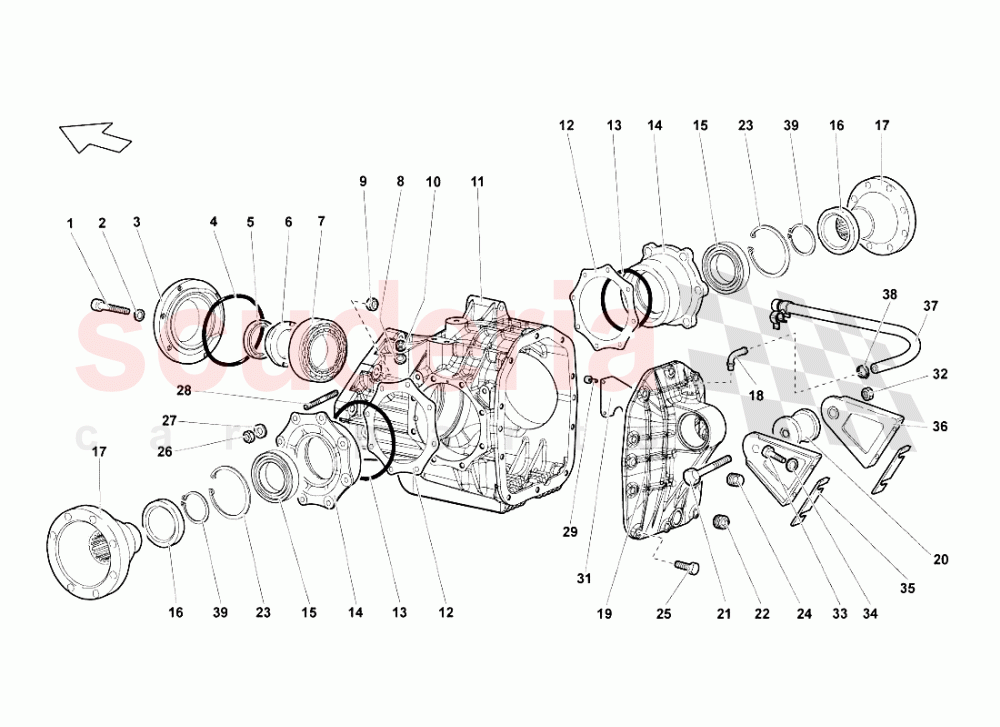

Lamborghini Murcielago LP640 - Rear Differential Case

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N91126601	OVAL HEXAGON SOCKET HEAD BOLT	N91126601 OVAL HEXAGON SOCKET HEAD BOLT	-	6	Enquire
003	B9525584A	FLANGE	B9525584A FLANGE	-	1	Enquire
004	WHT002222	SEAL RING	WHT002222 SEAL RING	-	1	Enquire
005	B9525596	SEAL RING	B9525596 SEAL RING	-	1	Enquire
006	B9517606	RING NUT	B9517606 RING NUT	-	1	Enquire
007	A5409123A	BEARING	A5409123A BEARING	-	1	Enquire
008	N0138495	SEAL RING	N0138495 SEAL RING	-	1	Enquire
009	N10261311	HEXAGON NUT	N10261311 HEXAGON NUT	-	1	Enquire
010	N0160276	PLUG	N0160276 PLUG	-	1	Enquire
011	B9507103A	REAR DIFFERENTIAL CASE	B9507103A REAR DIFFERENTIAL CASE	-	1	Enquire
012	B9517242K	0.05 mm ADJUSTMENT SHIM	B9517242K 0.05 mm ADJUSTMENT SHIM	-	2	Enquire
012	B9517242F	0.5 MM ADJUSTMENT SHIM	B9517242F 0.5 MM ADJUSTMENT SHIM	-	2	Enquire
012	B9517242H	0.2 mm ADJUSTMENT SHIM	B9517242H 0.2 mm ADJUSTMENT SHIM	-	2	Enquire
012	B9517242G	0.3 mm ADJUSTMENT SHIM	B9517242G 0.3 mm ADJUSTMENT SHIM	-	2	Enquire
012	B9517242J	0.1 mm ADJUSTMENT SHIM	B9517242J 0.1 mm ADJUSTMENT SHIM	-	2	Enquire
013	WHT002221	GASKET	WHT002221 GASKET	-	2	Enquire
014	B9501312A	FLANGE	B9501312A FLANGE	-	2	Enquire
015	B9501660	BEARING	B9501660 BEARING	-	2	Enquire
016	B9525583	OIL SEAL	B9525583 OIL SEAL	-	2	Enquire
017	B9501265B	FLANGE	B9501265B FLANGE	-	2	Enquire
018	2D525118B	ELBOW FITTING	2D525118B ELBOW FITTING	-	1	Enquire
019	B9507145B	COVER	B9507145B COVER	-	1	Enquire
020	B9501144	support mount	B9501144 support mount	-	1	Enquire
021	WHT003561	SCREW M14X80	WHT003561 SCREW M14X80	-	1	Enquire
022	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	-	1	Enquire
023	N0122981	RETAINING RING 75X2,5	N0122981 RETAINING RING 75X2,5	-	2	Enquire
024	86301114A	PLUG	86301114A PLUG	-	1	Enquire
025	N0903168	SCREW M8X30	N0903168 SCREW M8X30	-	10	Enquire
026	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	16	Enquire
027	410422395	WASHER	410422395 WASHER	-	16	Enquire
028	N04440510	STUD BOLT M8X22	N04440510 STUD BOLT M8X22	-	16	Enquire
029	N90305304	SCREW M6X10	N90305304 SCREW M6X10	-	3	Enquire
031	B9501716A	SHEET	B9501716A SHEET	-	1	Enquire
032	WHT003614	NUT	WHT003614 NUT	-	1	Enquire
033	N01033520	SCREW M8X35	N01033520 SCREW M8X35	-	4	Enquire
034	WHT002962	WASHER 14X8.4X1.5	WHT002962 WASHER 14X8.4X1.5	-	4	Enquire
035	410813761A	PLATE	410813761A PLATE	-	14	Enquire
036	410813297	SUPPORT	410813297 SUPPORT	-	2	Enquire
037	B9525049	BREATHER PIPE	B9525049 BREATHER PIPE	-	1	Enquire
038	N90686701	SPRING BAND CLAMP	N90686701 SPRING BAND CLAMP	-	1	Enquire
039	N0123722	RETAINING RING 45X1,75	N0123722 RETAINING RING 45X1,75	-	2	Enquire
