Driven Shaft of Lamborghini Lamborghini Murcielago LP640

View All

Lamborghini Murcielago LP640 - Driven Shaft

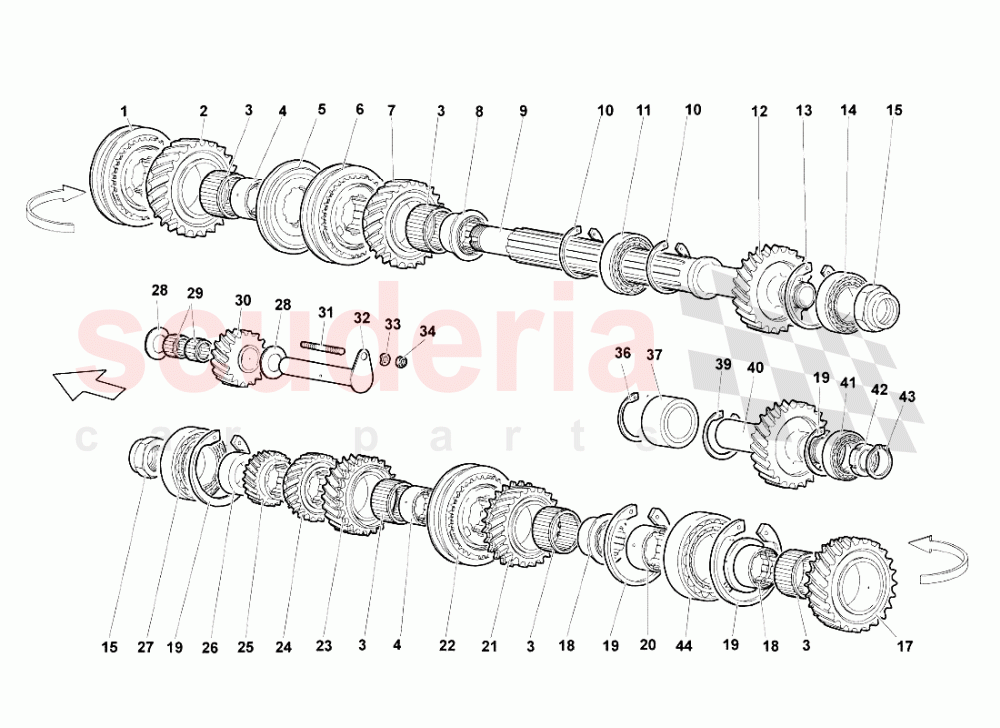

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	86311244B	SYNCHRONIZER T.C. D.100+CROWN GEAR	86311244B SYNCHRONIZER T.C. D.100+CROWN GEAR	-	1	Enquire
002	86311250F	FIRST GEAR ASSEMBLY linked to the ref. 9 tav. 311.02.00)	86311250F FIRST GEAR ASSEMBLY linked to the ref. 9 tav. 311.02.00)	-	1	Enquire
003	86311228A	Roller Bearing	86311228A Roller Bearing	-	5	Enquire
004	86301374A	BUSHING	86301374A BUSHING	-	2	Enquire
005	86311279A	SHIM ADJUSTMENT	86311279A SHIM ADJUSTMENT	-	1	Enquire
006	86311762C	SYNCHRONIZING GEAR D.82 CROWN GEAR	86311762C SYNCHRONIZING GEAR D.82 CROWN GEAR	-	1	Enquire
007	86311532F	REVERSE GEAR ASSEMBLY SYNCHRO	86311532F REVERSE GEAR ASSEMBLY SYNCHRO	-	1	Enquire
008	86311423B	INNER RING	86311423B INNER RING	-	1	Enquire
009	86311195F	SHAFT	86311195F SHAFT	-	1	Enquire
010	WHT003585	SEAL RING	WHT003585 SEAL RING	-	2	Enquire
011	86301609	BEARING 085	86301609 BEARING 085	-	1	Enquire
012	86311348B	GEAR	86311348B GEAR	-	1	Enquire
013	WHT003573	RETAINING RING	WHT003573 RETAINING RING	-	1	Enquire
014	86301897	BEARING	86301897 BEARING	-	1	Enquire
015	86301618	RING NUT	86301618 RING NUT	-	2	Enquire
017	86311270E	2 GEAR ASSEMBLY	86311270E 2 GEAR ASSEMBLY	-	1	Enquire
018	86311533A	INNER RING	86311533A INNER RING	-	2	Enquire
019	WHT003584	SEAL RING	WHT003584 SEAL RING	-	4	Enquire
020	86311187B	INNER RING	86311187B INNER RING	-	1	Enquire
021	86311129B	THIRD GEAR ASSEMBLY	86311129B THIRD GEAR ASSEMBLY	-	1	Enquire
022	86311309B	SYNCHRONIZING GEAR D.71/76 + CROWN GEAR	86311309B SYNCHRONIZING GEAR D.71/76 + CROWN GEAR	-	1	Enquire
023	86311145C	FOURTH GEAR ASSEMBLY	86311145C FOURTH GEAR ASSEMBLY	-	1	Enquire
024	86311153	FIFTH GEAR	86311153 FIFTH GEAR	-	1	Enquire
025	86311165	SIXTH GEAR	86311165 SIXTH GEAR	-	1	Enquire
026	86311876C	SPACER	86311876C SPACER	-	1	Enquire
027	86301845	BEARING	86301845 BEARING	-	1	Enquire
028	86311388	SHIM ADJUSTMENT	86311388 SHIM ADJUSTMENT	-	2	Enquire
029	86311770A	ROLLER CAGE	86311770A ROLLER CAGE	-	2	Enquire
030	86311531C	REVERSE IDLE GEAR	86311531C REVERSE IDLE GEAR	-	1	Enquire
031	WHT003165	STUD BOLT M6X25	WHT003165 STUD BOLT M6X25	-	1	Enquire
032	86311509	REVERS IDLE GEAR SHAFT	86311509 REVERS IDLE GEAR SHAFT	-	1	Enquire
033	WHT001197A	WASHER	WHT001197A WASHER	-	1	Enquire
034	WHT002953	NUT M6	WHT002953 NUT M6	-	1	Enquire
036	WHT003587A	SEAL RING	WHT003587A SEAL RING	-	1	Enquire
037	86311440	BEARING	86311440 BEARING	-	1	Enquire
039	WHT003582	SEAL RING	WHT003582 SEAL RING	-	1	Enquire
040	86311834A	GEAR	86311834A GEAR	-	1	Enquire
041	86311439	BEARING	86311439 BEARING	-	1	Enquire
042	86311667	RING NUT	86311667 RING NUT	-	1	Enquire
043	WHT003580	SEAL RING	WHT003580 SEAL RING	-	1	Enquire
044	86301133	BEARING 080	86301133 BEARING 080	-	1	Enquire
