Front Drive Shaft

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Front Drive Shaft

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

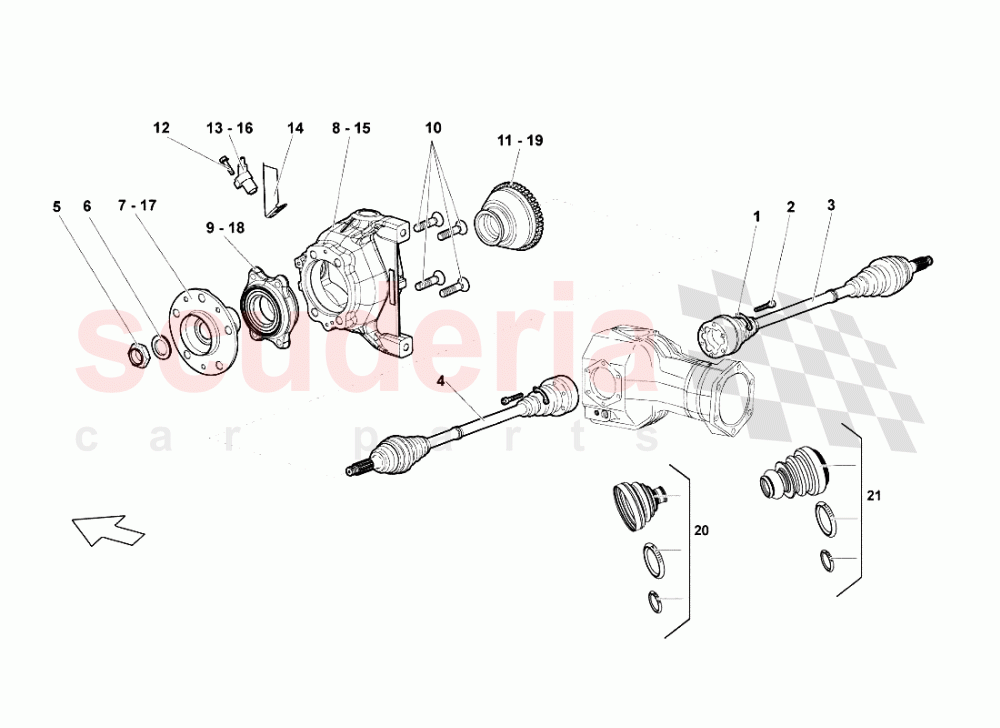

Front Drive Shaft of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 1K0407357C
SPACER 		- 6 Enquire
002 WHT003312
SCREW M10X1,25X80 		- 12 Enquire
003 410407302C
RH FRONT DRIVE 		- 1 Enquire
004 410407301C
LH FRONT DRIVE SHAFT 		- 1 Enquire
005 410407338
NUT 		- 2 Enquire
006 410407631
WASHER 		- 2 Enquire
007 410407613
HUB 		- 1 Enquire
008 410407257A
LH HUB HOLDER (CERAMIC BRAKE) 		- 1 Enquire
009 4E0407625F
DOUBLE (ANGLED) BALL BEARING WITH FLANGE 		- 1 Enquire
010 WHT000237
BALL SCREW 		- 8 Enquire
011 410614149
TONE WHEEL 		- 1 Enquire
012 N10285602
SCREW 		- 2 Enquire
013 410927801C
ABS SENSOR (RIGHT-HAND) 		- 1 Enquire
014 410614753
LEFT HEAT SHIELD (CERAMIC BRAKE) 		- 1 Enquire
014 410614754
RIGHT HEAT SHIELD (CERAMIC BRAKE) 		- 1 Enquire
015 410407258A
RH HUB HOLDER (CERAMIC BRAKE) 		- 1 Enquire
016 410927801C
ABS SENSOR (RIGHT-HAND) 		- 1 Enquire
017 410407613
HUB 		- 1 Enquire
018 4E0407625F
DOUBLE (ANGLED) BALL BEARING WITH FLANGE 		- 1 Enquire
019 410614149
TONE WHEEL 		- 1 Enquire
020 410498099
KIT AXELSHAFT FORE OUTER 		- 2 Enquire
021 410498099A
Wheel Shaft Outer 		- 2 Enquire
