Find Your Part

Clutch Ce-gear') of Lamborghini Lamborghini Murcielago LP640

View All

Lamborghini Murcielago LP640 - Clutch Ce-gear')

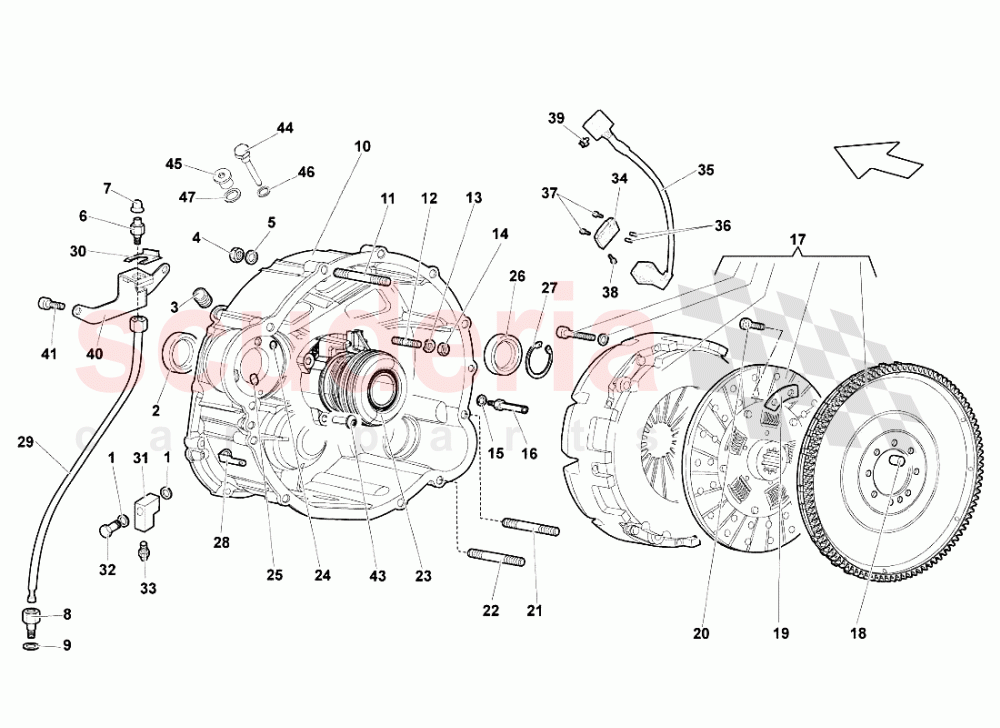

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
004	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.89	10
005	WHT000771	WASHER IN STOCK	WHT000771 WASHER IN STOCK	$1.19	16
006	1J0615273	BREATHER VALVE	1J0615273 BREATHER VALVE	$23.40	1
007	86301147	DUST CAP IN STOCK	86301147 DUST CAP IN STOCK	$0.91 MSRP: ~~7.25~~ (87.4% off)	1
008	86323173C	CONNECTION PIECE	86323173C CONNECTION PIECE	$131.18	1
009	WHT002219	O-RING IN STOCK	WHT002219 O-RING IN STOCK	$4.78	1
010	86323209K	CLUTCH HOUSING	86323209K CLUTCH HOUSING	$3,232.51	1
011	WHT003027	STUD BOLT M8X35	WHT003027 STUD BOLT M8X35	$9.17	11
012	WHT002942	STUD BOLT	WHT002942 STUD BOLT	$10.96	3
013	WHT003213	WASHER	WHT003213 WASHER	$1.34 MSRP: ~~7.15~~ (81.3% off)	3
014	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 IN STOCK	$0.33 MSRP: ~~7.29~~ (95.5% off)	2

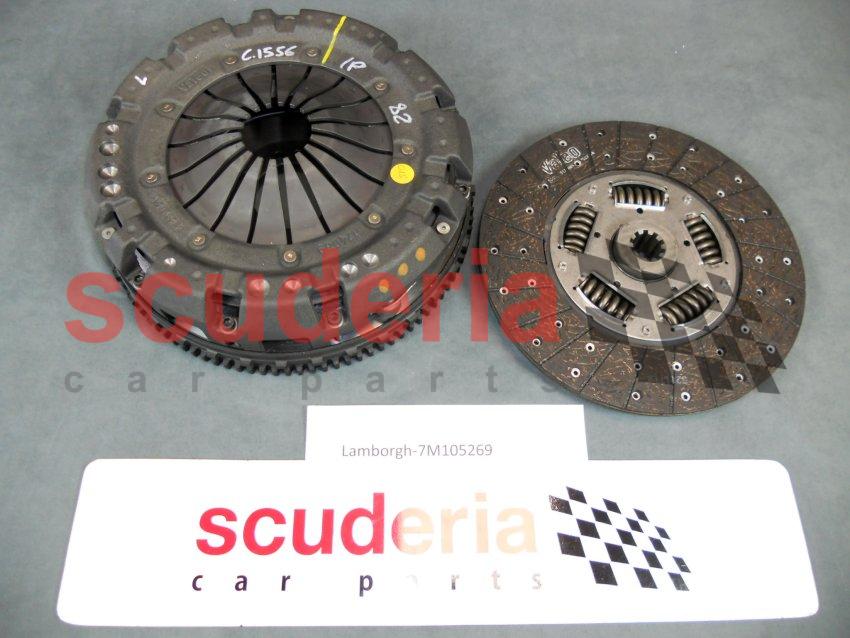

017	7M105269	Balanced Mechanism Clutch IN STOCK	7M105269 Balanced Mechanism Clutch IN STOCK	$8,767.09	1
018	WHT003078	DOWEL	WHT003078 DOWEL	$43.68	1
019	410141179	Retaining Plate	410141179 Retaining Plate	$63.32	4
020	WHT002951	Hexagon Head Bolt M8x1.25x23 IN STOCK	WHT002951 Hexagon Head Bolt M8x1.25x23 IN STOCK	$19.45	8
021	WHT002944	STUD BOLT M8X50	WHT002944 STUD BOLT M8X50	$16.60	2
022	WHT003166	STUD BOLT M8X40	WHT003166 STUD BOLT M8X40	$50.26	1
023	86141671L	Thrust Bearing IN STOCK	86141671L Thrust Bearing IN STOCK	$1,971.38	1
024	WHT002218	O-RING IN STOCK	WHT002218 O-RING IN STOCK	$4.19 MSRP: ~~7.30~~ (42.6% off)	1
025	86141131	O-RING IN STOCK	86141131 O-RING IN STOCK	$22.29	1
026	86311819	SEAL RING IN STOCK	86311819 SEAL RING IN STOCK	$56.38	1
027	WHT003580	SEAL RING IN STOCK	WHT003580 SEAL RING IN STOCK	$15.12	1
028	410911085A	BRACKET	410911085A BRACKET	$26.89	1
029	86323179A	HYDRAULIC CLUTCH PIPE	86323179A HYDRAULIC CLUTCH PIPE	$226.50	1
030	191611715	HOSE BRACKET	191611715 HOSE BRACKET	$2.08 MSRP: ~~7.14~~ (70.9% off)	1
033	86325274A	CONNECTOR	86325274A CONNECTOR	$1,821.23	1
034	86141305	SUPPORT IN STOCK	86141305 SUPPORT IN STOCK	$56.40	1
035	86141297	Clutch Sensor IN STOCK	86141297 Clutch Sensor IN STOCK	$483.13	1
036	N10421101	PIN IN STOCK	N10421101 PIN IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	2
037	N10295402	SCREW M5X20 IN STOCK	N10295402 SCREW M5X20 IN STOCK	$2.63 MSRP: ~~7.09~~ (62.9% off)	2
038	N90659905	SCREW HEX SOCKET M4 X 16 IN STOCK	N90659905 SCREW HEX SOCKET M4 X 16 IN STOCK	$9.92	2
039	410972846	SUPPORT	410972846 SUPPORT	$1.68 MSRP: ~~7.12~~ (76.4% off)	2
040	86323131A	BRACKET	86323131A BRACKET	$57.59	1
041	N91065401	SCREW M8X14 IN STOCK	N91065401 SCREW M8X14 IN STOCK	$1.63 MSRP: ~~7.22~~ (77.4% off)	2
043	N10124306	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10124306 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.60	3
044	86323961	PLUG	86323961 PLUG	$48.93	1
045	N0160276	PLUG	N0160276 PLUG	$6.72	1
046	N0138302	Washer Copper 8 x 1MM IN STOCK	N0138302 Washer Copper 8 x 1MM IN STOCK	$3.27 MSRP: ~~7.33~~ (55.4% off)	1
047	N0138495	SEAL RING IN STOCK	N0138495 SEAL RING IN STOCK	$3.27 MSRP: ~~7.21~~ (54.6% off)	1
