Gearbox of Lamborghini Lamborghini Murcielago LP640

View All

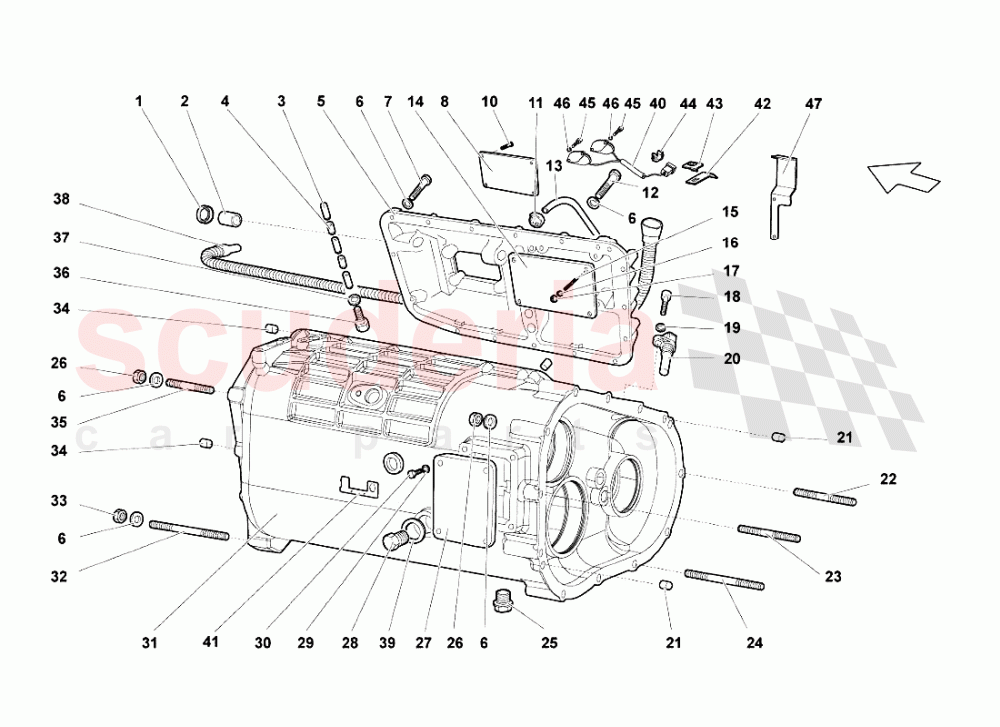

Lamborghini Murcielago LP640 - Gearbox

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	86311520	SEAL RING	86311520 SEAL RING	-	1	Enquire
002	86311621	BUSHING	86311621 BUSHING	-	1	Enquire
003	86311281A	PAWL	86311281A PAWL	-	3	Enquire
004	86311281B	PAWL	86311281B PAWL	-	2	Enquire
005	86301201B	COVER (MANUAL GEARBOX)	86301201B COVER (MANUAL GEARBOX)	-	1	Enquire
005	86301201C	COVER (E-GEAR)	86301201C COVER (E-GEAR)	-	1	Enquire
006	WHT000771	WASHER	WHT000771 WASHER	-	18	Enquire
007	N10582103	OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	N10582103 OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	-	6	Enquire
008	86301465	COVER (MANUAL GEARBOX)	86301465 COVER (MANUAL GEARBOX)	-	1	Enquire
008	86301465A	COVER (E-GEAR)	86301465A COVER (E-GEAR)	-	1	Enquire
010	N10653201	HEX COLLARED BOLT	N10653201 HEX COLLARED BOLT	-	4	Enquire
011	400127217	CLAMP	400127217 CLAMP	-	1	Enquire
012	N10700202	SCREW M6X22	N10700202 SCREW M6X22	-	12	Enquire
013	86301472	BREATHER PIPE	86301472 BREATHER PIPE	-	1	Enquire
014	86301827	COVER	86301827 COVER	-	1	Enquire
015	WHT002943	STUD BOLT M6X12	WHT002943 STUD BOLT M6X12	-	4	Enquire
016	WHT001197A	WASHER	WHT001197A WASHER	-	4	Enquire
017	WHT002953	NUT M6	WHT002953 NUT M6	-	4	Enquire
018	N91084801	HEXAGON SOCKET HEAD BOLT	N91084801 HEXAGON SOCKET HEAD BOLT	-	2	Enquire
019	WHT001197A	WASHER	WHT001197A WASHER	-	2	Enquire
020	86927321	TIMING SENSOR	86927321 TIMING SENSOR	-	2	Enquire
021	WHT003078	DOWEL	WHT003078 DOWEL	-	2	Enquire
022	WHT003166	STUD BOLT M8X40	WHT003166 STUD BOLT M8X40	-	1	Enquire
023	WHT002944	STUD BOLT M8X50	WHT002944 STUD BOLT M8X50	-	1	Enquire
024	WHT002946	STUD BOLT M8X60	WHT002946 STUD BOLT M8X60	-	10	Enquire
025	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	-	1	Enquire
026	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	8	Enquire
027	86301173	COVER	86301173 COVER	-	1	Enquire
028	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	-	1	Enquire
029	WHT001197A	WASHER	WHT001197A WASHER	-	4	Enquire
030	N01021626	SCREW M6X18	N01021626 SCREW M6X18	-	4	Enquire
031	86301103F	6-GEAR TRANSMISSION CASE (E-GEAR - MANUAL)	86301103F 6-GEAR TRANSMISSION CASE (E-GEAR - MANUAL)	-	1	Enquire
032	WHT002944	STUD BOLT M8X50	WHT002944 STUD BOLT M8X50	-	1	Enquire
033	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING	-	1	Enquire
034	WHT003078	DOWEL	WHT003078 DOWEL	-	2	Enquire
035	WHT003167	STUD BOLT M8X30	WHT003167 STUD BOLT M8X30	-	8	Enquire
036	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545)	-	1	Enquire
037	N0138302	Washer Copper 8 x 1MM	N0138302 Washer Copper 8 x 1MM	-	1	Enquire
038	410971771G	WIRING HARNESS (MANUAL	410971771G WIRING HARNESS (MANUAL	-	1	Enquire
039	N0138271	Gasket	N0138271 Gasket	-	1	Enquire
040	86927321A	E-GEAR SENSOR	86927321A E-GEAR SENSOR	-	1	Enquire
041	400326138A	SUPPORT	400326138A SUPPORT	-	1	Enquire
042	400971890D	BRACKET	400971890D BRACKET	-	1	Enquire
043	1J0937510A	BRACKET FOR CONNECTOR HOUSING	1J0937510A BRACKET FOR CONNECTOR HOUSING	-	1	Enquire
044	410868630A	SUPPORT	410868630A SUPPORT	-	2	Enquire
045	N10662102	Screw M4X12	N10662102 Screw M4X12	-	4	Enquire
046	N0115557	WASHER	N0115557 WASHER	-	4	Enquire
047	86301327A	PROTECTION (E-GEAR)	86301327A PROTECTION (E-GEAR)	-	1	Enquire
