Gearbox Shifting Rods And Forks

Lamborghini Murcielago LP640

Find Your Part

Lamborghini Murcielago LP640 - Gearbox Shifting Rods And Forks

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

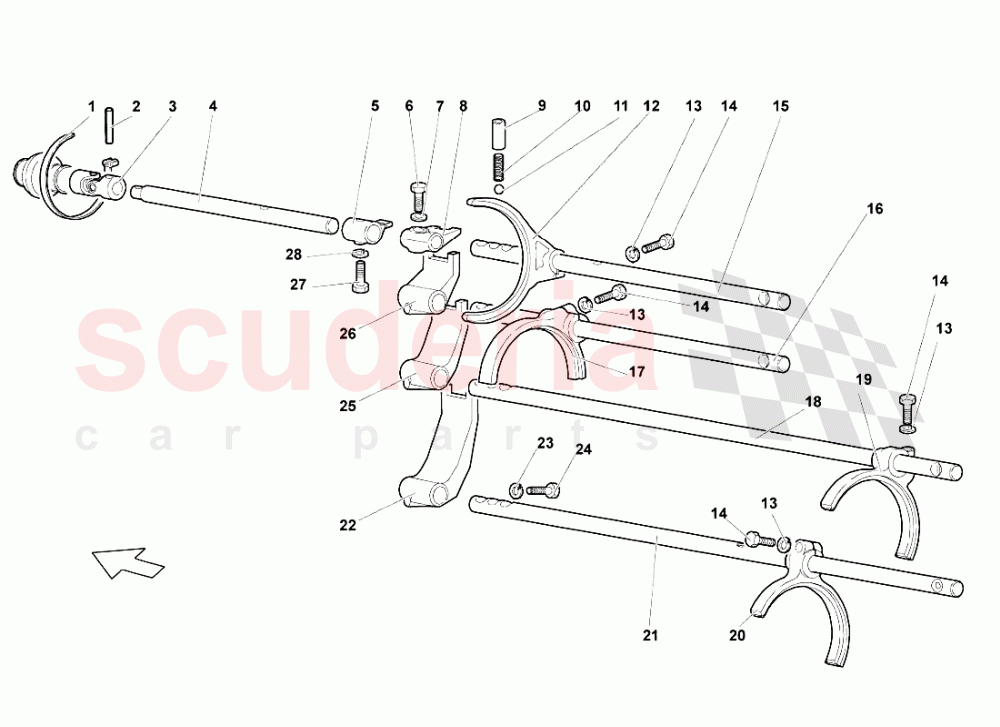

Gearbox Shifting Rods And Forks of Lamborghini Lamborghini Murcielago LP640 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 893971850C
CABLE TIES 		$0.28 (96.2% off) 2
002 N0133481
SPRING PIN
IN STOCK 		$0.27 (96.3% off) 1
003 410711615
RH JOINT 		$1,080.65 1
004 86311543B
GEAR LEVER (MANUAL GEARBOX) 		$880.39 1
004 86311543C
GEAR LEVER (E-GEAR) 		$680.13 1
005 86311998
TOOTH (MANUAL GEARBOX) 		$338.70 1
005 86311998A
TOOTH (E-GEAR) 		$312.50 1
006 WHT002952
SCREW M8X1,25X30
IN STOCK 		$4.98 3
007 86311519
WASHER
IN STOCK 		$2.42 3
008 86311111
TOOTH (MANUAL GEARBOX - 50-60) 		$332.00 1
008 86311111A
TOOTH (E-GEAR - 50-60) 		$299.06 1
009 86311511A
BUSHING 		$28.84 4
010 86311249
SPRING 		$5.11 4
011 N10439201
BALL 		$1.08 (85.1% off) 4
012 86311564B
FORK (50-60) 		$749.99 1
013 WHT002955
WASHER 		$1.11 (84.6% off) 4
014 WHT002958
SCREW M10X1,25X30 		$13.91 4
015 86311700B
FIFTH-SIXTH GEAR LEVER 		$401.89 1
016 86311567
THIRD-FOURTH GEAR LEVER 		$401.89 1
017 86311561C
FORK (30-40) 		$1,125.02 1
018 86311557
FIRST-SECOND GEAR LEVER 		$401.89 1
019 86311551B
FORK (10-20) 		$4,408.62 1
020 86311571B
FORK (REVERSE GEAR) 		$998.67 1
021 86311823C
REVERSE GEAR CONTROL ROD 		$401.89 1
022 86311107C
TOOTH (E-GEAR - REVERSE GEAR) 		$409.95 1
022 86311107B
TOOTH (MANUAL GEARBOX - REVERSE GEAR) 		$310.49 1
023 86311443
WASHER 		$14.99 1
024 WHT002950
SCREW M6X24 		$108.09 1
025 86311785
TOOTH (MANUAL GEARBOX - 10-20) 		$438.19 1
025 86311785A
TOOTH (E-GEAR - 10-20) 		$345.43 1
026 86311771
TOOTH (MANUAL GEARBOX - 30-40) 		$401.89 1
026 86311771A
TOOTH (E-GEAR - 30-40) 		$319.21 1
027 WHT002950
SCREW M6X24 		$108.09 1
028 WHT001197A
WASHER
IN STOCK 		$0.30 1
