Front Differential of Lamborghini Lamborghini Murcielago LP640

View All

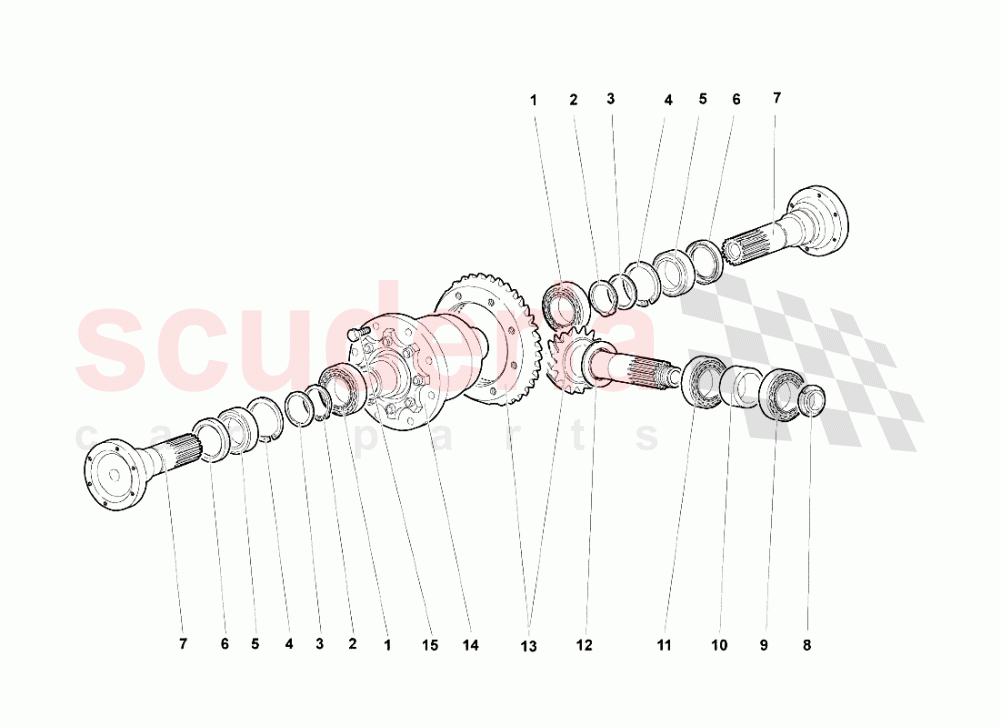

Lamborghini Murcielago LP640 - Front Differential

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	1S409123A	BEARING	1S409123A BEARING	$76.22	2
002	N0123751	RETAINING RING IN STOCK	N0123751 RETAINING RING IN STOCK	$2.08 MSRP: ~~7.09~~ (70.7% off)	2
003	1S409228	SPACER	1S409228 SPACER	$26.68	2
004	N0123191	RETAINING RING	N0123191 RETAINING RING	$5.94	2
005	1S409144	BEARING	1S409144 BEARING	$48.46	2
006	1S409209	SEAL RING	1S409209 SEAL RING	$87.50	2
007	1S409355A	FLANGE	1S409355A FLANGE	$1,317.20	2
008	1S409739A	RING NUT	1S409739A RING NUT	$194.90	1
009	1S409563	BEARING	1S409563 BEARING	$84.81	1
010	1S409223J	16.85 SPACER	1S409223J 16.85 SPACER	$47.40	1
010	1S409223N	17.05 SPACER	1S409223N 17.05 SPACER	$47.40	1
010	1S409223P	17.10 SPACER	1S409223P 17.10 SPACER	$47.40	1
010	1S409223R	17.20 SPACER	1S409223R 17.20 SPACER	$47.40	1
010	1S409223Q	17.15 SPACER	1S409223Q 17.15 SPACER	$47.40	1
010	1S409223C	16.55 SPACER	1S409223C 16.55 SPACER	$106.85	1
010	1S409223G	16.75 SPACER	1S409223G 16.75 SPACER	$61.57	1
010	1S409223L	16.95 SPACER	1S409223L 16.95 SPACER	$47.40	1
010	1S409223K	16.90 SPACER	1S409223K 16.90 SPACER	$47.40	1
010	1S409223M	17.00 SPACER	1S409223M 17.00 SPACER	$47.40	1
010	1S409223A	16.45 SPACER	1S409223A 16.45 SPACER	$106.85	1
010	1S409223E	16.65 SPACER	1S409223E 16.65 SPACER	$106.85	1
010	1S409223D	16.60 SPACER	1S409223D 16.60 SPACER	$106.85	1
010	1S409223F	16.70 SPACER	1S409223F 16.70 SPACER	$47.40	1
010	1S409223H	16.80 SPACER	1S409223H 16.80 SPACER	$74.87	1
010	1S409223B	16.50 SPACER	1S409223B 16.50 SPACER	$106.85	1
011	B9525193	BEARING	B9525193 BEARING	$125.43	1
012	1S409227A	0.3 ADJUSTMENT SHIM	1S409227A 0.3 ADJUSTMENT SHIM	$3.98	1
012	1S409227C	0.20 ADJUSTMENT SHIM	1S409227C 0.20 ADJUSTMENT SHIM	$3.98	1
012	1S409227D	0.15 ADJUSTMENT SHIM	1S409227D 0.15 ADJUSTMENT SHIM	$4.64	1
012	1S409227	0.5 ADJUSTMENT SHIM	1S409227 0.5 ADJUSTMENT SHIM	$4.37	3
012	1S409227B	0.25 ADJUSTMENT SHIM	1S409227B 0.25 ADJUSTMENT SHIM	$4.64	1
013	1S409143C	BEVEL GEAR PAIR	1S409143C BEVEL GEAR PAIR	$5,604.83	1
014	1S409755A	FRONT DIFFERENTIAL	1S409755A FRONT DIFFERENTIAL	$8,232.51	1
015	WHT002650	SCREW M10X1.25X20	WHT002650 SCREW M10X1.25X20	$13.54	8
