NOISE INSULATION PLATE of Lamborghini Lamborghini Huracan Evo Coupe

View All

Lamborghini Huracan Evo Coupe - NOISE INSULATION PLATE

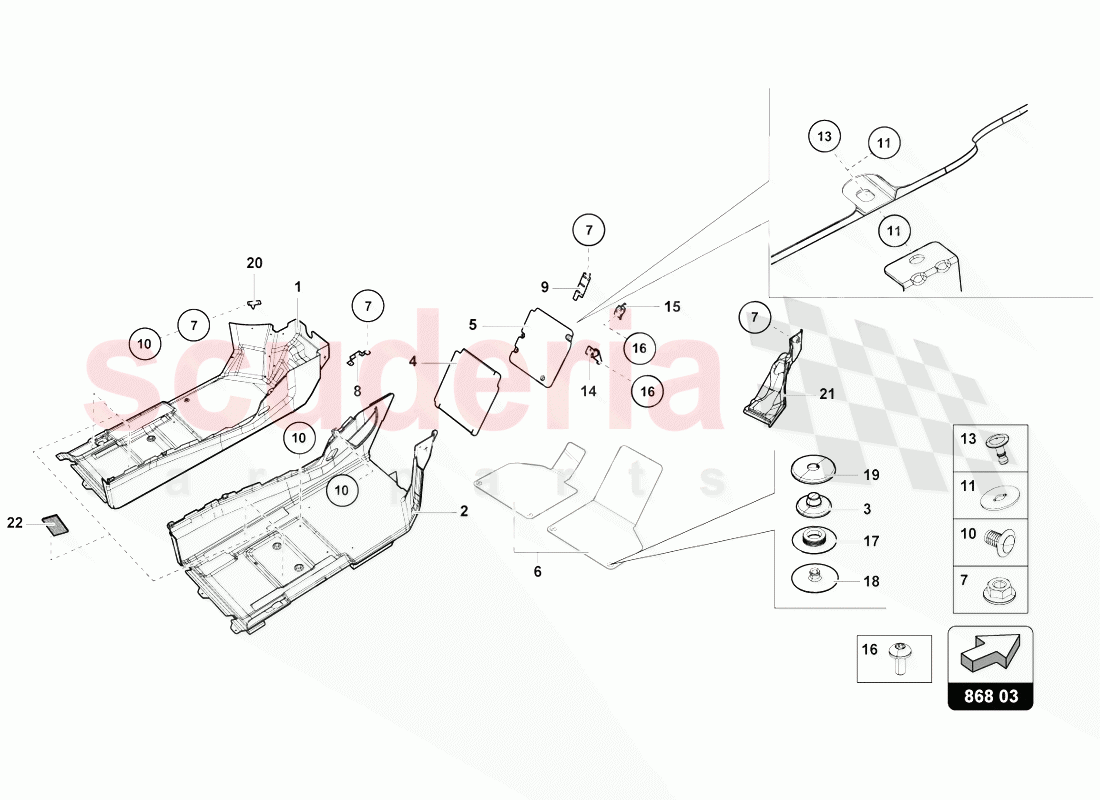

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4T1863367CQG8	TRIM	4T1863367CQG8 TRIM BLACK - LEFT LHD-BLACK	-	1	Enquire
1	4T1863367CGU2	TRIM	4T1863367CGU2 TRIM BROWN - LEFT LHD-BROWN	-	-	Enquire
2	4T1863368DQG8	TRIM	4T1863368DQG8 TRIM LEATHER - RIGHT LHD-BLACK	-	-	Enquire
2	4T1863368DGU2	TRIM	4T1863368DGU2 TRIM LEATHER - RIGHT LHD-BROWN	-	-	Enquire
2	4T1863110CQG8	TRIM	4T1863110CQG8 TRIM LEATHER - WITH NEWSPAPERS NET - RIGHT LHD-BLACK	-	-	Enquire
2	4T1863110CGU2	TRIM	4T1863110CGU2 TRIM LEATHER - WITH NEWSPAPERS NET - RIGHT LHD-BROWN	-	-	Enquire
3	8E0864523	RETAINER FOR CAP	8E0864523 RETAINER FOR CAP	-	1	Enquire
4	4T1864463AGU2	TRIM	4T1864463AGU2 TRIM BROWN	-	-	Enquire
4	4T1864463AQG8	TRIM	4T1864463AQG8 TRIM BLACK	-	1	Enquire
5	4T1864420A	FOOT REST	4T1864420A FOOT REST LHD	-	1	Enquire
5	4T1864420B	FOOT REST	4T1864420B FOOT REST AMBIENT LIGHT- LHD	-	-	Enquire
6	-	1 SET FOOT MATS	1 SET FOOT MATS SEE ILLUSTRATION :- LHD 011-010	-	-	Enquire
7	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT M6-M6	-	12	Enquire
8	4T1863253A	BRACKET	4T1863253A BRACKET	-	2	Enquire
9	4T1864776	ARM	4T1864776 ARM LHD	-	1	Enquire
10	4G0867632	CLIP	4G0867632 CLIP	-	9	Enquire
11	4A0805137A	RETAINING WASHER	4A0805137A RETAINING WASHER 6,6X25X1,2	-	8	Enquire
13	8D0805121	GRIP PIN	8D0805121 GRIP PIN 6X18MM SILVER	-	4	Enquire
14	4T0864781	BRACKET FOR FOOTREST	4T0864781 BRACKET FOR FOOTREST LHD	-	1	Enquire
15	4T1864200C	ARM	4T1864200C ARM LHD	-	1	Enquire
16	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT M6X14	-	6	Enquire
17	8E0864229	COVER CAP	8E0864229 COVER CAP	-	1	Enquire
18	8E0864227	BRACKET	8E0864227 BRACKET LOWER	-	1	Enquire
19	8E0864521	COVER CAP	8E0864521 COVER CAP	-	1	Enquire
20	4T1863159A	ARM	4T1863159A ARM LEFT LHD	-	1	Enquire
20	-	ARM	ARM SEE ILLUSTRATION :-RIGHT LHD 035-010,8	-	-	Enquire
21	-	COVER FOR FOOTREST	COVER FOR FOOTREST ONLY FOR RHD	-	-	Enquire
22	4T0863906	FELT STRIPS (SELF-ADHESIVE)	4T0863906 FELT STRIPS (SELF-ADHESIVE) ONLY FOR SPORTS SEAT	-	-	Enquire
