CHASSIS of Lamborghini Lamborghini Huracan Evo Coupe

View All

Lamborghini Huracan Evo Coupe - CHASSIS

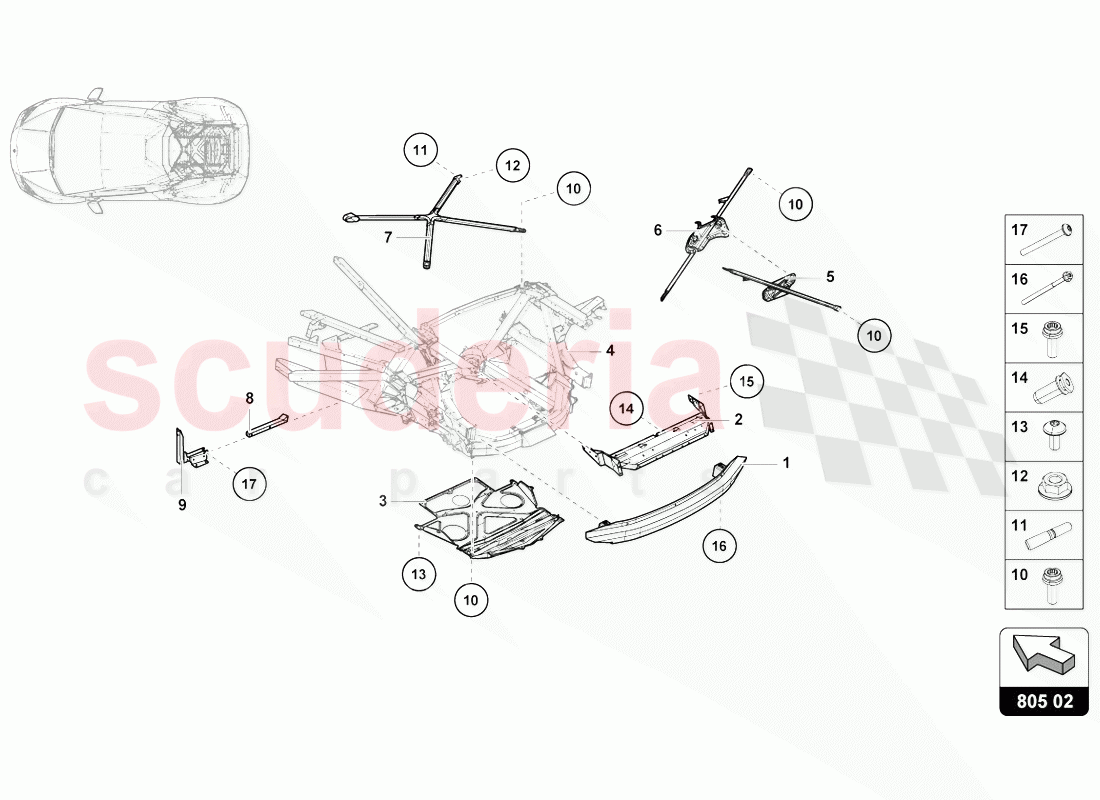

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
		CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		REAR CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0825203D	UNDERBODY TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0813905C	BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0813906C	BRACE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T8814587E	SUPPORT ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0801781B	SUPPORT	Enquire	To Order
	4T0801782B	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0814542B	BRACKET	Enquire	To Order
	4T0814541G	BRACKET	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91128001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91145002	THREADED PIN	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90798808	HEXAGON COLLAR NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	8H0806221	COMPENSATING PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91176701	INNER MULTIPOINT FITTING SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10714501	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91097301	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	-	CROSS MEMBER	CROSS MEMBER SEE ILLUSTRATION : 807.12-REAR	-	-	Enquire
2	-	REAR CARRIER	REAR CARRIER SEE ILLUSTRATION : 807.12	-	-	Enquire
3	4S0825203D	UNDERBODY TRIM	4S0825203D UNDERBODY TRIM	-	1	Enquire
4	-	FRAME	FRAME CONTACT YOUR AREA MANAGER - SEE ILLUSTRATION :-REAR ENGINE BAY 805-010	-	-	Enquire
5	4S0813905C	BRACE	4S0813905C BRACE	-	1	Enquire
6	4S0813906C	BRACE	4S0813906C BRACE	-	1	Enquire
7	4T8814587E	SUPPORT ELEMENT	4T8814587E SUPPORT ELEMENT	-	1	Enquire
8	4T0801781B	SUPPORT	4T0801781B SUPPORT CONTACT YOUR AREA MANAGER-LEFT	-	1	Enquire
8	4T0801782B	SUPPORT	4T0801782B SUPPORT CONTACT YOUR AREA MANAGER-RIGHT	-	1	Enquire
9	4T0814542B	BRACKET	4T0814542B BRACKET CONTACT YOUR AREA MANAGER-RIGHT	-	1	Enquire
9	4T0814541G	BRACKET IN STOCK	4T0814541G BRACKET CONTACT YOUR AREA MANAGER-LEFT IN STOCK	-	1	Enquire
10	N91128001	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N91128001 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X25 IN STOCK	-	6	Enquire
11	N91145002	THREADED PIN IN STOCK	N91145002 THREADED PIN M8X42 IN STOCK	-	2	Enquire
12	N90798808	HEXAGON COLLAR NUT IN STOCK	N90798808 HEXAGON COLLAR NUT M8 IN STOCK	-	2	Enquire
13	N91042302	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6X16 IN STOCK	-	13	Enquire
14	8H0806221	COMPENSATING PIECE	8H0806221 COMPENSATING PIECE	-	4	Enquire
15	N91176701	INNER MULTIPOINT FITTING SCREW IN STOCK	N91176701 INNER MULTIPOINT FITTING SCREW M8X8.5X22 IN STOCK	-	4	Enquire
16	N10714501	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10714501 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X90X80 IN STOCK	-	2	Enquire
17	N91097301	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91097301 HEXAGON SOCKET FLAT HEAD BOLT M6X45 IN STOCK	-	4	Enquire
18	-	RETAINING BRACKET	RETAINING BRACKET SEE ILLUSTRATION :- 505-020,8	-	-	Enquire
19	N10405604	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10405604 OVAL HEXAGON SOCKET HEAD BOLT M6X14 IN STOCK	-	4	Enquire
