TUNNEL TRIM of Lamborghini Lamborghini Huracan Evo Coupe

View All

Lamborghini Huracan Evo Coupe - TUNNEL TRIM

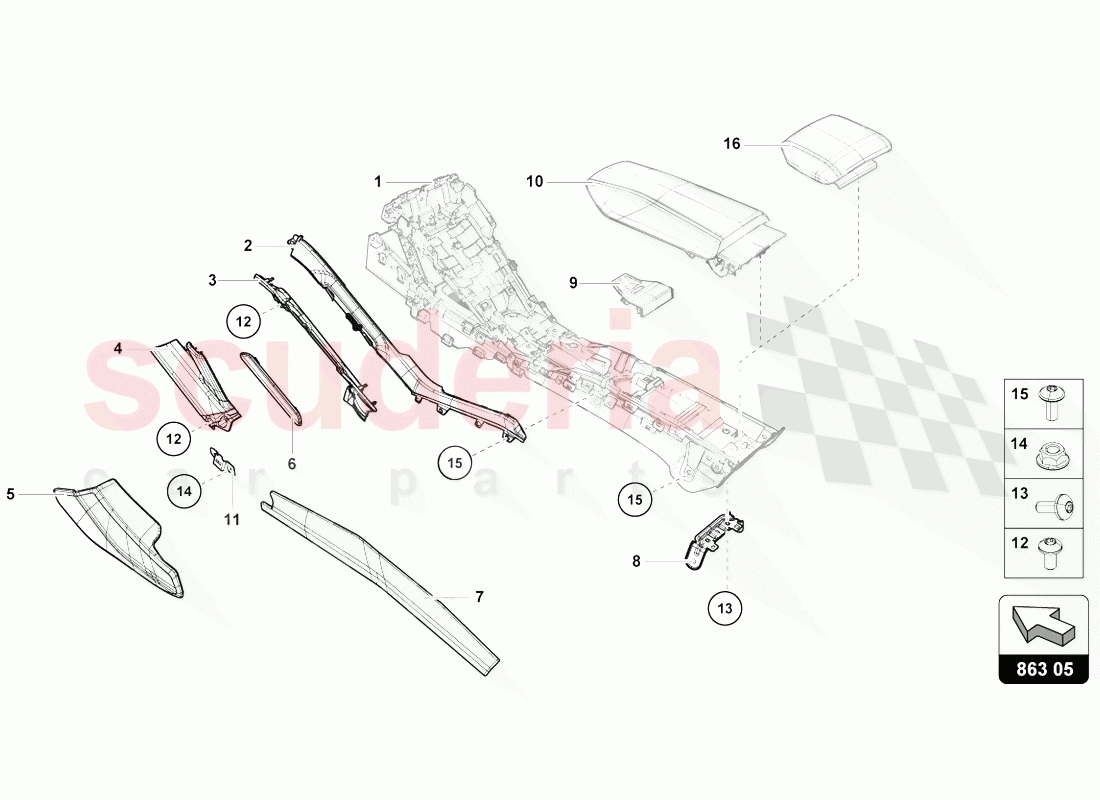

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
		CENTRE CONSOLE, LOWER PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0857718D	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0857717D	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0857717F	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4T0863051	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0863052	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0863051G	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4T0863513	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0863514	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0863513G	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4T0857785J	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0857786J	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0857785	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4T0863969H	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0863970H	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0863969B	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4T0863487G	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0863488G	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order
	4T0863488	SIDE PANEL TRIM FOR CENTRE CONSOLE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4T0863615	TUNNEL FIXING BRACKET, CENTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		STOWAGE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0863345	RETAINER FOR CENTRE CONSOLE	Enquire	To Order
	4T0863346	RETAINER FOR CENTRE CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01508213	HEXAGON COLLAR NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10738101	HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		STOWAGE COMPARTMENT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	-	CENTRE CONSOLE, LOWER PART	CENTRE CONSOLE, LOWER PART SEE ILLUSTRATION :- 863-040	-	-	Enquire
2	4T0857718D	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857718D SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER INTERIOR-RIGHT	-	1	Enquire
2	4T0857717D	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857717D SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER INTERIOR-LEFT	-	1	Enquire
2	4T0857717F	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857717F SIDE PANEL TRIM FOR CENTRE CONSOLE BIG FORGED PACKAGE MATT-LEFT	-	1	Enquire
2	4T0857718F	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857718F SIDE PANEL TRIM FOR CENTRE CONSOLE BIG FORGED PACKAGE MATT-RIGHT	-	1	Enquire
3	4T0863051	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863051 SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER-LEFT	-	1	Enquire
3	4T0863052	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863052 SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER-RIGHT	-	1	Enquire
3	4T0863051G	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863051G SIDE PANEL TRIM FOR CENTRE CONSOLE BIG FORGED PACKAGE MATT-LEFT	-	1	Enquire
3	4T0863052G	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863052G SIDE PANEL TRIM FOR CENTRE CONSOLE BIG FORGED PACKAGE MATT-RIGHT	-	1	Enquire
4	4T0863513	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863513 SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER VERSION - SUPPLY VIN-LEFT	-	1	Enquire
4	4T0863514	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863514 SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER VERSION - SUPPLY VIN-RIGHT	-	1	Enquire
4	4T0863513G	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863513G SIDE PANEL TRIM FOR CENTRE CONSOLE BIG FORGED PACKAGE MATT-LEFT	-	1	Enquire
4	4T0863514G	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863514G SIDE PANEL TRIM FOR CENTRE CONSOLE BIG FORGED PACKAGE MATT-RIGHT	-	1	Enquire
5	4T0857785J	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857785J SIDE PANEL TRIM FOR CENTRE CONSOLE CARBON SKIN VERSION - SUPPLY VIN-LEFT	-	-	Enquire
5	4T0857786J	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857786J SIDE PANEL TRIM FOR CENTRE CONSOLE CARBON SKIN VERSION - SUPPLY VIN-RIGHT	-	-	Enquire
5	4T0857785	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857785 SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER INTERIOR - SUPPLY VIN-LEFT	-	1	Enquire
5	4T0857786	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857786 SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER INTERIOR - SUPPLY VIN-RIGHT	-	1	Enquire
5	4T0857785G	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857785G SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER + PIPING VERSION - SUPPLY VIN-LEFT	-	-	Enquire
5	4T0857786G	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857786G SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER + PIPING VERSION - SUPPLY VIN-RIGHT	-	-	Enquire
5	4T0857785H	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857785H SIDE PANEL TRIM FOR CENTRE CONSOLE ALCANTARA + PIPING VERSION - SUPPLY VIN-LEFT	-	-	Enquire
5	4T0857786H	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857786H SIDE PANEL TRIM FOR CENTRE CONSOLE ALCANTARA + PIPING VERSION - SUPPLY VIN-RIGHT	-	-	Enquire
5	4T0857785A	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857785A SIDE PANEL TRIM FOR CENTRE CONSOLE ALCANTARA - SUPPLY VIN-LEFT	-	1	Enquire
5	4T0857786A	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857786A SIDE PANEL TRIM FOR CENTRE CONSOLE ALCANTARA - SUPPLY VIN-RIGHT	-	1	Enquire
6	4T0863969H	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863969H SIDE PANEL TRIM FOR CENTRE CONSOLE CARBON SKIN - SUPPLY VIN-LEFT	-	-	Enquire
6	4T0863970H	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863970H SIDE PANEL TRIM FOR CENTRE CONSOLE CARBON SKIN - SUPPLY VIN-RIGHT	-	-	Enquire
6	4T0863969B	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863969B SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER INTERIOR - SUPPLY VIN-LEFT	-	1	Enquire
6	4T0863970B	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863970B SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER INTERIOR - SUPPLY VIN-RIGHT	-	1	Enquire
6	4T0863969C	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863969C SIDE PANEL TRIM FOR CENTRE CONSOLE ALCANTARA - SUPPLY VIN-LEFT	-	1	Enquire
6	4T0863970C	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863970C SIDE PANEL TRIM FOR CENTRE CONSOLE ALCANTARA - SUPPLY VIN-RIGHT	-	1	Enquire
7	4T0863487G	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863487G SIDE PANEL TRIM FOR CENTRE CONSOLE CARBON SKIN - SUPPLY VIN-LEFT	-	-	Enquire
7	4T0863488G	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863488G SIDE PANEL TRIM FOR CENTRE CONSOLE CARBON SKIN - SUPPLY VIN-RIGHT	-	-	Enquire
7	4T0863488	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863488 SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER - SUPPLY VIN-RIGHT	-	1	Enquire
7	4T0863487	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863487 SIDE PANEL TRIM FOR CENTRE CONSOLE LEATHER - SUPPLY VIN-LEFT	-	1	Enquire
7	4T0863487F	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863487F SIDE PANEL TRIM FOR CENTRE CONSOLE BIG FORGED PACKAGE MATT - SUPPLY VIN-LEFT	-	1	Enquire
7	4T0863488F	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863488F SIDE PANEL TRIM FOR CENTRE CONSOLE BIG FORGED PACKAGE MATT - SUPPLY VIN-RIGHT	-	1	Enquire
8	4T0863615	TUNNEL FIXING BRACKET, CENTER	4T0863615 TUNNEL FIXING BRACKET, CENTER	-	1	Enquire
9	-	COVER	COVER NOT FOR THIS MODEL	-	-	Enquire
10	-	STOWAGE COMPARTMENT	STOWAGE COMPARTMENT NOT FOR THIS MODEL	-	-	Enquire
11	4T0863345	RETAINER FOR CENTRE CONSOLE	4T0863345 RETAINER FOR CENTRE CONSOLE LEFT	-	1	Enquire
11	4T0863346	RETAINER FOR CENTRE CONSOLE	4T0863346 RETAINER FOR CENTRE CONSOLE RIGHT	-	1	Enquire
12	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT M5X12	-	16	Enquire
13	N10569501	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N10569501 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD M5X16	-	2	Enquire
14	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT M6	-	4	Enquire
15	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI) M5X16	-	16	Enquire
16	-	STOWAGE COMPARTMENT	STOWAGE COMPARTMENT SEE ILLUSTRATION : 863.10	-	-	Enquire
