Lamborghini Huracan Evo Coupe - WING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4T8809601E Left Rear Fender Assembly $9,831.95 To Order
4T8809602E RIGHT REAR FENDER ASSEMBLY (CONTACT YOUR AREA MANAGER) $9,831.95 To Order
Photo Part No Description Price (each) Stock
4T8853945A MUD WING COMPENSATION PLATE $29.17 To Order
4T8853946A MUD WING COMPENSATION PLATE $29.17 To Order
Photo Part No Description Price (each) Stock
4T8810695 ARM $45.05 To Order
4T8810696 ARM $45.05 To Order
Photo Part No Description Price (each) Stock
ORNAMENTAL GRILLE Enquire To Order
Photo Part No Description Price (each) Stock
4T0809609B LH BRACKET $62.45 To Order
4T0809610B RH BRACKET $62.45 To Order
Photo Part No Description Price (each) Stock
4T0809791C BRACKET $22.79 To Order
4T0809792C BRACKET $22.32 To Order
Photo Part No Description Price (each) Stock
BRACKET FOR CLOSURE PLATE Enquire To Order
Photo Part No Description Price (each) Stock
4T0809075B LH BRACKET $28.76 To Order
4T0809076B RH BRACKET $28.76 To Order
Photo Part No Description Price (each) Stock
4T0809465B RETAINING PLATE $13.64 To Order
4T0809466B RETAINING PLATE $13.64 To Order
Photo Part No Description Price (each) Stock
REAR PLATE FOR WHEEL HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
N10009507 HEXAGON HEAD BOLT (COMBI) $0.80 To Order
N10009209 HEXAGON HEAD BOLT (COMBI) $0.92 To Order
Photo Part No Description Price (each) Stock
N01508210 HEXAGON COLLAR NUT $1.96 To Order
Photo Part No Description Price (each) Stock
N10009507 HEXAGON HEAD BOLT (COMBI) $0.80 To Order
N10009209 HEXAGON HEAD BOLT (COMBI) $0.92 To Order
Photo Part No Description Price (each) Stock
8H0806221 COMPENSATING PIECE $11.16 To Order
Photo Part No Description Price (each) Stock
N10405702 HEXAGON SOCKET HEAD BOLT $0.92 To Order
Photo Part No Description Price (each) Stock
N01166623 WASHER $1.23 To Order
Photo Part No Description Price (each) Stock
N90958903 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) $1.55 To Order
Photo Part No Description Price (each) Stock
HEXAGON SOCKET OVAL HEAD BOLT (COMBI) Enquire To Order
Photo Part No Description Price (each) Stock
N90688703 SPEED NUT $1.22 To Order
Photo Part No Description Price (each) Stock
N91206801 HEXAGON FLANGE SCREW $1.22 To Order
Photo Part No Description Price (each) Stock
N01508210 HEXAGON COLLAR NUT $1.96 To Order
Photo Part No Description Price (each) Stock
4T8809081C INSERT PART $470.44 To Order
4T8809081C INSERT PART $470.44 To Order
4T8809082C INSERT PART $555.12 To Order
Photo Part No Description Price (each) Stock
4T8809643B SEAL $106.20 To Order
4T8809644B SEAL $106.20 To Order
Photo Part No Description Price (each) Stock
N90533003 BOLT, HEX. HD. (COMBI.) SELF-LOCKING $3.05 To Order
Photo Part No Description Price (each) Stock
4T8809821B BRACKET $53.03 To Order
4T8809822B BRACKET $53.03 To Order
Photo Part No Description Price (each) Stock
N91140401 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) $1.63 To Order
Photo Part No Description Price (each) Stock
4T8821129B BRACKET FOR WHEEL HOUSING $252.03 To Order
4T8821130B BRACKET FOR WHEEL HOUSING $252.03 To Order
Photo Part No Description Price (each) Stock
N90821401 EXPANDING NUT $1.32 To Order
Photo Part No Description Price (each) Stock
4T0809347B BRACKET FOR CLOSURE PLATE $283.60 To Order
4T0809348B BRACKET FOR CLOSURE PLATE $283.60 To Order
Photo Part No Description Price (each) Stock
N90477302 WASHER $0.70 To Order
Photo Part No Description Price (each) Stock
8D0805960 SPEED NUT $3.40 To Order
Photo Part No Description Price (each) Stock
4T0807591A ARM $37.04 To Order
4T0807592A ARM $43.07 To Order
Photo Part No Description Price (each) Stock
N91042302 OVAL HEXAGON SOCKET HEAD BOLT M6 X 16 $1.60 To Order
Photo Part No Description Price (each) Stock
N90981701 SPEED NUT $0.88 To Order
Photo Part No Description Price (each) Stock
4T0807985B BRACKET $15.84 To Order
4T0807986B BRACKET $31.38 To Order
View All

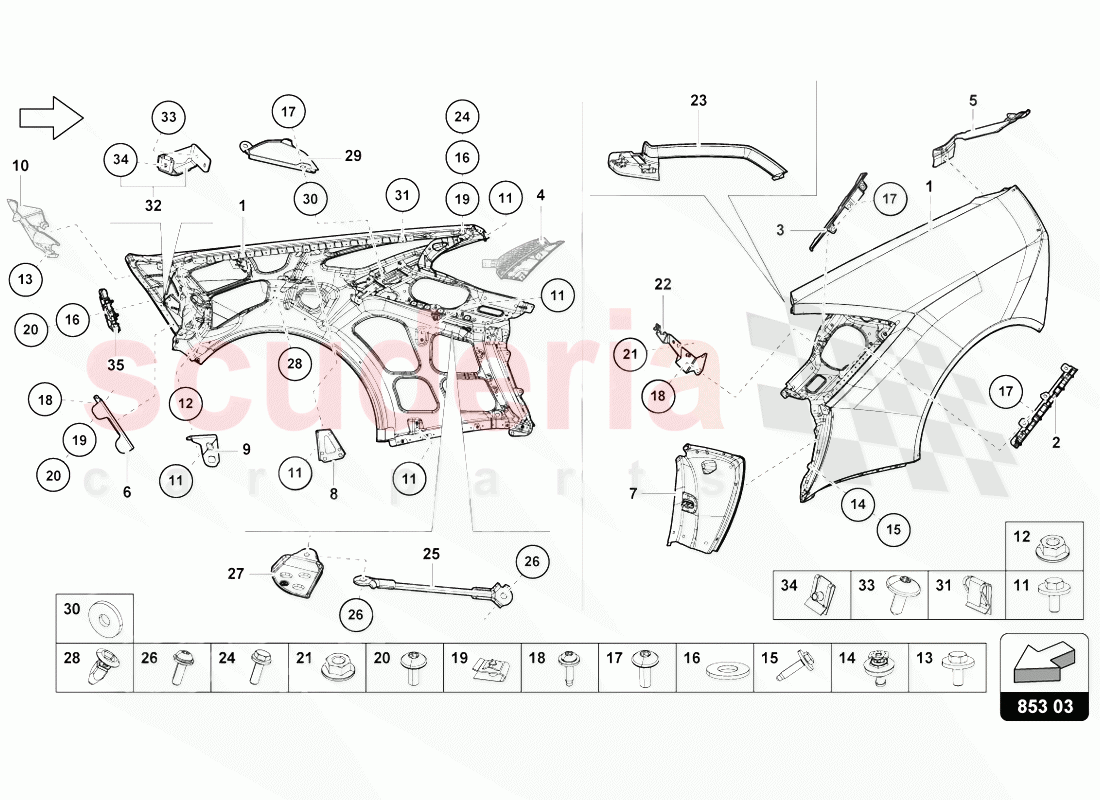

WING of Lamborghini Lamborghini Huracan Evo Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4T8809601E
Left Rear Fender Assembly
CONTACT YOUR AREA MANAGER - SUPPLY VIN-LEFT 		$9,831.95 1
1 4T8809602E
RIGHT REAR FENDER ASSEMBLY (CONTACT YOUR AREA MANAGER)
CONTACT YOUR AREA MANAGER - SUPPLY VIN-RIGHT 		$9,831.95 1
2 4T8853945A
MUD WING COMPENSATION PLATE
LEFT 		$29.17 1
2 4T8853946A
MUD WING COMPENSATION PLATE
RIGHT 		$29.17 1
3 4T8810695
ARM
LEFT 		$45.05 1
3 4T8810696
ARM
RIGHT 		$45.05 1
4 ORNAMENTAL GRILLE
SEE ILLUSTRATION :- 853-050 		- - Enquire
5 4T0809609B
LH BRACKET
LEFT 		$62.45 1
5 4T0809610B
RH BRACKET
RIGHT 		$62.45 1
6 4T0809791C
BRACKET
LEFT 		$22.79 1
6 4T0809792C
BRACKET
RIGHT 		$22.32 1
7 BRACKET FOR CLOSURE PLATE
SEE ILLUSTRATION :- 853-050 		- - Enquire
8 4T0809075B
LH BRACKET
LEFT 		$28.76 1
8 4T0809076B
RH BRACKET
RIGHT 		$28.76 1
9 4T0809465B
RETAINING PLATE
LEFT 		$13.64 1
9 4T0809466B
RETAINING PLATE
RIGHT 		$13.64 1
10 REAR PLATE FOR WHEEL HOUSING
SEE ILLUSTRATION :- 825-030 		- - Enquire
11 N10009507
HEXAGON HEAD BOLT (COMBI)
M6X18 		$0.80 (89% off) 8
11 N10009209
HEXAGON HEAD BOLT (COMBI)
M6X20 		$0.92 (87.4% off) 8
12 N01508210
HEXAGON COLLAR NUT
M6 		$1.96 4
13 N10009507
HEXAGON HEAD BOLT (COMBI)
M6X18 		$0.80 (89% off) 8
13 N10009209
HEXAGON HEAD BOLT (COMBI)
M6X20 		$0.92 (87.4% off) 4
14 8H0806221
COMPENSATING PIECE 		$11.16 10
15 N10405702
HEXAGON SOCKET HEAD BOLT
M6X45 		$0.92 10
16 N01166623
WASHER
6,4X18X1,6 		$1.23 4
17 N90958903
HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
M6X16 		$1.55 (78.7% off) 8
18 HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
NOT AVAILABLE-M6X45 		- - Enquire
19 N90688703
SPEED NUT
M6X24X16 		$1.22 1
20 N91206801
HEXAGON FLANGE SCREW 		$1.22 (83.1% off) 4
21 N01508210
HEXAGON COLLAR NUT
M6 		$1.96 2
22 4T8809081C
INSERT PART
LEFT 		$470.44 1
22 4T8809081C
INSERT PART
RIGHT 		$470.44 1
22 4T8809082C
INSERT PART
RIGHT 		$555.12 1
23 4T8809643B
SEAL
LEFT 		$106.20 1
23 4T8809644B
SEAL
RIGHT 		$106.20 1
24 N90533003
BOLT, HEX. HD. (COMBI.) SELF-LOCKING
M6X20 		$3.05 2
25 4T8809821B
BRACKET 		$53.03 1
25 4T8809822B
BRACKET 		$53.03 1
26 N91140401
HEXAGON SOCKET OVAL HEAD BOLT (COMBI)
M6X20 		$1.63 (77.3% off) 2
27 4T8821129B
BRACKET FOR WHEEL HOUSING
LEFT 		$252.03 -
27 4T8821130B
BRACKET FOR WHEEL HOUSING
RIGHT 		$252.03 -
28 N90821401
EXPANDING NUT
4,8X19,6 		$1.32 (81.7% off) 8
29 4T0809347B
BRACKET FOR CLOSURE PLATE
SUPPLY VIN-LEFT 		$283.60 1
29 4T0809348B
BRACKET FOR CLOSURE PLATE
SUPPLY VIN-RIGHT 		$283.60 1
30 N90477302
WASHER
8,4X24X3 		$0.70 (90.4% off) 2
31 8D0805960
SPEED NUT
6,0MM 		$3.40 6
32 4T0807591A
ARM
LEFT 		$37.04 1
32 4T0807592A
ARM
RIGHT 		$43.07 1
33 N91042302
OVAL HEXAGON SOCKET HEAD BOLT M6 X 16
M6X16 		$1.60 4
34 N90981701
SPEED NUT
INCLUDED IN REF.32-M5X21.0X15.3 		$0.88 (87.9% off) 2
35 4T0807985B
BRACKET
LEFT 		$15.84 1
35 4T0807986B
BRACKET
RIGHT 		$31.38 1
