DOORS of Lamborghini Lamborghini Huracan Evo Coupe

View All

Lamborghini Huracan Evo Coupe - DOORS

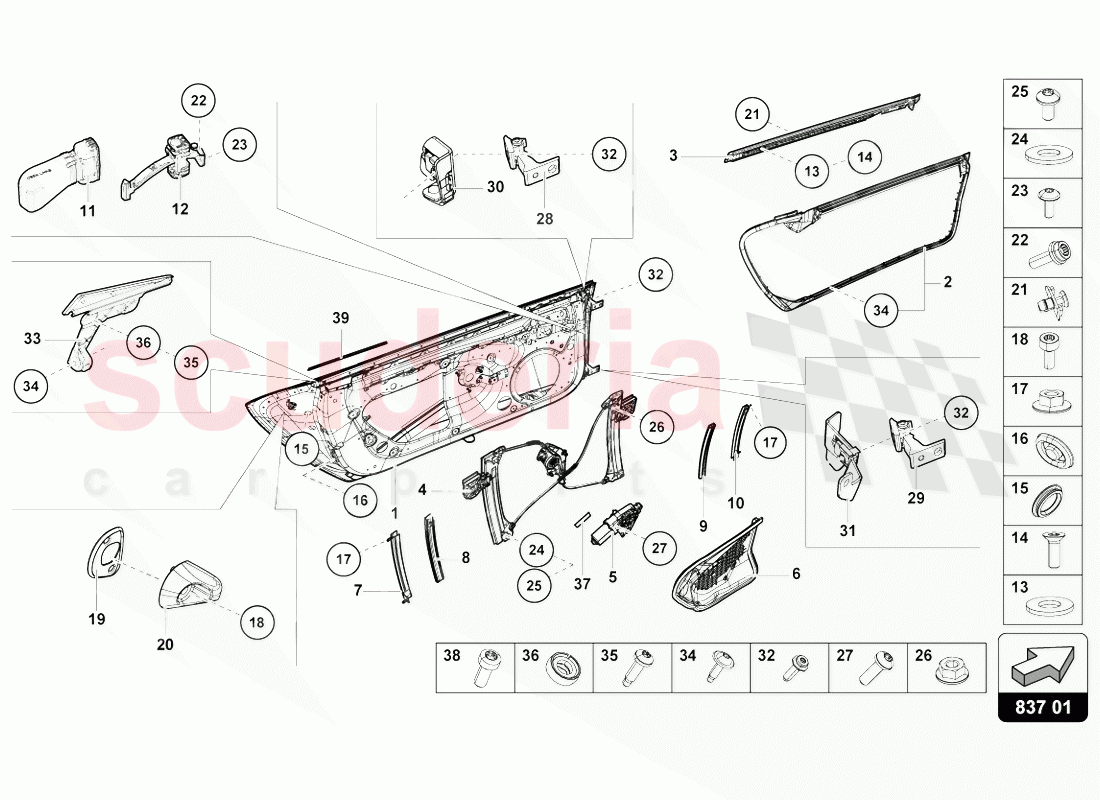

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T8831051F	DOOR	Enquire	To Order
	4T8831052F	DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0837911C	DOOR SEAL	Enquire	To Order
	4T0837912C	DOOR SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0837477D	WINDOW APERTURE SEAL	Enquire	To Order
	4T0837478D	WINDOW APERTURE SEAL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4T0837398C	WINDOW REGULATOR WITHOUT MOTOR	Enquire	To Order
	4T0837397C	WINDOW REGULATOR WITHOUT MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0959801B	WINDOW REGULATOR MOTOR	Enquire	To Order
	8K0959802B	WINDOW REGULATOR MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0837917	DOOR SEAL	Enquire	To Order
	4T0837918	DOOR SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0837405	WINDOW GUIDE	Enquire	To Order
	4T0837406	WINDOW GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0837933B	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0837349B	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0831619	WINDOW GUIDE	Enquire	To Order
	4T0831620	WINDOW GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8V0837267	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8S0837249	DOOR CATCH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT000778	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10459201	HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0839111	COVER CAP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1Z0971904A	BUNGS	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90663602	Hex. Nut With Washer (m5)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91203201	FLAT HEAD MULTI-POINT SOCKET BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4T0831431	DOOR SEAL	Enquire	To Order
	4T0831432	DOOR SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0831121A	REINFORCEMENT FOR DOOR HANDLE	Enquire	To Order
	4T0831122A	REINFORCEMENT FOR DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8L3837199B	CLIP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91084201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT003237	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10124308	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT000127	HEXAGON NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8Z0837691C	HEXAGON SOCKET HEAD PANEL BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G0831401A	DOOR HINGE	Enquire	To Order
	4G0831402A	DOOR HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G0831401B	DOOR HINGE	Enquire	To Order
	4G0831402B	DOOR HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0831329B	HINGE REINFORCEMENT	Enquire	To Order
	4T0831330B	HINGE REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0831333B	HINGE REINFORCEMENT	Enquire	To Order
	4T0831334B	HINGE REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8H0831701	HEX SOCKET HEAD COLLARED BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		TRIM FOR DOOR WINDOW FRAME	Enquire	To Order
		TRIM FOR DOOR WINDOW FRAME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		HEXAGON COLLARED BOLT WITH HEXAGON SOCKET HEAD (DUO)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	433857445C	INSULATION STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0837485C	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T7868382	SEAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4T8831051F	DOOR	4T8831051F DOOR CONTACT YOUR AREA MANAGER-LEFT	-	1	Enquire
1	4T8831052F	DOOR	4T8831052F DOOR CONTACT YOUR AREA MANAGER-RIGHT	-	1	Enquire
2	4T0837911C	DOOR SEAL	4T0837911C DOOR SEAL LEFT OUTER	-	1	Enquire
2	4T0837912C	DOOR SEAL	4T0837912C DOOR SEAL RIGHT OUTER	-	1	Enquire
3	4T0837477D	WINDOW APERTURE SEAL	4T0837477D WINDOW APERTURE SEAL LEFT	-	1	Enquire
3	4T0837478D	WINDOW APERTURE SEAL IN STOCK	4T0837478D WINDOW APERTURE SEAL RIGHT IN STOCK	-	1	Enquire
4	4T0837398C	WINDOW REGULATOR WITHOUT MOTOR	4T0837398C WINDOW REGULATOR WITHOUT MOTOR UNTIL VIN HLA06645 ORDER ALSO LEFT PART-RIGHT	-	1	Enquire
4	4T0837397C	WINDOW REGULATOR WITHOUT MOTOR	4T0837397C WINDOW REGULATOR WITHOUT MOTOR UNTIL VIN HLA06645 ORDER ALSO RIGHT PART-LEFT	-	1	Enquire
5	8K0959801B	WINDOW REGULATOR MOTOR	8K0959801B WINDOW REGULATOR MOTOR LEFT	-	1	Enquire
5	8K0959802B	WINDOW REGULATOR MOTOR	8K0959802B WINDOW REGULATOR MOTOR RIGHT	-	1	Enquire
6	4T0837917	DOOR SEAL	4T0837917 DOOR SEAL LEFT	-	1	Enquire
6	4T0837918	DOOR SEAL	4T0837918 DOOR SEAL RIGHT	-	1	Enquire
7	4T0837405	WINDOW GUIDE	4T0837405 WINDOW GUIDE LEFT	-	1	Enquire
7	4T0837406	WINDOW GUIDE	4T0837406 WINDOW GUIDE RIGHT	-	1	Enquire
8	4T0837933B	SEAL	4T0837933B SEAL LEFT A. RIGHT REAR	-	2	Enquire
9	4T0837349B	SEAL	4T0837349B SEAL LEFT A. RIGHT FRONT	-	2	Enquire
10	4T0831619	WINDOW GUIDE	4T0831619 WINDOW GUIDE WARNING UP TO VIN CLA00425 USE ALSO RIF. 2-LEFT	-	1	Enquire
10	4T0831620	WINDOW GUIDE	4T0831620 WINDOW GUIDE WARNING UP TO VIN CLA00425 USE ALSO RIF. 2-RIGHT	-	1	Enquire
11	8V0837267	COVER	8V0837267 COVER LEFT A. RIGHT FRONT	-	2	Enquire
12	8S0837249	DOOR CATCH IN STOCK	8S0837249 DOOR CATCH LEFT A. RIGHT FRONT IN STOCK	-	2	Enquire
13	WHT000778	WASHER IN STOCK	WHT000778 WASHER 30X36X1 IN STOCK	-	8	Enquire
14	N10459201	HEXAGON SOCKET HEAD BOLT	N10459201 HEXAGON SOCKET HEAD BOLT M5X12	-	8	Enquire
15	4H0839111	COVER CAP IN STOCK	4H0839111 COVER CAP 16,2 IN STOCK	-	4	Enquire
16	1Z0971904A	BUNGS IN STOCK	1Z0971904A BUNGS IN STOCK	-	4	Enquire
17	N90663602	Hex. Nut With Washer (m5) IN STOCK	N90663602 Hex. Nut With Washer (m5) M5 IN STOCK	-	4	Enquire
18	N91203201	FLAT HEAD MULTI-POINT SOCKET BOLT IN STOCK	N91203201 FLAT HEAD MULTI-POINT SOCKET BOLT M8X22 IN STOCK	-	2	Enquire
19	4T0831431	DOOR SEAL	4T0831431 DOOR SEAL LEFT	-	1	Enquire
19	4T0831432	DOOR SEAL	4T0831432 DOOR SEAL RIGHT	-	1	Enquire
20	4T0831121A	REINFORCEMENT FOR DOOR HANDLE	4T0831121A REINFORCEMENT FOR DOOR HANDLE LEFT	-	1	Enquire
20	4T0831122A	REINFORCEMENT FOR DOOR HANDLE	4T0831122A REINFORCEMENT FOR DOOR HANDLE RIGHT	-	1	Enquire
21	8L3837199B	CLIP IN STOCK	8L3837199B CLIP IN STOCK	-	22	Enquire
22	N91084201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) IN STOCK	N91084201 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M8X25 IN STOCK	-	4	Enquire
23	WHT003237	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	WHT003237 HEXAGON SOCKET FLAT HEAD BOLT M6X12 IN STOCK	-	6	Enquire
24	N01166623	WASHER IN STOCK	N01166623 WASHER 6,4X18X1,6 IN STOCK	-	4	Enquire
25	N10124308	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10124308 OVAL HEXAGON SOCKET HEAD BOLT M6X20 IN STOCK	-	4	Enquire
26	WHT000127	HEXAGON NUT	WHT000127 HEXAGON NUT M8	-	4	Enquire
27	8Z0837691C	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	8Z0837691C HEXAGON SOCKET HEAD PANEL BOLT 5X22 IN STOCK	-	6	Enquire
28	4G0831401A	DOOR HINGE	4G0831401A DOOR HINGE LEFT UPPER	-	1	Enquire
28	4G0831402A	DOOR HINGE	4G0831402A DOOR HINGE RIGHT UPPER	-	1	Enquire
29	4G0831401B	DOOR HINGE	4G0831401B DOOR HINGE LEFT LOWER	-	1	Enquire
29	4G0831402B	DOOR HINGE	4G0831402B DOOR HINGE RIGHT LOWER	-	1	Enquire
30	4T0831329B	HINGE REINFORCEMENT	4T0831329B HINGE REINFORCEMENT LEFT UPPER	-	1	Enquire
30	4T0831330B	HINGE REINFORCEMENT	4T0831330B HINGE REINFORCEMENT RIGHT UPPER	-	1	Enquire
31	4T0831333B	HINGE REINFORCEMENT	4T0831333B HINGE REINFORCEMENT LEFT LOWER	-	1	Enquire
31	4T0831334B	HINGE REINFORCEMENT	4T0831334B HINGE REINFORCEMENT RIGHT LOWER	-	1	Enquire
32	8H0831701	HEX SOCKET HEAD COLLARED BOLT	8H0831701 HEX SOCKET HEAD COLLARED BOLT M10X34	-	4	Enquire
33	-	TRIM FOR DOOR WINDOW FRAME	TRIM FOR DOOR WINDOW FRAME ONLY FOR SPYDER VERSION-LEFT	-	-	Enquire
33	-	TRIM FOR DOOR WINDOW FRAME	TRIM FOR DOOR WINDOW FRAME ONLY FOR SPYDER VERSION-RIGHT	-	-	Enquire
34	-	HEXAGON COLLARED BOLT WITH HEXAGON SOCKET HEAD (DUO)	HEXAGON COLLARED BOLT WITH HEXAGON SOCKET HEAD (DUO) ONLY FOR SPYDER VERSION-M5X30	-	-	Enquire
35	-	ROUND HD. SCREW	ROUND HD. SCREW ONLY FOR SPYDER VERSION-M5X18	-	-	Enquire
36	-	BUSH	BUSH ONLY FOR SPYDER VERSION	-	-	Enquire
37	433857445C	INSULATION STRIP	433857445C INSULATION STRIP 55X1X25	-	2	Enquire
38	8E0837485C	CLIP	8E0837485C CLIP	-	-	Enquire
39	4T7868382	SEAL	4T7868382 SEAL	-	2	Enquire
