Name: DASHBOARD
Rating: 4.3 (1 reviews)

DASHBOARD of Lamborghini Lamborghini Huracan Evo Coupe

View All

Lamborghini Huracan Evo Coupe - DASHBOARD

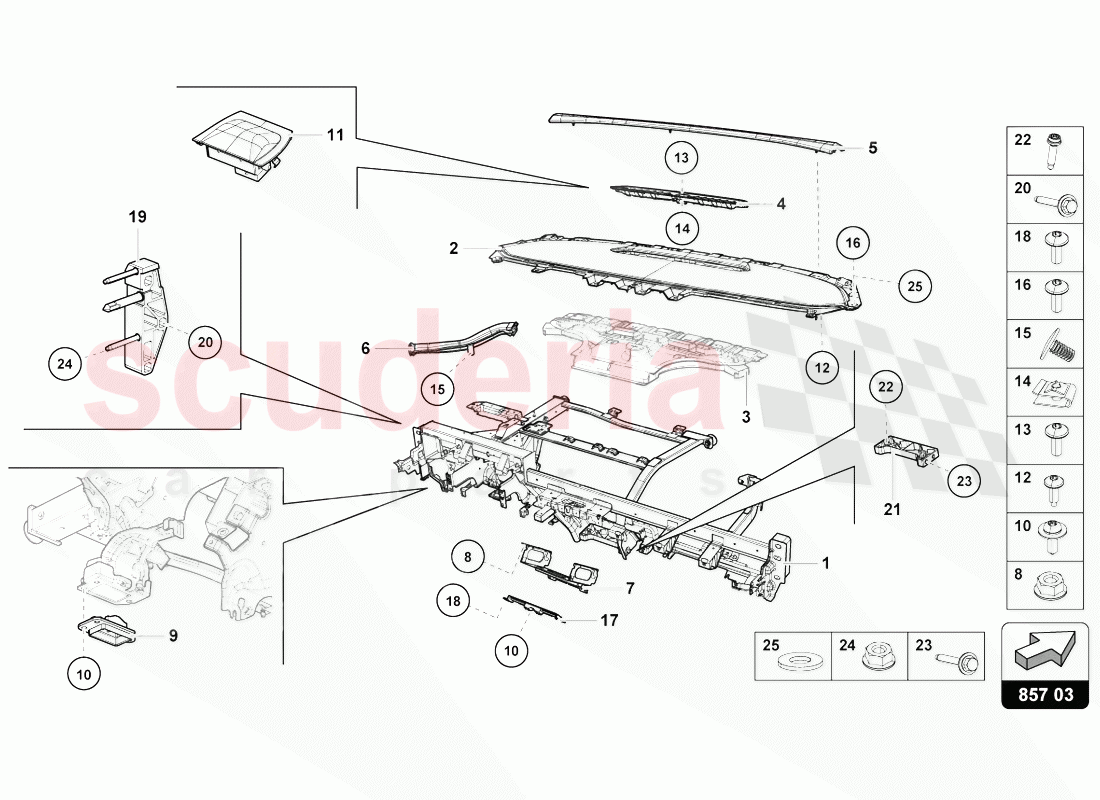

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T1858003G	CROSS MEMBER FOR DASH PANEL	$2,674.70	To Order

Photo	Part No	Description	Price (each)	Stock
	4T1857003DVAG	BLACK	$2,661.29	To Order
	4T1857003D	DASHBOARD	$2,600.82	To Order
	4T2857003D	DASHBOARD	$2,600.82	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
		DASHBOARD - LOWER PART, CENTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0819632B	AIR VENT	$225.13	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0858345AQG8	COVER	$740.60	To Order
	4T0858345AGU2	COVER	$705.67	To Order
	4T0858345B	GAP HIDER	$705.67	To Order

Photo	Part No	Description	Price (each)	Stock
	4T1819869	AIR GUIDE CHANNEL	$514.78	To Order
	4T1819870	AIR GUIDE CHANNEL	$514.78	To Order

Photo	Part No	Description	Price (each)	Stock
	4T1035329A	RETAINER FOR RADIO UNIT	$124.73	To Order

Photo	Part No	Description	Price (each)	Stock
	N90434903	HEX. NUT WITH WASHER	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	470858357	TRIM	$44.29	To Order

Photo	Part No	Description	Price (each)	Stock
		HEX SOCKET HEAD BOLT (COMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0907539	SUN SENSOR	$20.95	To Order

Photo	Part No	Description	Price (each)	Stock
	N90897402	HEXAGON SOCKET HEAD PANEL BOLT	$0.62	To Order

Photo	Part No	Description	Price (each)	Stock
	N10738101	HEX SOCKET HEAD BOLT (COMBI)	$0.88	To Order

Photo	Part No	Description	Price (each)	Stock
	N01166623	WASHER	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	400863119	BUNGS	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
		ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S1857021A	SECURING BRACKET	$50.81	To Order
	4S1857022A	SECURING BRACKET	$50.81	To Order

Photo	Part No	Description	Price (each)	Stock
	N10770301	FITTED BOLT, HEXAGON HEAD	$1.89	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0857245	SUPPORT	$45.82	To Order

Photo	Part No	Description	Price (each)	Stock
	N90870602	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	$3.24	To Order

Photo	Part No	Description	Price (each)	Stock
	N90966002	HEXAGON HEAD BOLT (COMBI)	$2.78	To Order

Photo	Part No	Description	Price (each)	Stock
	N90761103	HEXAGON COLLAR NUT SELF-LOCKING	$2.29	To Order

Photo	Part No	Description	Price (each)	Stock
	N91109201	WASHER	$1.55	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4T1858003G	CROSS MEMBER FOR DASH PANEL	4T1858003G CROSS MEMBER FOR DASH PANEL LHD	$2,674.70	-
2	4T1857003DVAG	BLACK	4T1857003DVAG BLACK CARBON SKIN- LHD	$2,661.29	-
2	4T1857003D	DASHBOARD	4T1857003D DASHBOARD LHD	$2,600.82	-
2	4T2857003D	DASHBOARD	4T2857003D DASHBOARD RHD	$2,600.82	-
2	4T1857003C	DASHBOARD	4T1857003C DASHBOARD ALCANTARA - SUPPLY VIN- LHD	$2,735.20	1
3	-	DASHBOARD - LOWER PART, CENTER	DASHBOARD - LOWER PART, CENTER CANNOT BE SOLD SEPARATELY - INCLUDED IN REF. 2	-	-	Enquire
4	4T0819632B	AIR VENT	4T0819632B AIR VENT	$225.13	1
5	4T0858345AQG8	COVER	4T0858345AQG8 COVER ARTIFICIAL LEATHER-BLACK	$740.60	1
5	4T0858345AGU2	COVER	4T0858345AGU2 COVER ARTIFICIAL LEATHER-BROWN	$705.67	1
5	4T0858345B	GAP HIDER	4T0858345B GAP HIDER	$705.67	1
6	4T1819869	AIR GUIDE CHANNEL	4T1819869 AIR GUIDE CHANNEL LHD-LEFT	$514.78	1
6	4T1819870	AIR GUIDE CHANNEL	4T1819870 AIR GUIDE CHANNEL LHD-RIGHT	$514.78	1
7	4T1035329A	RETAINER FOR RADIO UNIT	4T1035329A RETAINER FOR RADIO UNIT	$124.73	-
8	N90434903	HEX. NUT WITH WASHER	N90434903 HEX. NUT WITH WASHER M5	$1.96	4
9	470858357	TRIM	470858357 TRIM 'OBD'	$44.29	1
10	-	HEX SOCKET HEAD BOLT (COMBI)	HEX SOCKET HEAD BOLT (COMBI) NOT FOR THIS MODEL-M5X16	-	-	Enquire
11	4H0907539	SUN SENSOR	4H0907539 SUN SENSOR	$20.95	4
12	N90897402	HEXAGON SOCKET HEAD PANEL BOLT	N90897402 HEXAGON SOCKET HEAD PANEL BOLT 5X16	$0.62 MSRP: ~~7.30~~ (91.5% off)	6
13	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI) M5X16	$0.88	6
14	N01166623	WASHER	N01166623 WASHER 6,4X18X1,6	$1.23	2
15	400863119	BUNGS	400863119 BUNGS 8X14,5	$0.42 MSRP: ~~7.33~~ (94.3% off)	2
16	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT M5X12	$1.07	4
17	-	ARM	ARM NOT FOR THIS MODEL	-	-	Enquire
18	-	OVAL HEXAGON SOCKET HEAD BOLT	OVAL HEXAGON SOCKET HEAD BOLT NOT FOR THIS MODEL-M5X12	-	-	Enquire
19	4S1857021A	SECURING BRACKET	4S1857021A SECURING BRACKET LEFT LHD	$50.81	1
19	4S1857022A	SECURING BRACKET	4S1857022A SECURING BRACKET RIGHT LHD	$50.81	1
20	N10770301	FITTED BOLT, HEXAGON HEAD	N10770301 FITTED BOLT, HEXAGON HEAD M8X75	$1.89 MSRP: ~~7.07~~ (73.3% off)	2
21	4S0857245	SUPPORT	4S0857245 SUPPORT	$45.82	1
22	N90870602	SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD	N90870602 SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD M8X35	$3.24	4
23	N90966002	HEXAGON HEAD BOLT (COMBI)	N90966002 HEXAGON HEAD BOLT (COMBI) M8X25	$2.78 MSRP: ~~7.07~~ (60.7% off)	3
24	N90761103	HEXAGON COLLAR NUT SELF-LOCKING	N90761103 HEXAGON COLLAR NUT SELF-LOCKING M8	$2.29 MSRP: ~~7.29~~ (68.6% off)	4
25	N91109201	WASHER	N91109201 WASHER 5,3X20X1	$1.55 MSRP: ~~5.85~~ (73.5% off)	4
