SEAT of Lamborghini Lamborghini Huracan Evo Coupe

View All

Lamborghini Huracan Evo Coupe - SEAT

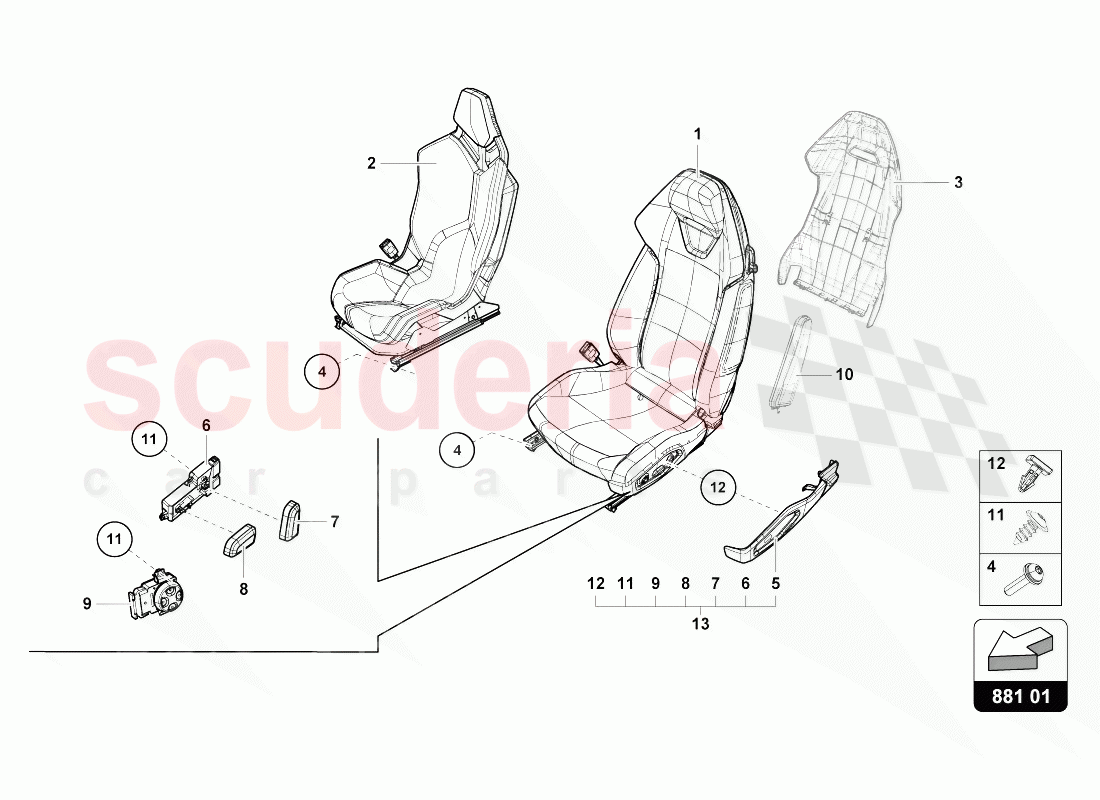

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4T0860008	SEAT	Enquire	To Order
	4T0860008C	SEAT	Enquire	To Order
	4T0860007	SEAT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
		SEAT BACK TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91229401	HEXAGON BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0881097A	LOWER SIDE SEAT COVER, LH FULL EL. STD	Enquire	To Order
	4T0881098A	LOWER SIDE SEAT COVER, RH FULL EL. STD	Enquire	To Order
	4T0881097	LH POWER SEAT CARTER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8K0959747	SWITCH FOR SEAT LONGITUDINAL- SEAT HEIGHT- SEAT RAKE AND BACKREST ADJUSTMENT	Enquire	To Order
	8K0959748C	SWITCH FOR SEAT LONGITUDINAL- SEAT HEIGHT- SEAT RAKE AND BACKREST ADJUSTMENT	Enquire	To Order
	4T0959777	SWITCH FOR BACKREST ADJUSTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8K09598164PK	SETTING KNOB	Enquire	To Order
	8K09598154PK	SETTING KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K09598174PK	SETTING KNOB	Enquire	To Order
	8K09598184PK	SETTING KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4H0959777A	SWITCH FOR LUMBAR SUPPORT ADJUSTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SIDE AIRBAG UNIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0898400	HEXAGON BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0898400G	FASTENING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0898039B	COVER FOR SEAT ADJUSTMENT	Enquire	To Order
	4T0898040B	COVER FOR SEAT ADJUSTMENT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	4T0860008	SEAT	4T0860008 SEAT RIGHT - SPORT SEAT - ALCANTARA, LEATHER INSERTS - SUPPLY VIN-RIGHT	-	1	Enquire
2	4T0860008C	SEAT	4T0860008C SEAT RIGHT LHD - SPORT SEAT - FULL ALCANTARA - SUPPLY VIN-RIGHT	-	1	Enquire
2	4T0860007	SEAT	4T0860007 SEAT LEFT - SPORT SEAT - ALCANTARA , LEATHER INSERTS - SUPPLY VIN-LEFT	-	1	Enquire
2	4T0860007B	SEAT	4T0860007B SEAT LEFT - FULL ALCANTARA - SUPPLY VIN-LEFT	-	1	Enquire
3	-	SEAT BACK TRIM	SEAT BACK TRIM SEE ILLUSTRATION :- 881-020	-	-	Enquire
4	N91229401	HEXAGON BOLT	N91229401 HEXAGON BOLT M10X25	-	8	Enquire
5	4T0881097A	LOWER SIDE SEAT COVER, LH FULL EL. STD	4T0881097A LOWER SIDE SEAT COVER, LH FULL EL. STD FULL ELECTRICAL SEAT-LEFT	-	1	Enquire
5	4T0881098A	LOWER SIDE SEAT COVER, RH FULL EL. STD	4T0881098A LOWER SIDE SEAT COVER, RH FULL EL. STD FULL ELECTRICAL SEAT-RIGHT	-	1	Enquire
5	4T0881097	LH POWER SEAT CARTER	4T0881097 LH POWER SEAT CARTER LEFT	-	1	Enquire
5	4T0881098	RH POWER SEAT CARTER	4T0881098 RH POWER SEAT CARTER RIGHT	-	1	Enquire
5	4T0881097C	LOWER SIDE SEAT COVER, LH FULL EL. LEAT.	4T0881097C LOWER SIDE SEAT COVER, LH FULL EL. LEAT. FULL ELETTRICAL - FULL LEATHER- SUPPLY VIN-LEFT	-	1	Enquire
5	4T0881098C	LOWER SIDE SEAT COVER, RH FULL EL. LEAT.	4T0881098C LOWER SIDE SEAT COVER, RH FULL EL. LEAT. FULL ELETTRICAL - FULL LEATHER- SUPPLY VIN-RIGHT	-	1	Enquire
5	4T0881097B	LOWER SIDE SEAT COVER, LH LEATHER	4T0881097B LOWER SIDE SEAT COVER, LH LEATHER FULL LEATHER - SUPPLY VIN-LEFT	-	1	Enquire
5	4T0881098B	LOWER SIDE SEAT COVER, RH LEATHER	4T0881098B LOWER SIDE SEAT COVER, RH LEATHER FULL LEATHER - SUPPLY VIN-RIGHT	-	1	Enquire
6	8K0959747	SWITCH FOR SEAT LONGITUDINAL- SEAT HEIGHT- SEAT RAKE AND BACKREST ADJUSTMENT	8K0959747 SWITCH FOR SEAT LONGITUDINAL- SEAT HEIGHT- SEAT RAKE AND BACKREST ADJUSTMENT LEFT	-	1	Enquire
6	8K0959748C	SWITCH FOR SEAT LONGITUDINAL- SEAT HEIGHT- SEAT RAKE AND BACKREST ADJUSTMENT	8K0959748C SWITCH FOR SEAT LONGITUDINAL- SEAT HEIGHT- SEAT RAKE AND BACKREST ADJUSTMENT RIGHT	-	1	Enquire
6	4T0959777	SWITCH FOR BACKREST ADJUSTING	4T0959777 SWITCH FOR BACKREST ADJUSTING LEFT	-	1	Enquire
6	4T0959778	SWITCH FOR BACKREST ADJUSTING	4T0959778 SWITCH FOR BACKREST ADJUSTING RIGHT	-	1	Enquire
7	8K09598164PK	SETTING KNOB	8K09598164PK SETTING KNOB ELECTRIC - RIGHT-SOUL (BLACK)	-	1	Enquire
7	8K09598154PK	SETTING KNOB	8K09598154PK SETTING KNOB ELECTRIC - LEFT-SOUL (BLACK)	-	1	Enquire
8	8K09598174PK	SETTING KNOB	8K09598174PK SETTING KNOB LEFT-SOUL (BLACK)	-	1	Enquire
8	8K09598184PK	SETTING KNOB	8K09598184PK SETTING KNOB RIGHT-SOUL (BLACK)	-	1	Enquire
9	4H0959777A	SWITCH FOR LUMBAR SUPPORT ADJUSTMENT	4H0959777A SWITCH FOR LUMBAR SUPPORT ADJUSTMENT ONLY FOR FULL ELECTRIC VERSION	-	2	Enquire
10	-	SIDE AIRBAG UNIT	SIDE AIRBAG UNIT SEE ILLUSTRATION :- 880-010	-	-	Enquire
11	4T0898400	HEXAGON BOLT	4T0898400 HEXAGON BOLT	-	11	Enquire
12	4T0898400G	FASTENING CLIP	4T0898400G FASTENING CLIP	-	2	Enquire
13	4T0898039B	COVER FOR SEAT ADJUSTMENT	4T0898039B COVER FOR SEAT ADJUSTMENT LEFT	-	-	Enquire
13	4T0898040B	COVER FOR SEAT ADJUSTMENT	4T0898040B COVER FOR SEAT ADJUSTMENT RIGHT	-	-	Enquire
