Name: FUEL PUMP
Rating: 4.8 (1 reviews)

FUEL PUMP of Lamborghini Lamborghini Huracan Evo Coupe

View All

Lamborghini Huracan Evo Coupe - FUEL PUMP

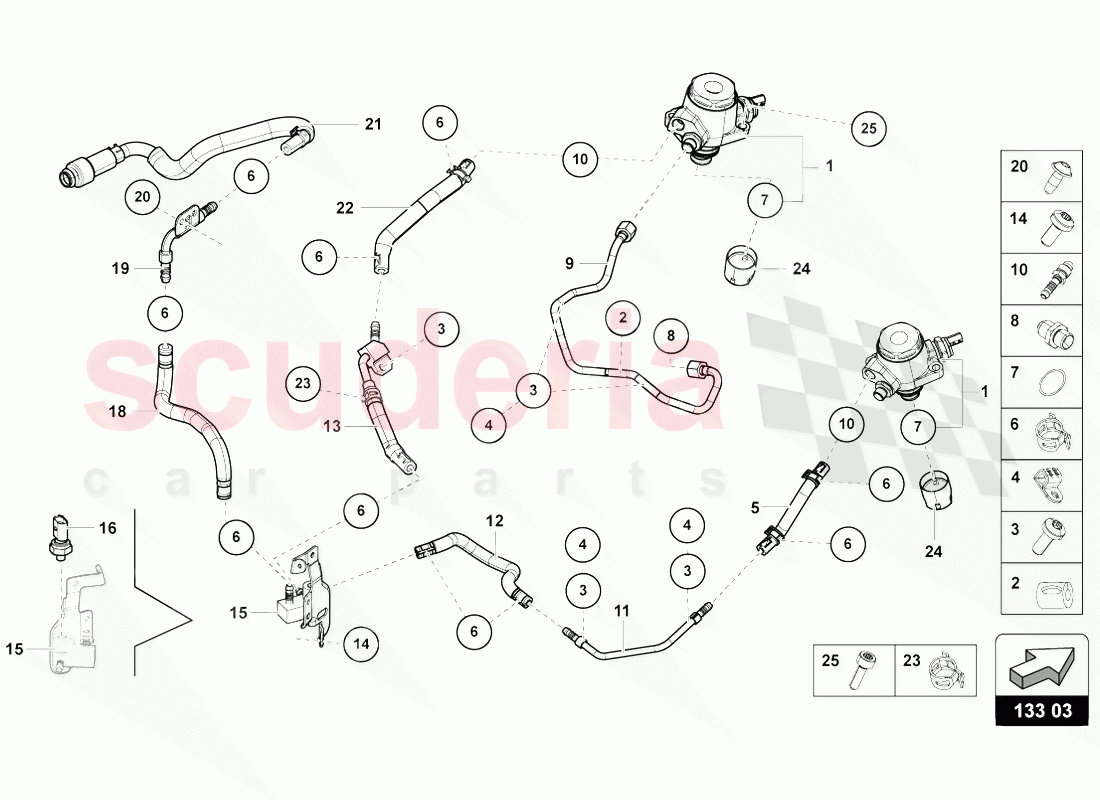

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7L127025S	FUEL PUMP	$649.74	To Order

Photo	Part No	Description	Price (each)	Stock
	79121129	SPACER BUSH	$3.16	To Order

Photo	Part No	Description	Price (each)	Stock
	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127411E	RETAINER FOR FUEL LINE	$14.11	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509CF	FUEL HOSE	$66.75	To Order
	7L127509CP	FUEL HOSE	$21.13	To Order

Photo	Part No	Description	Price (each)	Stock
	N90986501	SPRING BAND CLAMP	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT005184	O-RING	$6.72	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127065	ADAPTER	$13.10	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127501BQ	FUEL LINE	$165.32	To Order
	7L127501BJ	FUEL LINE	$96.38	To Order

Photo	Part No	Description	Price (each)	Stock
	6E127065C	DRAIN CONNECTION	$10.80	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509BR	FUEL LINE	$43.03	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509CG	FUEL HOSE	$89.13	To Order
	7L127509BE	FUEL PIPE (RIGHT)	$29.39	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509CH	FUEL HOSE	$282.93	To Order
	7L127509CD	FUEL PIPE (LEFT)	$196.92	To Order

Photo	Part No	Description	Price (each)	Stock
	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	$1.25	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127503AE	FUEL RAIL	$108.35	To Order

Photo	Part No	Description	Price (each)	Stock
	6E906051K	FUEL PRESSURE SENSOR	$132.87	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509CK	FUEL HOSE	$133.63	To Order
	7L127509AN	FUEL HOSE	$105.10	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127503AC	FUEL RAIL	$58.95	To Order

Photo	Part No	Description	Price (each)	Stock
	N90925202	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	7L201215C	FUEL LINE	$76.75	To Order
	7L201215A	FUEL PIPE	$78.91	To Order

Photo	Part No	Description	Price (each)	Stock
	7L127509CJ	FUEL HOSE	$18.84	To Order
	7L127509DG	FUEL HOSE	$32.81	To Order

Photo	Part No	Description	Price (each)	Stock
	N91020301	SPRING BAND CLAMP	$1.96	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109311	CAM FOLLOWER	$90.87	To Order

Photo	Part No	Description	Price (each)	Stock
	N91076601	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	$3.11	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	7L127025S	FUEL PUMP	7L127025S FUEL PUMP	$649.74	2
2	79121129	SPACER BUSH	79121129 SPACER BUSH 8X18X20	$3.16	-
3	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	N10451408 OVAL HEXAGON SOCKET HEAD BOLT M6X16	$1.47	4
4	7L127411E	RETAINER FOR FUEL LINE	7L127411E RETAINER FOR FUEL LINE	$14.11	4
5	7L127509CF	FUEL HOSE	7L127509CF FUEL HOSE C6A-RIGHT	$66.75	-
5	7L127509CP	FUEL HOSE	7L127509CP FUEL HOSE RIGHT	$21.13	1
6	N90986501	SPRING BAND CLAMP	N90986501 SPRING BAND CLAMP 14,5X12	$2.35 MSRP: ~~7.10~~ (66.9% off)	8
7	WHT005184	O-RING	WHT005184 O-RING 31X2	$6.72	2
8	7L127065	ADAPTER	7L127065 ADAPTER	$13.10	2
9	7L127501BQ	FUEL LINE	7L127501BQ FUEL LINE LEFT	$165.32	1
9	7L127501BJ	FUEL LINE	7L127501BJ FUEL LINE RIGHT	$96.38	1
10	6E127065C	DRAIN CONNECTION	6E127065C DRAIN CONNECTION	$10.80	2
11	7L127509BR	FUEL LINE	7L127509BR FUEL LINE RIGHT	$43.03	1
12	7L127509CG	FUEL HOSE	7L127509CG FUEL HOSE C6A-RIGHT	$89.13	-
12	7L127509BE	FUEL PIPE (RIGHT)	7L127509BE FUEL PIPE (RIGHT) 5 LAYER-RIGHT	$29.39	1
13	7L127509CH	FUEL HOSE	7L127509CH FUEL HOSE C6A-LEFT REAR	$282.93	-
13	7L127509CD	FUEL PIPE (LEFT)	7L127509CD FUEL PIPE (LEFT) LEFT	$196.92	1
14	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT M6X14	$1.25	2
15	7L127503AE	FUEL RAIL	7L127503AE FUEL RAIL CENTRE/REAR	$108.35	-
16	6E906051K	FUEL PRESSURE SENSOR	6E906051K FUEL PRESSURE SENSOR	$132.87	1
18	7L127509CK	FUEL HOSE	7L127509CK FUEL HOSE C6A-LEFT REAR	$133.63	-
18	7L127509AN	FUEL HOSE	7L127509AN FUEL HOSE LEFT	$105.10	1
19	7L127503AC	FUEL RAIL	7L127503AC FUEL RAIL	$58.95	1
20	N90925202	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	N90925202 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING 6X16	$0.58 MSRP: ~~7.31~~ (92.1% off)	2
21	7L201215C	FUEL LINE	7L201215C FUEL LINE C6A	$76.75	1
21	7L201215A	FUEL PIPE	7L201215A FUEL PIPE	$78.91	1
22	7L127509CJ	FUEL HOSE	7L127509CJ FUEL HOSE C6A-LEFT REAR	$18.84	1
22	7L127509DG	FUEL HOSE	7L127509DG FUEL HOSE LEFT	$32.81	1
23	N91020301	SPRING BAND CLAMP	N91020301 SPRING BAND CLAMP 14,5X12	$1.96 MSRP: ~~7.10~~ (72.4% off)	2
24	7L109311	CAM FOLLOWER	7L109311 CAM FOLLOWER	$90.87	2
25	N91076601	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N91076601 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X30-M8X30	$3.11 MSRP: ~~7.07~~ (56% off)	4
