SECONDARY AIR PUMP of Lamborghini Lamborghini Huracan Evo Coupe

View All

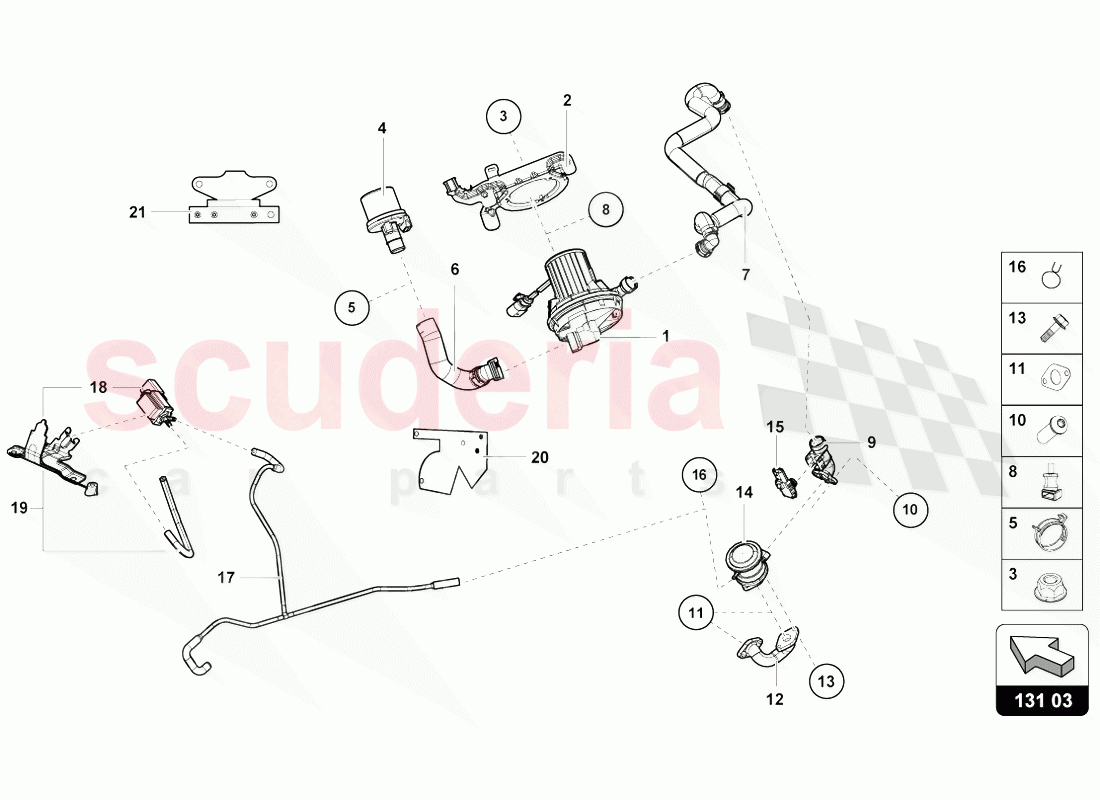

Lamborghini Huracan Evo Coupe - SECONDARY AIR PUMP

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4S0906601B	SECONDARY AIR PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0906407E	RETAINER FOR PUMP	Enquire	To Order
	4S0906408E	RETAINER FOR PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90488004	HEX. NUT WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	420906321	AIR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6A145917	SPRING BAND CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0131461	CONNECTING PIPE	Enquire	To Order
	4S0131461A	CONNECTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0131605D	CONNECTING PIPE	Enquire	To Order
	4S0131605C	CONNECTING PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6A133567F	STOP BUFFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L131119	Secondary Air Injection Pump Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6A131120D	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L131166E	ADAPTER	Enquire	To Order
	7L131166G	ADAPTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L131101N	COMBINATION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6L906052A	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10210501	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L131055H	PRESSURE CONTROLLINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SOLENOID VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L131425D	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L133106A	HEAT INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79133105B	HEAT INSULATION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4S0906601B	SECONDARY AIR PUMP	4S0906601B SECONDARY AIR PUMP FROM VIN ZHWED4ZF3JLA 10623	-	2	Enquire
2	4S0906407E	RETAINER FOR PUMP	4S0906407E RETAINER FOR PUMP LEFT	-	1	Enquire
2	4S0906408E	RETAINER FOR PUMP	4S0906408E RETAINER FOR PUMP RIGHT	-	1	Enquire
3	N90488004	HEX. NUT WITH WASHER	N90488004 HEX. NUT WITH WASHER M6	-	6	Enquire
4	420906321	AIR FILTER	420906321 AIR FILTER	-	2	Enquire
5	6A145917	SPRING BAND CLAMP	6A145917 SPRING BAND CLAMP 32X12	-	1	Enquire
6	4S0131461	CONNECTING PIPE	4S0131461 CONNECTING PIPE LEFT	-	1	Enquire
6	4S0131461A	CONNECTING PIPE	4S0131461A CONNECTING PIPE RIGHT	-	1	Enquire
7	4S0131605D	CONNECTING PIPE	4S0131605D CONNECTING PIPE LEFT	-	1	Enquire
7	4S0131605C	CONNECTING PIPE	4S0131605C CONNECTING PIPE RIGHT	-	1	Enquire
8	6A133567F	STOP BUFFER	6A133567F STOP BUFFER	-	6	Enquire
9	7L131119	Secondary Air Injection Pump Hose	7L131119 Secondary Air Injection Pump Hose	-	2	Enquire
10	N10451408	OVAL HEXAGON SOCKET HEAD BOLT	N10451408 OVAL HEXAGON SOCKET HEAD BOLT M6X16	-	14	Enquire
11	6A131120D	SEAL	6A131120D SEAL	-	4	Enquire
12	7L131166E	ADAPTER	7L131166E ADAPTER LEFT	-	1	Enquire
12	7L131166G	ADAPTER	7L131166G ADAPTER RIGHT	-	1	Enquire
13	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT M6X20	-	8	Enquire
14	7L131101N	COMBINATION VALVE	7L131101N COMBINATION VALVE	-	-	Enquire
15	6L906052A	PRESSURE SENSOR	6L906052A PRESSURE SENSOR	-	2	Enquire
16	N10210501	CLAMP	N10210501 CLAMP 9,5X5X0,5	-	2	Enquire
17	7L131055H	PRESSURE CONTROLLINE	7L131055H PRESSURE CONTROLLINE	-	1	Enquire
18	-	SOLENOID VALVE	SOLENOID VALVE NOT AVAILABLE-BLACK	-	-	Enquire
19	7L131425D	SUPPORT	7L131425D SUPPORT	-	1	Enquire
20	7L133106A	HEAT INSULATION	7L133106A HEAT INSULATION	-	2	Enquire
21	79133105B	HEAT INSULATION	79133105B HEAT INSULATION	-	2	Enquire
