HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT PIECES of Lamborghini Lamborghini Huracan Evo Coupe

View All

Lamborghini Huracan Evo Coupe - HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT PIECES

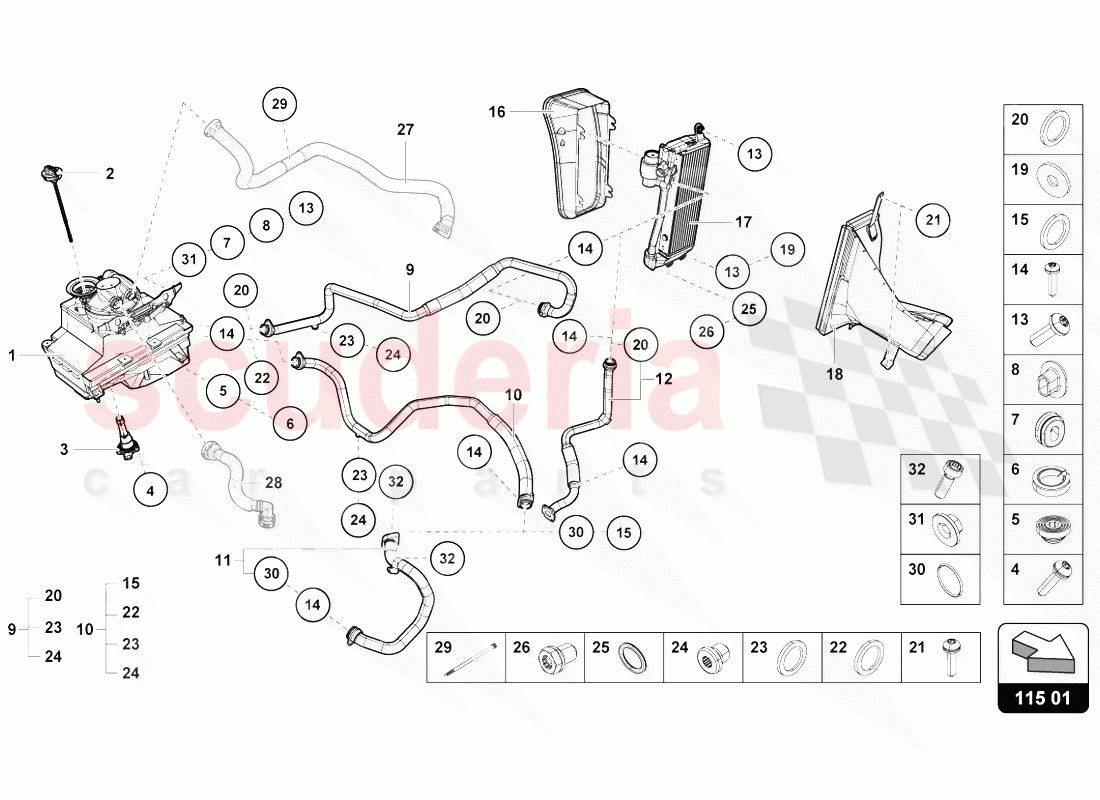

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4S0115373D	OIL CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	420103485E	End Cap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79907660A	OIL LEVEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91185901	Hexagon Socket Flat Head Bolt (m6x28)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0129669C	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0129697	COVER CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0129669C	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8K0129734C	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0115689F	OIL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0115687C	OIL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0115223A	OIL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0117413F	OIL HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007432	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0317025	AIR GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4S0117015A	Oil Cooler	Enquire	To Order
	4S0117015B	Oil Cooler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0117335B	AIR GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01167026	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90958101	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90900401	HEX SOCKET OVAL HEAD COLLARED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90295401	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138128	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10637901	SEALING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138157	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	36103193	OIL DRAIN PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BREATHER LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BREATHER LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CABLE TIES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007432	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91205301	HEXAGON FLANGE NUT, SELF-LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10517303	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4S0115373D	OIL CONTAINER	4S0115373D OIL CONTAINER	-	1	Enquire
2	420103485E	End Cap	420103485E End Cap	-	1	Enquire
3	79907660A	OIL LEVEL SENSOR	79907660A OIL LEVEL SENSOR	-	1	Enquire
4	N91185901	Hexagon Socket Flat Head Bolt (m6x28)	N91185901 Hexagon Socket Flat Head Bolt (m6x28) M6X28	-	11	Enquire
5	8K0129669C	Grommet	8K0129669C Grommet	-	1	Enquire
6	8K0129697	COVER CAP	8K0129697 COVER CAP	-	1	Enquire
7	8K0129669C	Grommet	8K0129669C Grommet	-	1	Enquire
8	8K0129734C	BUSH	8K0129734C BUSH	-	1	Enquire
9	4S0115689F	OIL PIPE	4S0115689F OIL PIPE	-	1	Enquire
10	4S0115687C	OIL HOSE	4S0115687C OIL HOSE	-	1	Enquire
11	4S0115223A	OIL HOSE	4S0115223A OIL HOSE	-	1	Enquire
12	4S0117413F	OIL HOSE	4S0117413F OIL HOSE	-	1	Enquire
13	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING M6X28	-	5	Enquire
14	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT NOT AVAILABLE-M6X20	-	1	Enquire
15	WHT007432	O-RING	WHT007432 O-RING 30X2	-	2	Enquire
16	4T0317025	AIR GUIDE	4T0317025 AIR GUIDE RIGHT	-	1	Enquire
17	4S0117015A	Oil Cooler	4S0117015A Oil Cooler	-	1	Enquire
17	4S0117015B	Oil Cooler	4S0117015B Oil Cooler	-	1	Enquire
18	4T0117335B	AIR GUIDE	4T0117335B AIR GUIDE LEFT	-	-	Enquire
19	N01167026	WASHER	N01167026 WASHER 8,4X24X2	-	1	Enquire
20	N90958101	O-RING	N90958101 O-RING 26X3	-	4	Enquire
21	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED M6X20	-	3	Enquire
22	N90295401	O-RING	N90295401 O-RING 29,2X3	-	4	Enquire
23	N0138128	SEAL RING	N0138128 SEAL RING 12X15,5X1,5	-	1	Enquire
24	N10637901	SEALING PLUG	N10637901 SEALING PLUG M12X1,5X12	-	2	Enquire
25	N0138157	SEAL RING	N0138157 SEAL RING 14X20	-	1	Enquire
26	36103193	OIL DRAIN PLUG	36103193 OIL DRAIN PLUG M14X1,5X19	-	-	Enquire
27	-	BREATHER LINE	BREATHER LINE 103-070,5	-	-	Enquire
28	-	BREATHER LINE	BREATHER LINE 103-070,6	-	-	Enquire
29	-	CABLE TIES	CABLE TIES 7,6X302 103-070,10	-	-	Enquire
30	WHT007432	O-RING	WHT007432 O-RING 30X2 WHT 007 432	-	2	Enquire
31	N91205301	HEXAGON FLANGE NUT, SELF-LOCKING	N91205301 HEXAGON FLANGE NUT, SELF-LOCKING M6	-	2	Enquire
32	N10517303	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10517303 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X22	-	1	Enquire
33	7L117021M	OIL COOLER	7L117021M OIL COOLER	-	1	Enquire
33	-	OIL COOLER	OIL COOLER SEE ILLUSTRATION : 117.01	-	-	Enquire
34	N90958101	O-RING	N90958101 O-RING 26X3	-	4	Enquire
