OIL FILTER ELEMENT of Lamborghini Lamborghini Huracan Evo Coupe

View All

Lamborghini Huracan Evo Coupe - OIL FILTER ELEMENT

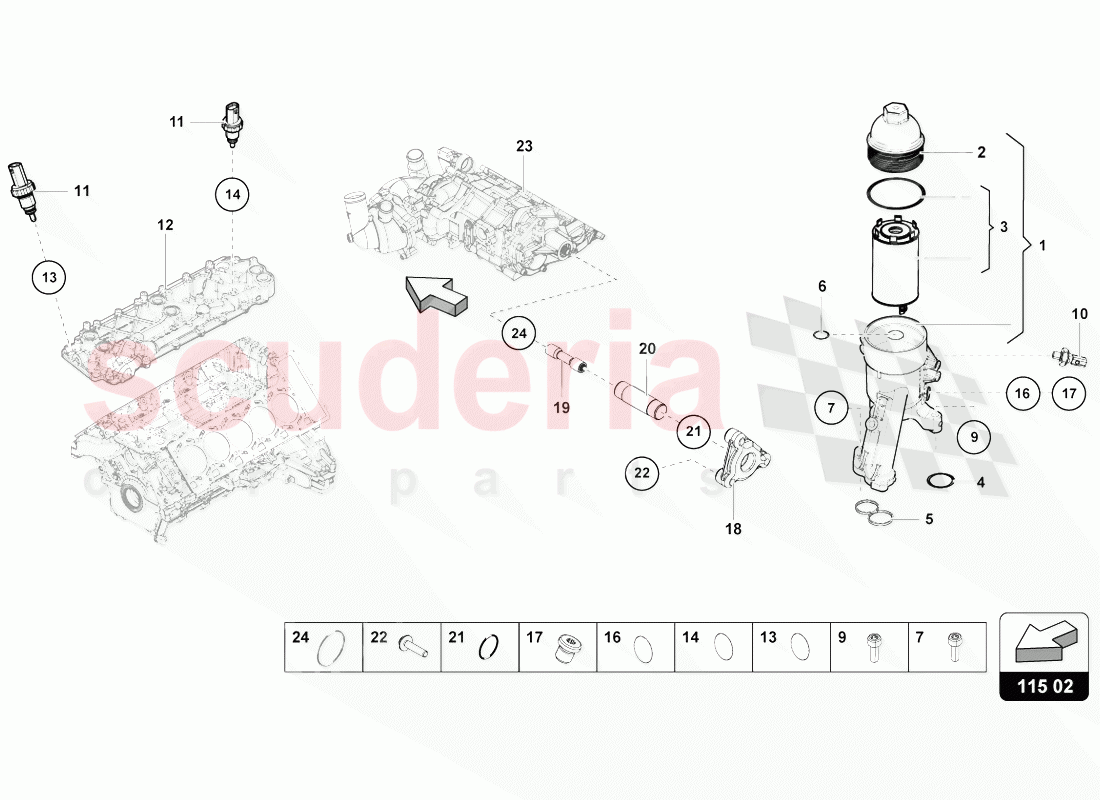

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7L115401F	OIL FILTER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79115433D	END CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79198405E	FILTER ELEMENT WITH GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10538201	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79103121BE	Oil Filter Housing Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138063	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10622101	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91124501	HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79919081	OIL PRESSURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	59919523F	TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		REMOVABLE LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002287B	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002287C	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138063	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91119401	SEALING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103707B	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L115138H	COUPLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L115467B	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT008700	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10704501	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7L115401F	OIL FILTER BRACKET	7L115401F OIL FILTER BRACKET	-	1	Enquire
2	79115433D	END CAP	79115433D END CAP	-	1	Enquire
3	79198405E	FILTER ELEMENT WITH GASKET	79198405E FILTER ELEMENT WITH GASKET	-	1	Enquire
4	N10538201	O-RING	N10538201 O-RING 19X3,55	-	1	Enquire
5	79103121BE	Oil Filter Housing Gasket	79103121BE Oil Filter Housing Gasket	-	1	Enquire
6	N0138063	SEAL RING	N0138063 SEAL RING 10X14	-	1	Enquire
7	N10622101	OVAL HEXAGON SOCKET HEAD BOLT	N10622101 OVAL HEXAGON SOCKET HEAD BOLT M6X65	-	2	Enquire
8	-	HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT. PIECES	HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT. PIECES SEE ILLUSTRATION :- 115-010	-	-	Enquire
9	N91124501	HEXAGON SOCKET HEAD BOLT	N91124501 HEXAGON SOCKET HEAD BOLT M8X40	-	2	Enquire
10	79919081	OIL PRESSURE SWITCH	79919081 OIL PRESSURE SWITCH 1,2-1,6BAR 1 PIN BLACK M10X1	-	-	Enquire
11	59919523F	TEMPERATURE SENSOR	59919523F TEMPERATURE SENSOR	-	2	Enquire
12	-	REMOVABLE LID	REMOVABLE LID SEE ILLUSTRATION :- 100-010	-	-	Enquire
13	WHT002287B	O-RING	WHT002287B O-RING FOR WATER TEMPERATURE SENSOR-5,6X2 BLACK	-	1	Enquire
14	WHT002287C	O-RING	WHT002287C O-RING FOR OIL TEMPERATURE SENSOR-5,6X2	-	1	Enquire
16	N0138063	SEAL RING	N0138063 SEAL RING 10X14	-	1	Enquire
17	N91119401	SEALING PLUG	N91119401 SEALING PLUG M10X1X10	-	2	Enquire
18	7L103707B	COVER	7L103707B COVER	-	1	Enquire
19	7L115138H	COUPLING	7L115138H COUPLING	-	1	Enquire
20	7L115467B	PIPE	7L115467B PIPE	-	1	Enquire
21	WHT008700	O-RING	WHT008700 O-RING 27X2,5	-	1	Enquire
22	N10704501	OVAL HEXAGON SOCKET HEAD BOLT	N10704501 OVAL HEXAGON SOCKET HEAD BOLT M6X35	-	1	Enquire
23	-	OIL PUMP	OIL PUMP SEE ILLUSTRATION :- 121-070	-	-	Enquire
24	-	O-RING	O-RING SEE ILLUSTRATION :-27X3,5 121-070	-	-	Enquire
