COMPLETE CYLINDR HEAD of Lamborghini Lamborghini Huracan Evo Coupe

View All

Lamborghini Huracan Evo Coupe - COMPLETE CYLINDR HEAD

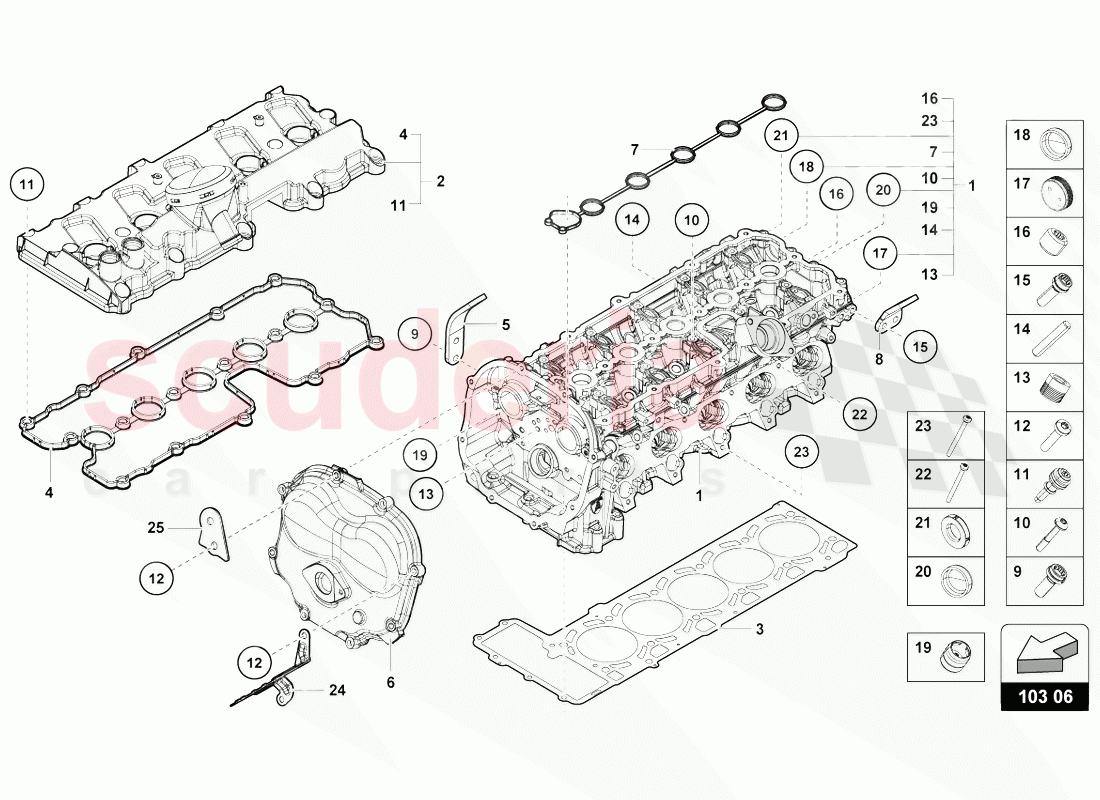

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7L103063BH	CYLINDER HEAD, COMPLETE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103471AC	CYLINDER HEAD COVER WITH GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103383BA	CYLINDER HEAD GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103483J	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103390M	TRANSPORTATION SHACKLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109285K	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103649A	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103390R	TRANSPORTATION SHACKLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91084201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91127602	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6B103831J	HEXAGON SOCKET FLAT HEAD BOLT WITH GUIDE SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91068001	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L109291	BUNGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0145555	THREADED PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91139201	SCREW WITH INT. SERRATIONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10630302	SEALING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6B103113C	END CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0119078	END CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79103175F	NON-RETURN VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	36103113A	END CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6D103377	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT001411	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10720801	ROUND-HEAD SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ARM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7L103063BH	CYLINDER HEAD, COMPLETE LH	7L103063BH CYLINDER HEAD, COMPLETE LH CYLINDERS 6-10 LEFT	-	1	Enquire
2	7L103471AC	CYLINDER HEAD COVER WITH GASKET	7L103471AC CYLINDER HEAD COVER WITH GASKET LEFT	-	-	Enquire
3	7L103383BA	CYLINDER HEAD GASKET	7L103383BA CYLINDER HEAD GASKET CYLINDERS 6-10 LEFT	-	1	Enquire
4	7L103483J	SEAL	7L103483J SEAL	-	1	Enquire
5	7L103390M	TRANSPORTATION SHACKLE	7L103390M TRANSPORTATION SHACKLE	-	1	Enquire
6	7L109285K	COVER	7L109285K COVER LEFT	-	1	Enquire
7	7L103649A	SEAL	7L103649A SEAL CYLINDERS 6-10	-	1	Enquire
8	7L103390R	TRANSPORTATION SHACKLE	7L103390R TRANSPORTATION SHACKLE	-	1	Enquire
9	N91084201	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91084201 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) M8X25	-	1	Enquire
10	N91127602	HEXAGON SOCKET FLAT HEAD BOLT	N91127602 HEXAGON SOCKET FLAT HEAD BOLT M6X35X16	-	1	Enquire
11	6B103831J	HEXAGON SOCKET FLAT HEAD BOLT WITH GUIDE SLEEVE	6B103831J HEXAGON SOCKET FLAT HEAD BOLT WITH GUIDE SLEEVE	-	8	Enquire
12	N91068001	HEXAGON SOCKET FLAT HEAD BOLT	N91068001 HEXAGON SOCKET FLAT HEAD BOLT M6X28	-	8	Enquire
13	7L109291	BUNGS	7L109291 BUNGS	-	1	Enquire
14	N0145555	THREADED PIN	N0145555 THREADED PIN M8X44	-	1	Enquire
15	N91139201	SCREW WITH INT. SERRATIONS	N91139201 SCREW WITH INT. SERRATIONS M8X20	-	1	Enquire
16	N10630302	SEALING PLUG	N10630302 SEALING PLUG M10X1	-	1	Enquire
17	6B103113C	END CAP	6B103113C END CAP 26	-	1	Enquire
18	N0119078	END CAP	N0119078 END CAP 14	-	1	Enquire
19	79103175F	NON-RETURN VALVE	79103175F NON-RETURN VALVE	-	-	Enquire
20	36103113A	END CAP	36103113A END CAP 36,6	-	1	Enquire
21	6D103377	WASHER	6D103377 WASHER	-	1	Enquire
22	WHT001411	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	WHT001411 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10X138	-	1	Enquire
23	N10720801	ROUND-HEAD SCREW	N10720801 ROUND-HEAD SCREW	-	1	Enquire
24	-	ARM	ARM NOT AVAILABLE	-	-	Enquire
25	-	ARM	ARM NOT AVAILABLE	-	-	Enquire
