ENGINE BLOCK of Lamborghini Lamborghini Huracan Evo Coupe

View All

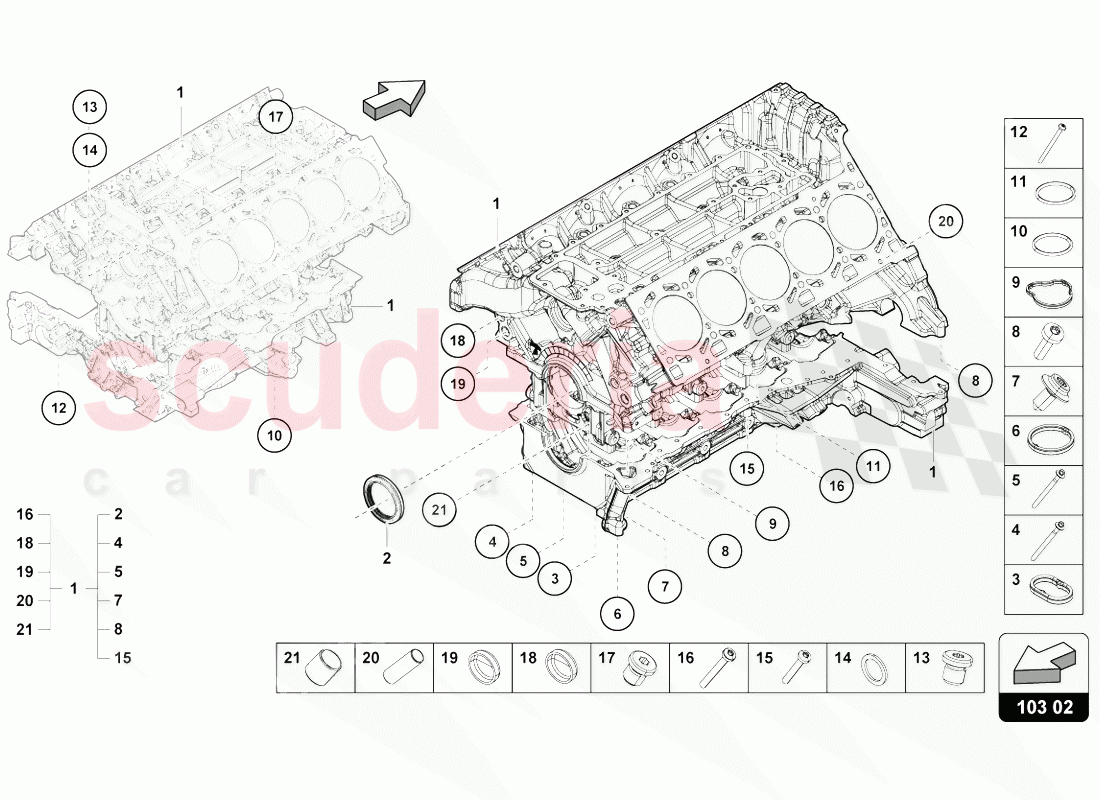

Lamborghini Huracan Evo Coupe - ENGINE BLOCK

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7L103011CA	CRANKCASE HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103051D	SHAFT OIL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103121S	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003328	BEARING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT007752	BEARING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103121D	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90989102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79103121AM	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90713202	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91008501	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91097501	HEXAGON SOCKET FLAT HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91119401	SEALING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138063	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10582103	OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10470703	ROUND HD. SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103271A	CHOKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N01190310	END CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0119078	END CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		CENTRING PIN	Enquire	To Order
	55105277	SPRING PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	77115143D	CENTRE SLEEVE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7L103011CA	CRANKCASE HOUSING	7L103011CA CRANKCASE HOUSING	-	1	Enquire
2	7L103051D	SHAFT OIL SEAL	7L103051D SHAFT OIL SEAL 55X74X10	-	1	Enquire
3	7L103121S	SEAL	7L103121S SEAL	-	1	Enquire
4	WHT003328	BEARING SCREW	WHT003328 BEARING SCREW M10X116	-	12	Enquire
5	WHT007752	BEARING SCREW	WHT007752 BEARING SCREW 10X130X95	-	12	Enquire
6	7L103121D	SEAL	7L103121D SEAL	-	1	Enquire
7	N90989102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N90989102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M8X16	-	1	Enquire
8	N10124306	HEXAGON SOCKET FLAT HEAD BOLT	N10124306 HEXAGON SOCKET FLAT HEAD BOLT M6X20	-	1	Enquire
9	79103121AM	SEAL	79103121AM SEAL	-	1	Enquire
10	N90713202	SEAL RING	N90713202 SEAL RING 31X3	-	1	Enquire
11	N91008501	O-RING	N91008501 O-RING 35X3	-	1	Enquire
12	N91097501	HEXAGON SOCKET FLAT HEAD BOLT	N91097501 HEXAGON SOCKET FLAT HEAD BOLT M6X85	-	1	Enquire
13	N91119401	SEALING PLUG	N91119401 SEALING PLUG M10X1X10	-	1	Enquire
14	N0138063	SEAL RING	N0138063 SEAL RING 10X14	-	1	Enquire
15	N10582103	OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD	N10582103 OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD M6X40	-	1	Enquire
16	N10470703	ROUND HD. SCREW	N10470703 ROUND HD. SCREW M6X50	-	1	Enquire
17	7L103271A	CHOKE	7L103271A CHOKE	-	1	Enquire
18	N01190310	END CAP	N01190310 END CAP	-	1	Enquire
19	N0119078	END CAP	N0119078 END CAP 14	-	1	Enquire
20	-	CENTRING PIN	CENTRING PIN	-	-	Enquire
20	55105277	SPRING PIN	55105277 SPRING PIN	-	-	Enquire
21	77115143D	CENTRE SLEEVE	77115143D CENTRE SLEEVE 10,4X12X12	-	1	Enquire
