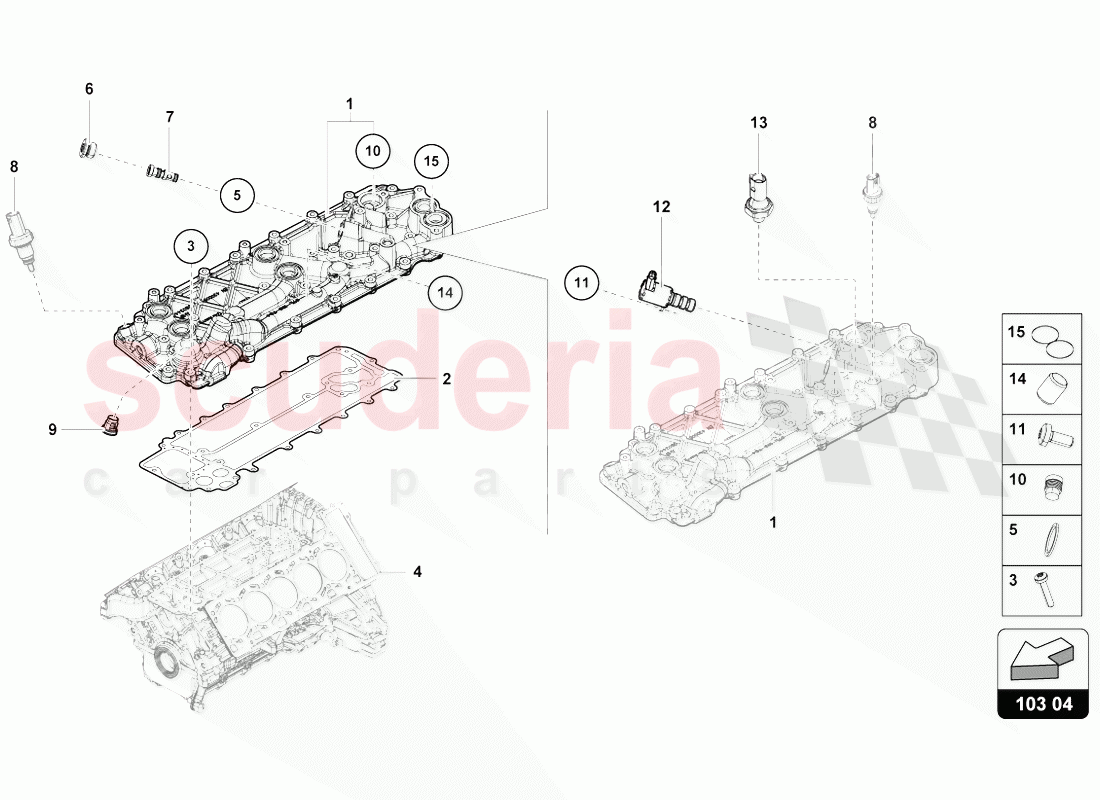

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7L103704S	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L103161J	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10156206	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		ENGINE BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N0138272	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91199901	SEALING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79103208	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		TEMPERATURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79117409F	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		BUNGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		PRESSURISING VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79919081D	OIL PRESSURE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N91020803	DOWEL SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79103121BE	Oil Filter Housing Gasket	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7L103704S	COVER	7L103704S COVER	-	-	Enquire
2	7L103161J	SEAL	7L103161J SEAL	-	1	Enquire
3	N10156206	OVAL HEXAGON SOCKET HEAD BOLT	N10156206 OVAL HEXAGON SOCKET HEAD BOLT M6X30	-	1	Enquire
4	-	ENGINE BLOCK	ENGINE BLOCK SEE ILLUSTRATION :- 103-020	-	-	Enquire
5	N0138272	SEAL RING	N0138272 SEAL RING 22X27	-	1	Enquire
6	N91199901	SEALING PLUG	N91199901 SEALING PLUG M20X1,5	-	1	Enquire
7	79103208	VALVE	79103208 VALVE	-	-	Enquire
8	-	TEMPERATURE SENSOR	TEMPERATURE SENSOR SEE ILLUSTRATION AND REF.:- 115-020,11	-	-	Enquire
9	79117409F	VALVE	79117409F VALVE	-	1	Enquire
10	-	BUNGS	BUNGS SUPPLY WITH REF.1	-	-	Enquire
11	-	OVAL HEXAGON SOCKET HEAD BOLT	OVAL HEXAGON SOCKET HEAD BOLT NOT AVAILABLE-M6X14	-	-	Enquire
12	-	PRESSURISING VALVE	PRESSURISING VALVE NOT AVAILABLE	-	-	Enquire
13	79919081D	OIL PRESSURE SWITCH	79919081D OIL PRESSURE SWITCH TURQUOISE(GR.) 0,3-0,6BAR 1 PIN	-	1	Enquire
14	N91020803	DOWEL SLEEVE	N91020803 DOWEL SLEEVE 8M7X10	-	1	Enquire
15	79103121BE	Oil Filter Housing Gasket	79103121BE Oil Filter Housing Gasket	-	1	Enquire
16	WHT006493A	O-RING	WHT006493A O-RING 20.4X2.4-N	-	4	Enquire
