OIL PUMP of Lamborghini Lamborghini Huracan Evo Coupe

View All

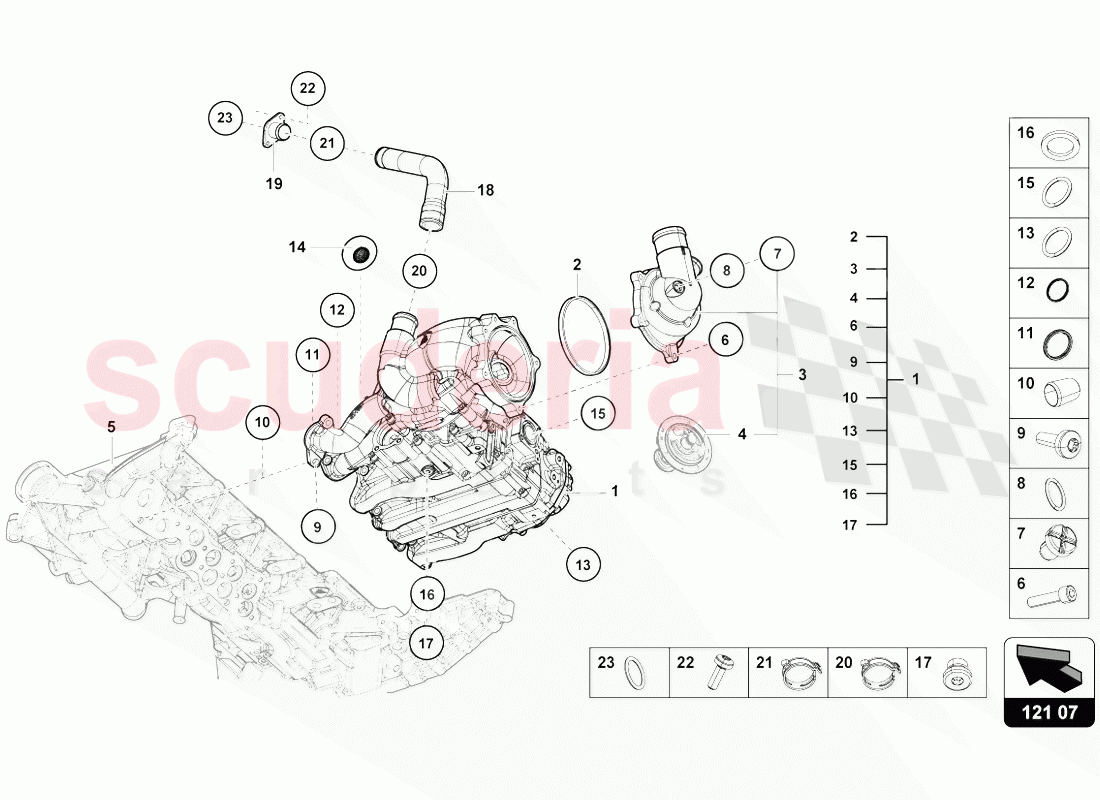

Lamborghini Huracan Evo Coupe - OIL PUMP

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7L115009AR	OIL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	79121119C	SEAL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	79121115BE	COOLANT REGULATOR HOUSING WITH THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		OIL SUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003868	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003874	SEAL BOLT WITH SEALING RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
		SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10700201	HEXAGON SOCKET HEAD BOLT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N91020803	DOWEL SLEEVE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7L121119B	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7L115446A	ENGINE OIL PUMP SEAL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT003731	O-RING 27 X 3.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7L103081	OIL STRAINER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WHT003732	O-RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0138115	SEAL RING	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N0160243	SEALING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7L121057T	COOLANT HOSE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7L121133M	WATER CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6B145917	SPRING BAND CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90687101	SPRING BAND CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90544501	O-RING	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	7L115009AR	OIL PUMP	7L115009AR OIL PUMP	-	-	Enquire
2	79121119C	SEAL IN STOCK	79121119C SEAL IN STOCK	-	1	Enquire
3	79121115BE	COOLANT REGULATOR HOUSING WITH THERMOSTAT	79121115BE COOLANT REGULATOR HOUSING WITH THERMOSTAT	-	1	Enquire
4	-	THERMOSTAT	THERMOSTAT CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 3- 3	-	-	Enquire
5	-	OIL SUMP	OIL SUMP SEE ILLUSTRATION :- 103-010	-	-	Enquire
6	WHT003868	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	WHT003868 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD M6X25	-	1	Enquire
7	WHT003874	SEAL BOLT WITH SEALING RING	WHT003874 SEAL BOLT WITH SEALING RING M10X1 PLASTIC	-	1	Enquire
8	-	SEAL	SEAL CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 7- 7	-	-	Enquire
9	N10700201	HEXAGON SOCKET HEAD BOLT IN STOCK	N10700201 HEXAGON SOCKET HEAD BOLT M6X22 IN STOCK	-	1	Enquire
10	N91020803	DOWEL SLEEVE IN STOCK	N91020803 DOWEL SLEEVE 8M7X10 IN STOCK	-	1	Enquire
11	7L121119B	O-RING IN STOCK	7L121119B O-RING 32X32X3,5 IN STOCK	-	1	Enquire
12	7L115446A	ENGINE OIL PUMP SEAL IN STOCK	7L115446A ENGINE OIL PUMP SEAL 26X26X3,5 IN STOCK	-	1	Enquire
13	WHT003731	O-RING 27 X 3.5 IN STOCK	WHT003731 O-RING 27 X 3.5 27X3,5 IN STOCK	-	2	Enquire
14	7L103081	OIL STRAINER IN STOCK	7L103081 OIL STRAINER IN STOCK	-	8	Enquire
15	WHT003732	O-RING IN STOCK	WHT003732 O-RING 24X3,5 IN STOCK	-	8	Enquire
16	N0138115	SEAL RING IN STOCK	N0138115 SEAL RING 10X13,5 IN STOCK	-	3	Enquire
17	N0160243	SEALING PLUG	N0160243 SEALING PLUG M10X1	-	3	Enquire
18	7L121057T	COOLANT HOSE IN STOCK	7L121057T COOLANT HOSE IN STOCK	-	1	Enquire
19	7L121133M	WATER CONNECTION	7L121133M WATER CONNECTION	-	1	Enquire
20	6B145917	SPRING BAND CLAMP IN STOCK	6B145917 SPRING BAND CLAMP 35X12 IN STOCK	-	1	Enquire
21	N90687101	SPRING BAND CLAMP IN STOCK	N90687101 SPRING BAND CLAMP 32X12 IN STOCK	-	1	Enquire
22	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE IN STOCK	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE M6X18 IN STOCK	-	2	Enquire
23	N90544501	O-RING IN STOCK	N90544501 O-RING 27X3 IN STOCK	-	1	Enquire
