FRONT TUNNEL - TRIMS of Lamborghini Lamborghini Huracan LP610 Coupe

View All

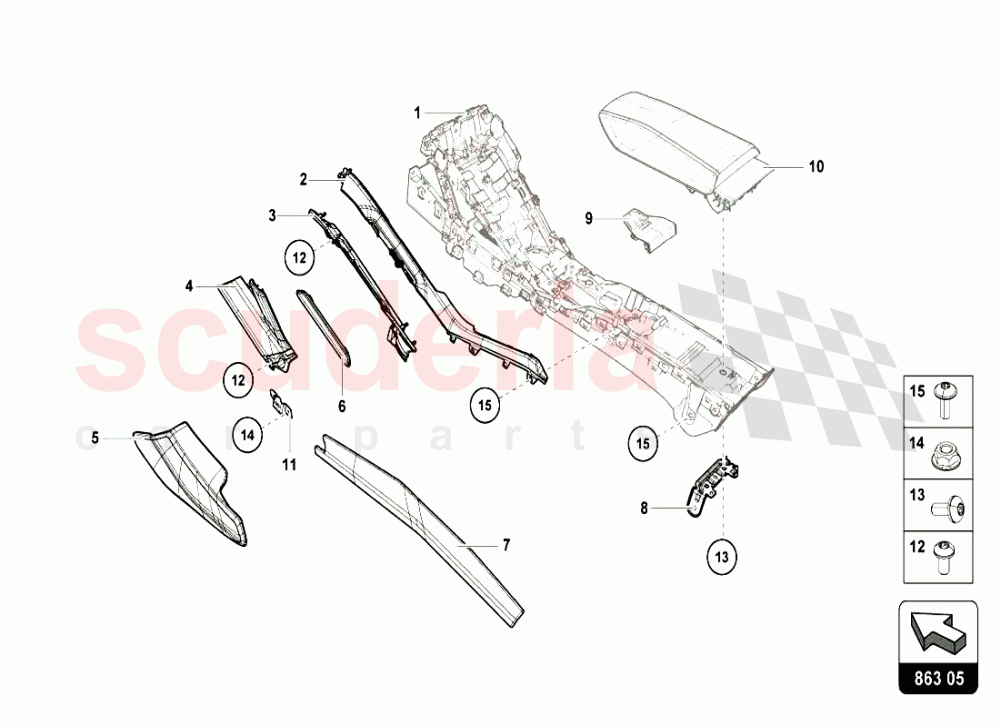

Lamborghini Huracan LP610 Coupe - FRONT TUNNEL - TRIMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4T0863240F	CENTRE CONSOLE STRUCTURE	4T0863240F CENTRE CONSOLE STRUCTURE	-	1	Enquire
002	4T0857717	LH SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857717 LH SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
002	4T0857718	RH SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857718 RH SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
003	4T0863051	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863051 SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
003	4T0863052	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863052 SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
004	4T0863513	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863513 SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
004	4T0863514	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863514 SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
005	4T0857785	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857785 SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
005	4T0857785A	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857785A SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
005	4T0857786A	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857786A SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
005	4T0857786	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0857786 SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
006	4T0863970C	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863970C SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
006	4T0863969C	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863969C SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
006	4T0863969B	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863969B SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
006	4T0863970B	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863970B SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
007	4T0863488	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863488 SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
007	4T0863487	SIDE PANEL TRIM FOR CENTRE CONSOLE	4T0863487 SIDE PANEL TRIM FOR CENTRE CONSOLE	-	1	Enquire
008	4T0863615	TUNNEL FIXING BRACKET, CENTER	4T0863615 TUNNEL FIXING BRACKET, CENTER	-	1	Enquire
011	4T0863345	RETAINER FOR CENTRE CONSOLE	4T0863345 RETAINER FOR CENTRE CONSOLE	-	1	Enquire
011	4T0863346	RETAINER FOR CENTRE CONSOLE	4T0863346 RETAINER FOR CENTRE CONSOLE	-	1	Enquire
012	N90944603	OVAL HEXAGON SOCKET HEAD BOLT	N90944603 OVAL HEXAGON SOCKET HEAD BOLT	-	16	Enquire
014	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	4	Enquire
015	N10738101	HEX SOCKET HEAD BOLT (COMBI)	N10738101 HEX SOCKET HEAD BOLT (COMBI)	-	16	Enquire
