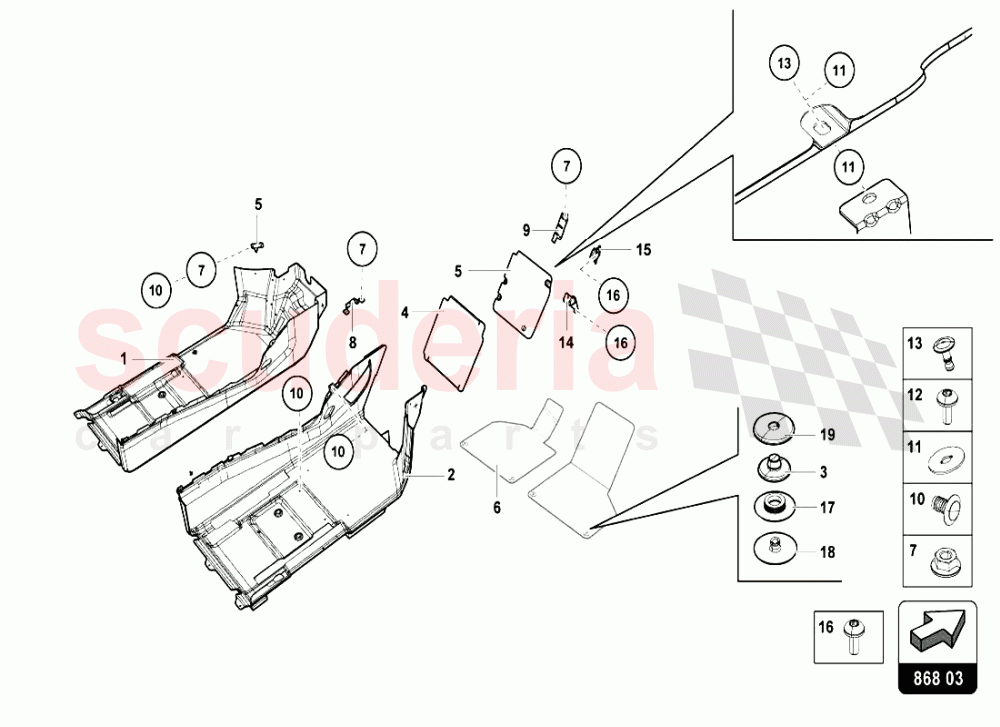

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4T1863367A	LH PLATFORM COVERING PANEL	4T1863367A LH PLATFORM COVERING PANEL	-	1	Enquire
001	4T2863367	LH Floor Covering Carpet (RHD)	4T2863367 LH Floor Covering Carpet (RHD) Black	-	1	Enquire
002	4T1863368A	RH PLATFORM COVERING PANEL	4T1863368A RH PLATFORM COVERING PANEL	-	1	Enquire
002	4T2863368	RH Floor Covering Carpet (RHD)	4T2863368 RH Floor Covering Carpet (RHD) Black	-	1	Enquire
003	8E0864523	RETAINER FOR CAP	8E0864523 RETAINER FOR CAP	-	1	Enquire
004	4T1864463A	TRIM	4T1864463A TRIM	-	1	Enquire
005	4T1864420A	FOOT REST	4T1864420A FOOT REST	-	1	Enquire
007	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT	-	12	Enquire
008	4T1863253A	BRACKET	4T1863253A BRACKET	-	2	Enquire
009	4T1864776	ARM	4T1864776 ARM	-	1	Enquire
010	447857909	EXPANSION CLIP	447857909 EXPANSION CLIP	-	9	Enquire
011	4A0805137A	RETAINING WASHER	4A0805137A RETAINING WASHER	-	8	Enquire
012	N91096701	OVAL HEXAGON SOCKET HEAD BOLT	N91096701 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
013	8D0805121	GRIP PIN	8D0805121 GRIP PIN	-	4	Enquire
014	4T0864781	BRACKET FOR FOOTREST	4T0864781 BRACKET FOR FOOTREST	-	1	Enquire
015	4T1864200B	BRACKET	4T1864200B BRACKET	-	1	Enquire
016	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT	-	6	Enquire
017	8E0864229	COVER CAP	8E0864229 COVER CAP	-	1	Enquire
018	8E0864227	BRACKET	8E0864227 BRACKET	-	1	Enquire
019	8E0864521	COVER CAP	8E0864521 COVER CAP	-	1	Enquire
