Lamborghini Huracan LP610 Coupe - REAR FRAME INNER ELEMENTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

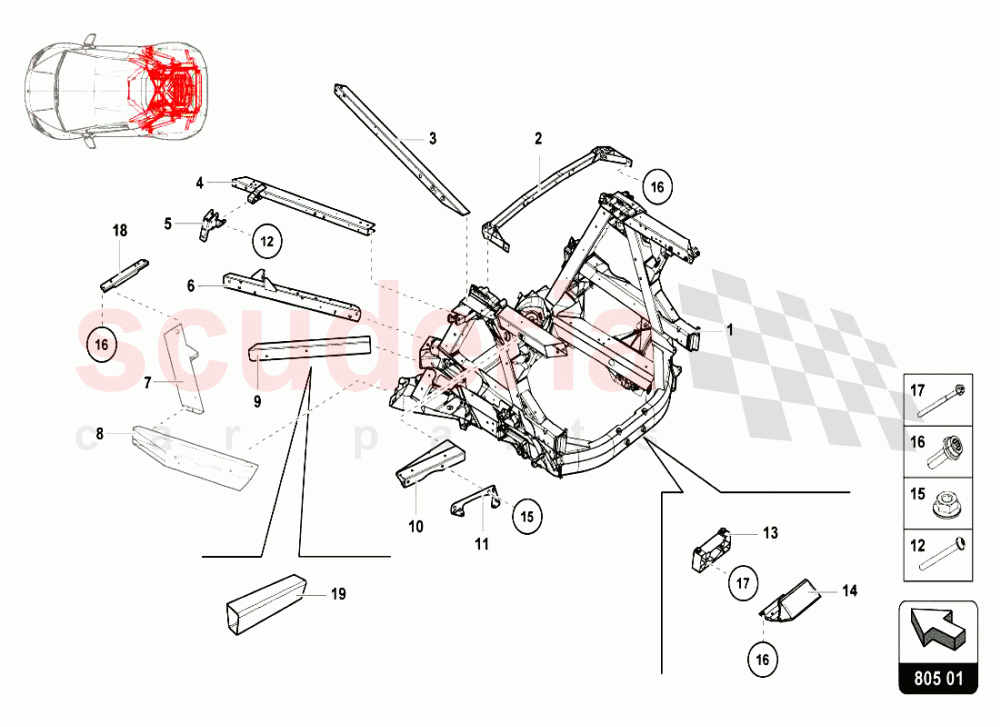

REAR FRAME INNER ELEMENTS of Lamborghini Lamborghini Huracan LP610 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4T8813031K
FRAME 		- 1 Enquire
002 4S0813441C
DIAGONAL CROSS MEMBER (CONTACT YOUR AREA MANAGER) 		- 2 Enquire
003 4T8817361C
LH TIE ROD (CONTACT YOUR AREA MANAGER) 		- 1 Enquire
003 4T8817362C
RH TIE ROD (CONTACT YOUR AREA MANAGER) 		- 1 Enquire
004 4T8810244E
RH TIE ROD (CONTACT YOUR AREA MANAGER) 		- 1 Enquire
004 4T8810243D
LH TIE ROD (CONTACT YOUR AREA MANAGER) 		- 1 Enquire
005 4T0813499B
ADAPTER 		- 1 Enquire
005 4T0813500B
ADAPTER 		- 1 Enquire
006 4T8814202D
SUPPORT 		- 1 Enquire
006 4T8814201E
SUPPORT 		- 1 Enquire
009 4S0813253H
LH TIE ROD 		- 1 Enquire
009 4S0813254H
RH TIE ROD (CONTACT YOUR AREA MANAGER) 		- 1 Enquire
010 4T0810252B
RH BRACKET 		- 1 Enquire
010 4T0810251B
CARRIER 		- 1 Enquire
011 4T0810440B
BRACKET 		- 1 Enquire
011 4T0810439B
BRACKET 		- 1 Enquire
012 N91097301
HEXAGON SOCKET FLAT HEAD BOLT 		- 8 Enquire
013 4S0813857B
REINFORCEMENT 		- 1 Enquire
014 4T0813483B
ADAPTER (CONTACT YOUR AREA MANAGER) 		- 1 Enquire
015 N01508210
HEXAGON COLLAR NUT 		- 4 Enquire
016 N91128001
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		- 6 Enquire
017 N10683301
HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO) 		- 2 Enquire
018 4S0813239C
BRACE 		- 1 Enquire
019 4S0813945K
SLEEVE 		- 2 Enquire
