Find Your Part

View All

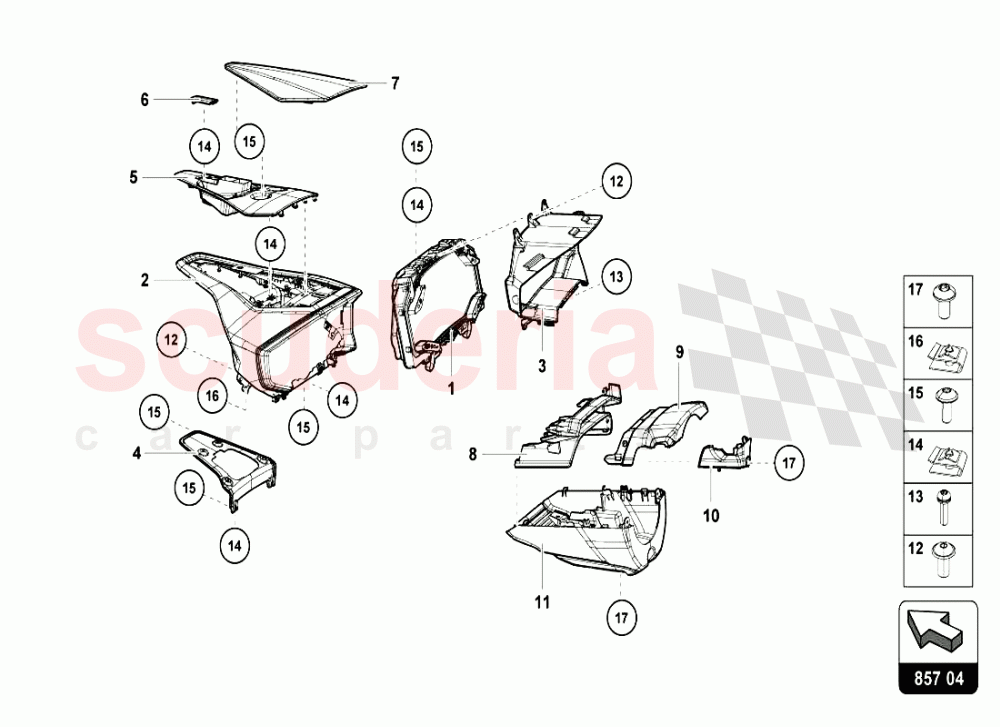

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4T0920900B	COMBI-INSTRUMENT	4T0920900B COMBI-INSTRUMENT	-	1	Enquire
001	4T0920900C	COMBI-INSTRUMENT	4T0920900C COMBI-INSTRUMENT	-	1	Enquire
002	4T0858291	COVER	4T0858291 COVER	-	1	Enquire
003	4T0857059A	FRAME	4T0857059A FRAME	-	1	Enquire
004	4T0858225	COVER COMBI-INSTRUMENT	4T0858225 COVER COMBI-INSTRUMENT	-	1	Enquire
005	4T0858900	COVER COMBI-INSTRUMENT	4T0858900 COVER COMBI-INSTRUMENT	-	1	Enquire
006	4T0857932	COVER COMBI-INSTRUMENT	4T0857932 COVER COMBI-INSTRUMENT	-	1	Enquire
007	4T0858189	COVER	4T0858189 COVER	-	1	Enquire
008	4T0857192A	TRIM	4T0857192A TRIM	-	1	Enquire
009	4T0953515A	TRIM UPPER PART	4T0953515A TRIM UPPER PART	-	1	Enquire
010	4T0953561	CAMSHAFT BEARING SHELL	4T0953561 CAMSHAFT BEARING SHELL	-	1	Enquire
010	4T0953562	CAMSHAFT BEARING SHELL	4T0953562 CAMSHAFT BEARING SHELL	-	1	Enquire
011	4T0953512	TRIM LOWER SECTION	4T0953512 TRIM LOWER SECTION	-	1	Enquire
012	N10621601	HEX SOCKET OVAL HEAD COLLARED	N10621601 HEX SOCKET OVAL HEAD COLLARED	-	8	Enquire
013	N91085101	SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	N91085101 SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	-	10	Enquire
014	N90282501	SPEED NUT	N90282501 SPEED NUT	-	10	Enquire
015	N91136801	HEXAGON SOCKET HEAD PANEL BOLT	N91136801 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire
016	N90526602	SPEED NUT	N90526602 SPEED NUT	-	2	Enquire
017	N90986805	SCREW ST4,2X16	N90986805 SCREW ST4,2X16	-	4	Enquire
