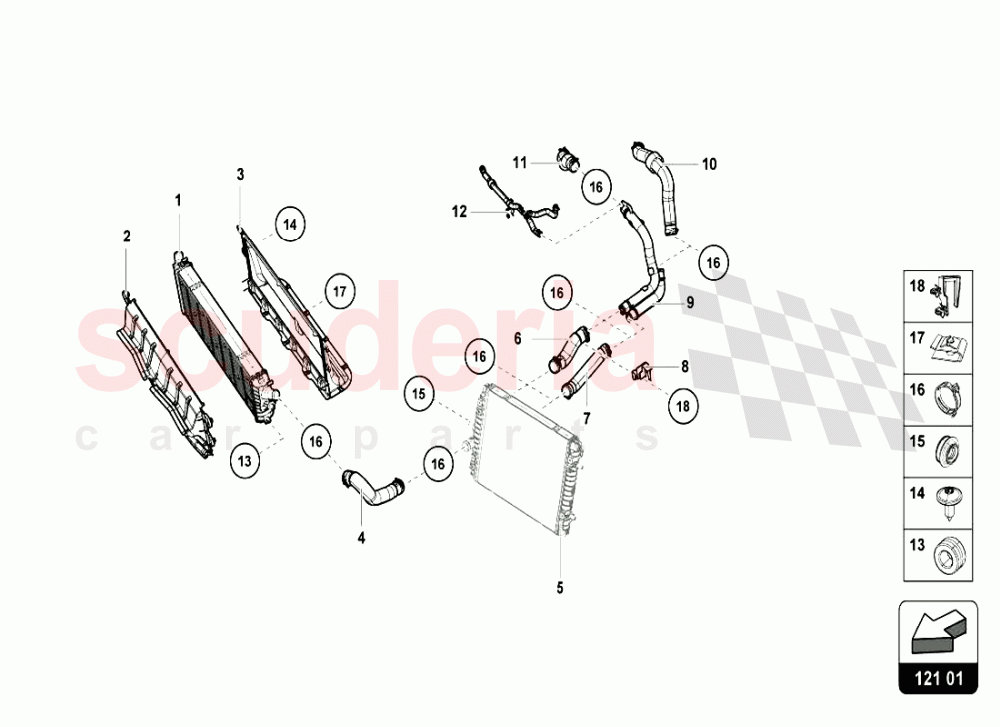

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4S0121254B	COOLER FOR COOLANT	4S0121254B COOLER FOR COOLANT	-	1	Enquire

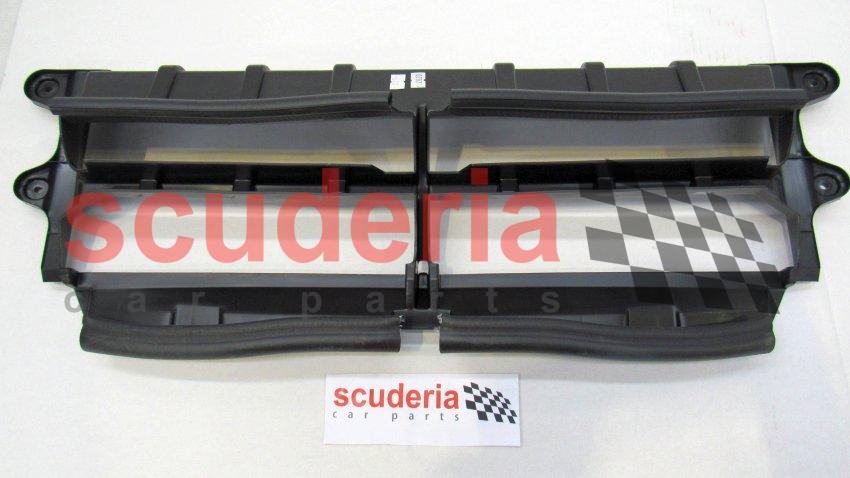

002	4T0121333A	Air Guide	4T0121333A Air Guide	-	1	Enquire

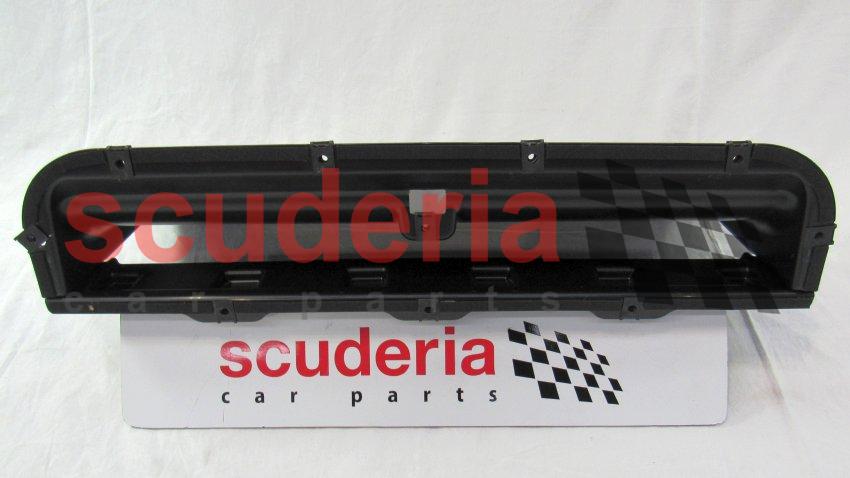

003	4T0121334A	Air Guide	4T0121334A Air Guide	-	1	Enquire
004	4S0121059D	COOLANT HOSE	4S0121059D COOLANT HOSE	-	1	Enquire
004	4S0121073D	COOLANT HOSE	4S0121073D COOLANT HOSE	-	1	Enquire
006	4S0121054B	COOLANT HOSE	4S0121054B COOLANT HOSE	-	1	Enquire
006	4S0121055B	COOLANT HOSE	4S0121055B COOLANT HOSE	-	1	Enquire
007	4S0121057B	COOLANT HOSE	4S0121057B COOLANT HOSE	-	1	Enquire
007	4S0121069B	COOLANT HOSE	4S0121069B COOLANT HOSE	-	1	Enquire
008	4S0121261	BRACKET	4S0121261 BRACKET	-	2	Enquire
009	4S0121065E	COOLANT PIPE	4S0121065E COOLANT PIPE	-	1	Enquire
009	4S0121064F	COOLANT PIPE	4S0121064F COOLANT PIPE	-	1	Enquire
010	4S0121063C	COOLANT HOSE	4S0121063C COOLANT HOSE	-	1	Enquire
010	4S0121088C	COOLANT HOSE	4S0121088C COOLANT HOSE	-	1	Enquire
011	4S0121053C	LH PIPE	4S0121053C LH PIPE	-	1	Enquire
011	4S0121104C	COOLANT HOSE	4S0121104C COOLANT HOSE	-	1	Enquire
012	4S0122447B	PIPE	4S0122447B PIPE	-	1	Enquire
013	4D0317867A	RUBBER BUSH	4D0317867A RUBBER BUSH	-	4	Enquire
014	N90918702	HEXAGON SOCKET HEAD PANEL BOLT	N90918702 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire

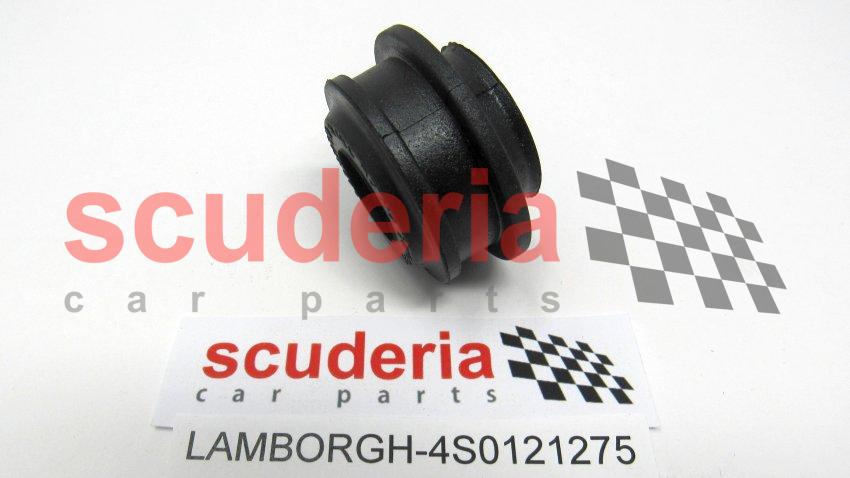

015	4S0121275	RUBBER BUSH	4S0121275 RUBBER BUSH	-	4	Enquire
016	N90687201	SPRING BAND CLAMP	N90687201 SPRING BAND CLAMP	-	2	Enquire
017	N90688703	SPEED NUT	N90688703 SPEED NUT	-	10	Enquire
